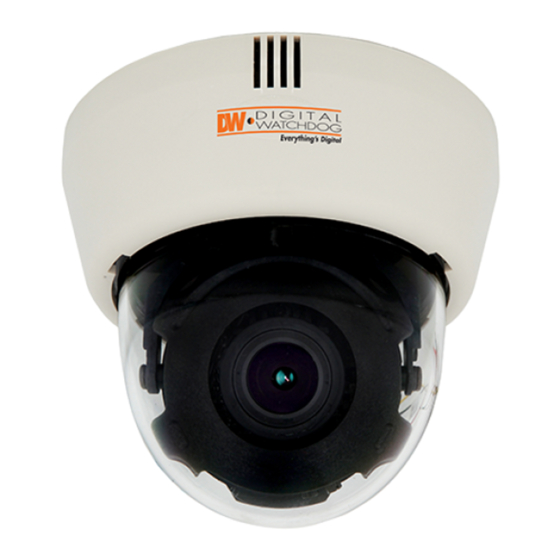

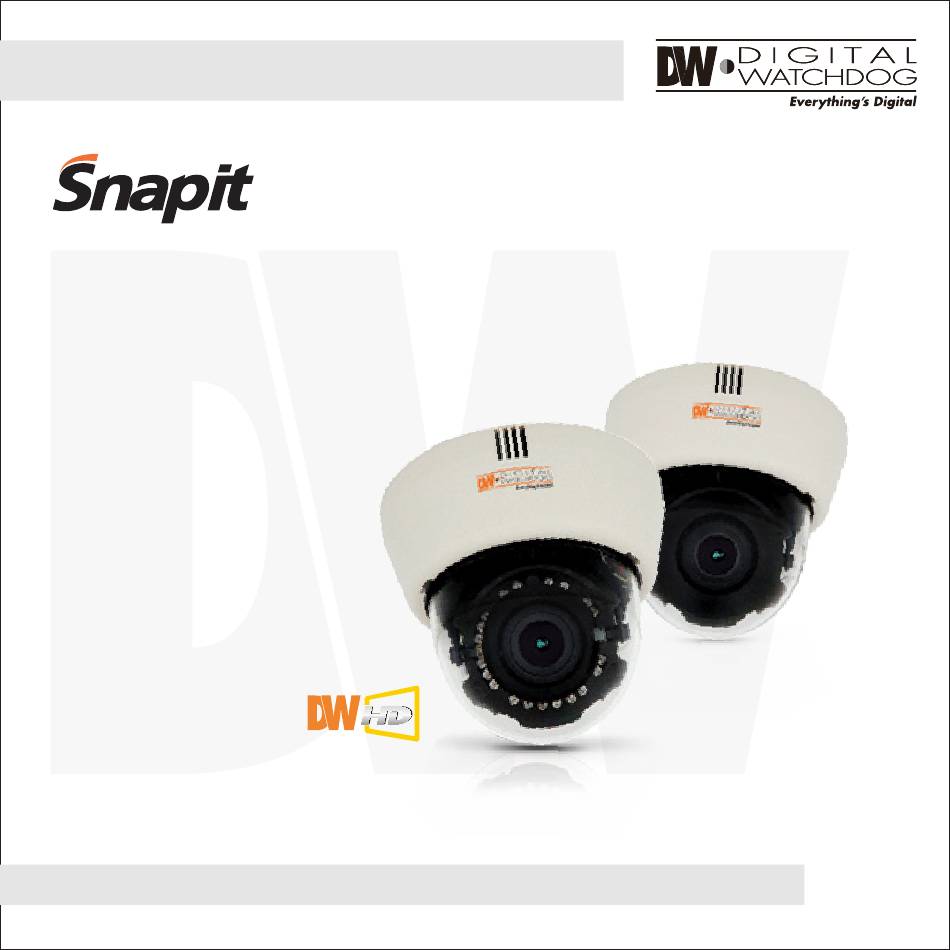

- Page 1 HD-SDI Indoor Dome Camera DWC-HD421D DWC-HD421TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12132012...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Included Accessories Easy Installations Connecting to Monitors Controling the camera’s OSD Remotely Adjusting the Camera’s Lens Adjusting the 3-Axis Gimbal Camera OSD Menu and Glossary 14-26 Troubleshooting Warranty Information 28-29 Specifications 30-31...
- Page 4 FEATURES* Sony 1/2.8” CMOS Sensor Highest Resolution 2.1 Megapixels 720P / 1080P Mode Selectable 3.5~16mm Auto-Focus Lens 4.5X Optical Zoom Double Shutter WDR (Wide Dynamic Range) at 15fps 70ft Range IR with Intelligent Camera Sync [HD421TIR] Electronic Day and Night [HD421D] True Day and Night [HD421TIR] AGC / BLC / AWB 3D DNR (3D Digital Noise Reduction)
- Page 5 PART & DESCRIPTIONS* Lens Power input Connctor 12VDC Voltage BNC (HD-SDI) + RS485 Bubble Dome Upper Case Camera Control Board 2nd Video Connector Mounting Screws w/o IR...
- Page 6 DIMENSIONS IN MILLIMETERS (IN)* Surface Mount 108(4.25”) 40.5(1.59”) 96.8(3.81”) 56.3(2.21”) Top View 108(4.25”) (3.5”)
- Page 7 INSIDE THE BOX* Included with Snapit Indoor Dome Camera User Manual Mounting Template 2 Machine Screw and 2 Dry Wall Anchors Secondary Video-BNC Cable...
- Page 8 SURFACE MOUNT INSTALLATION INSTRUCTIONS* Squeeze the sides of the Use the camera’s mounting Drill holes into the drywall and camera and separate the template or your camera to insert the drywall mounts into camera module from the mark the holes as required. the holes.
- Page 9 WALL MOUNT INSTALLATION INSTRUCTIONS (optional)* Check to see all parts are in Use the mount to mark the Secure the wall mount to the the box. pilot holes are required. Drill wall using the mounting holes into the drywall and screws.
- Page 10 CONNECTING TO MONITORS* Use the diagram below to connect the camera to a Monitor or CRT Monitor. DC 12V / AC 24V CCTV Monitor NO IR Second Video Output Monitor 300.0mm(11.8”) Power Connection: 12VDC & 24VDC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration.
- Page 11 1. Go to the camera’s OSD menu and select ‘Property’. Make sure the camera is set to NDT-AUX Protocol. 2. If you have multiple Digital Watchdog HD-SDI cameras connected to the same VMAX HD, be sure to assign each camera a different ID. See page 15 for more information.
- Page 12 ADJUSTING THE CAMERA LENS* Adjusting the Auto Focus Lens Push the OSD joystick ‘UP’ to zoom-in. Keep holding the joystick until the desired zoom is achieved. Release the joystick to stop zooming. Once the joystick is released, the camera will begin auto-focusing to adjust to the new zoom position.
- Page 13 ADJUSTING 3-AXIS GIMBAL* The Gimbal mechanism yields maximum rotation and placement as show below. NO IR NO IR Rotation 360 Panning 360 NO IR Tilting 90 Tilting 75...
- Page 14 MODULE OSD MENU* PROPERTY EXPOSURE LENS BRIGHTNESS LENS TYPE CAMERA ID 0~20 MANUAL, DC, AF 0~255 SHUTTER MODE TITLE OUTDOOR,INDOOR/FLK,Deblur120,Deblur240 AUTO, MANUAL (1/30~1/60000) OPTIC ZOOM TELE, WIDE DISPLAY FOCUS MODE MANUAL, AUTO NON, ID,, TITLE OFF, x2, x3, x4 FOCUSING PROTOCOL FAR, NEAR TIMER...
- Page 15 You can select to display the camera’s ID or title on the video by selecting the appropriate option. PROTOCOL NDT-AUX If you are connecting the camera to Digital Watchdog’s VMAXHD DVR, use the default Protocol- NDT-AUX. See page 11 for more information. BAUDRATE ----------------- 9600 is default.
- Page 16 EXPOSURE BRIGHTNESS 2 EXPOSURE 0~20 You can adjust the brightness of the image. The higher the number, the brighter the image. BRIGHTNESS Default is 10. SHUTTER AUTO SHUTTER AUTO The shutter’s speed adjusts automatically based on RETURN the light available. MANUAL The shutter speed can be adjusted between 1/30 ~ 1/60000.
- Page 17 LENS LENS TYPE 3 LENS Auto Focus Lens. AF LENS Auto-iris Varifocal lens. DC LENS LENS TYHPE AF LENS MANUAL Manual iris or Fixed board lens. MODE DEBLUR120 OPTIC ZOOM FOCUS MODE AUTO TIMER OFF 00:00 TDN SYNC 3 LENS If DC or Manual modes are selected, RETURN the following menu options will be disabled:...
- Page 18 LENS FOCUS MODE When using Auto Focus Lens, Focus is adjusted automatically. If AUTO is selected, AUTO the camera will adjust the focus after every optical zoom adjustment. You can also set the camera to automatically adjust the focus based on a timer, from once every minute, up to every ten (10) minutes.
- Page 19 FUNCTION DZOOM 0~112 Digital Zoom function zooms to the center of the 4 FUNCTION image by default. set the zoom level from 0~112. DZOOM AUTO AUTO White Balance is automatically adjusted. PRIVACY MIDDLE AUTO_H White Balance is automatically adjusted when MOTION the Color temperature is high.
- Page 20 FUNCTION PRIVACY You can hide some parts of the screen for privacy purposes. A total of 30 privacy masks OFF / ON are available. ZONE NO 0~29 PRIVACY ZONE OP Zone Display. ON/OFF ZONE NO 0~29 X-POS X-Position (0~57) ZONE OP ON/OFF Y-POS Y-Position (0~31)
- Page 21 FUNCTION Digital Noise Reduction reduces the noise/distortion on the screen in low light conditions, allowing a clear image at night. Sellect OFF / LOW / MIDDLE / HIGH. MOTION If selecting ON, define the following menu: OFF/ON Define the size an area with motion has to be to trigger the camera’s motion detection. RESOLUTION The higher the number, the smaller the area with motion has to be to trigger the camera’s motion detection.
- Page 22 IMAGE CHROMA 0~20 Chroma sets the quality of the color that embraces both 5 IMAGE hue and saturation. White, black and grays have 0 chroma. The higher numbers accentuate the brighter colors in the CHROMA image. Default is 7. SHARPNESS MIRROR SHARPNESS FLIP...
- Page 23 IMAGE CONTRAST NORMAL/ HIGH/ HIGHEST You can adjust the contrast level - Normal, High, and Highest. COLOR SET Color 1 is the default. If the color reproduction on the monitor is not COLOR 1,2,3 to your satisfactory, try changing the color mode to Color2 or Color3. HUE CONTROL 50 ~180.
- Page 24 WDR/BLC MAX-DR (Digital Wide Dynamic Range) OFF/ ON Digital Wide Dynamic Range provides clear 6 WDR/BLC images when a strong backlighting is present. MODE MAX DR MODE BLC - Back Light Compensation. See OFF/ BLC/ WDR WDR_WGT information below. BLC OSD BLC POS-X WDR - Wide Dynamic Range (If selected, camera BLC POS-Y...
- Page 25 DAY&NIGHT TDN MODE 7 DAY&NIGHT AUTO The camera switches between day and night COLOR automatically depending on the level of light. BW to C C to BW COLOR The camera always stays in day mode (Color). CDS SET BW LOW RETURN The camera always stays in night mode (B/W).
- Page 26 SETUP DEFECT DET OFF / ON Dead Pixel Cancellation automatically 8 SETUP removes defective pixels in real time. Consult your installer for setup and additional DEFECT DET information. 2.0M MODE 1080P 720P MODE 60/50FPS 2.0M MODE LANGUAGE 1080P / 720P The camera offers the selction of 2 resolutions: TDN TEST TEST OFF...
- Page 27 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current. FOR OUT-OF-FOCUS VIDEO Check the clear dome cover and the lens for dirt or fingerprints.
- Page 28 WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial two (2) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
- Page 29 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
- Page 30 SPECIFICATIONS* VIDEO Image Sensor 1/2.8” CMOS Sensor Total Pixels 2000 (H) x 1241 (V) Synchronization Internal Horizontal Resolution 2.1 Megapixels (1920 x 1080) at 30fps Minimum Illumination F1.6 (30IRE): 0.10 Lux [Color] F1.6 (30IRE): 0.01 Lux [B&W] S/N Ratio 50dB (AGC off) Video Output HD-SDI, CVBS Analog LENS...
- Page 31 SPECIFICATIONS* OPERATIONAL Digital Noise Reduction OFF / LOW / MIDDLE / HIGH Digital zoom 1~112 Chroma 0-20 Sharpness 0-10 Mirror & Flip OFF / ON Highlight Mask OFF / ON WDR / BLC OFF / WDR / BLC Language ENGLISH / CHINESE / GERMAN ENVIRONMENTAL Operating Temperature C ~ 50...
- Page 32 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm EST...
