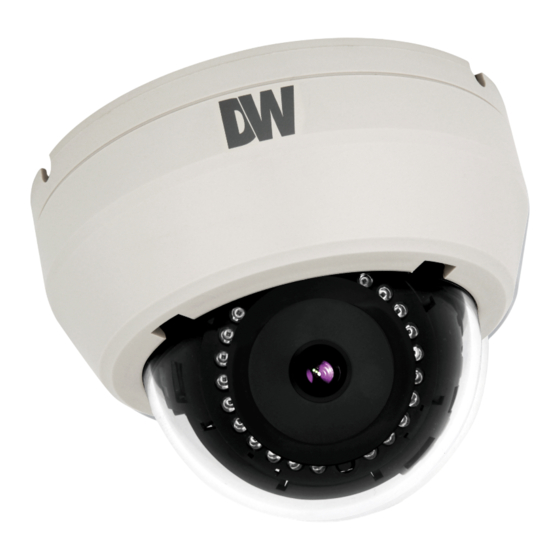

- Page 1 HD-SDI Indoor Dome Camera DWC-HD321M4TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12112013...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 Table of Contents TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Easy Installation Connecting to Monitors Adjusting the Camera Gimbal Troubleshooting Warranty Information 12-13 Specifications...
- Page 4 FEATURES* 1/2.8” CMOS Sensor Highest Resolution 2.1 Megapixels (HD-SDI) 4.0mm Fixed Lens 12x Digital Zoom 50ft Range IR with Intelligent Camera Sync TDN (True Day and Night/IR Cut Filter) WDR (Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction)
-
Page 5: Parts & Description
PARTS & DESCRIPTION* Bottom Case Camera Gimbal Upper Case Dome Cover... - Page 6 DIMENSIONS IN MILLIMETERS (IN)* 120.0 4.72” 89.0 3.50” 81.0 3.19”...
-
Page 7: Inside The Box
Mounting Template 2 Machine Screws and 2 Dry Wall Anchors Secondary Video-BNC Cable HD-SDI Indoor Dome Camera DWC-HD321M4TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. -
Page 8: Easy Installation
EASY INSTALLATION* 1. To detach the camera’s cover dome from the camera’s module press the small buttons located at the sides of the cover dome. While pressing the buttons, disconnect the cover dome from the camera’s base module. 2. Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling. -
Page 9: Connecting To Monitors
CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC High Definition Monitor Second Video Output Monitor Power Connection - 12VDC. All cameras are equipped with a second video output for on-site configuration. -
Page 10: Adjusting The Camera Gimbal
ADJUSTING THE CAMERA GIMBAL* Non IR Non IR Rotation 360º Panning 360º Non IR Tilting 55º IR LED Tilting 65º... - Page 11 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
-
Page 12: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial two (2) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge. -
Page 13: Limits & Exclusions
This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street... -
Page 14: Specifications
SPECIFICATIONS* VIDEO Image Sensor 1/2.8” CMOS Sensor Total Pixels 2000 (H) x 1241 (V) Synchronization Internal Resolution 2.1 Megapixels (1920 x 1080) at 30fps Minimum Illumination 0.0 Lux (IR On) S/N Ratio 50dB (AGC off) Video Output HD-SDI LENS Focal Length 4.0mm Lens Type Fixed Lens... - Page 15 MEMO*...
- Page 16 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
