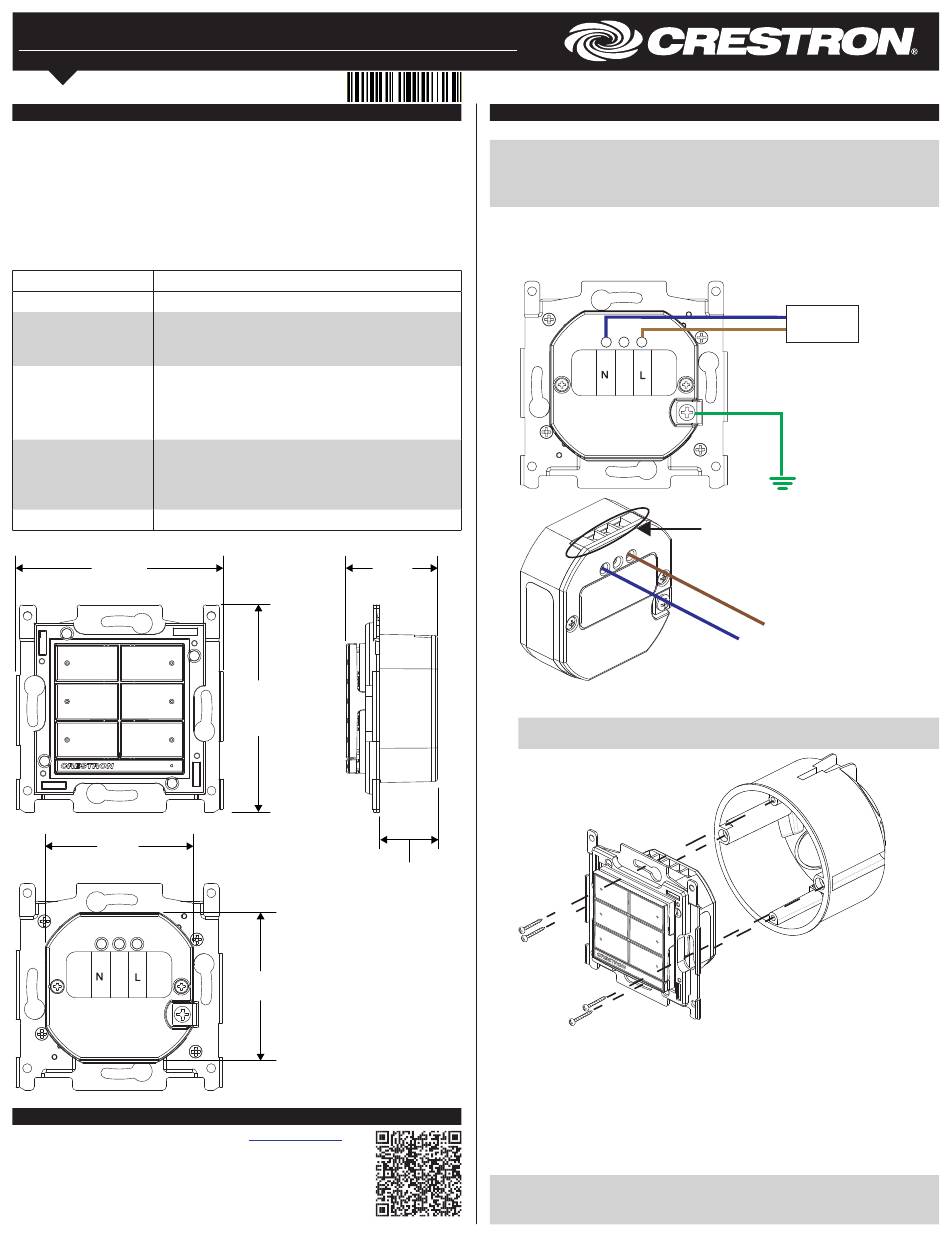

Crestron CLWI-KPLEX Installation Manual

CLWI-KPLEX
In-Wall Wireless Lighting Keypad, 230 Vac
Installation Guide

Description

The Crestron ® CLWI-KPLEX is a companion keypad for CLWI- line of dimmers and
switches. It provides lighting and audio control from multiple locations around the home or
office. It is designed to recall scenes, dim loads up and down, and adjust the volume using
the customizable button layout.

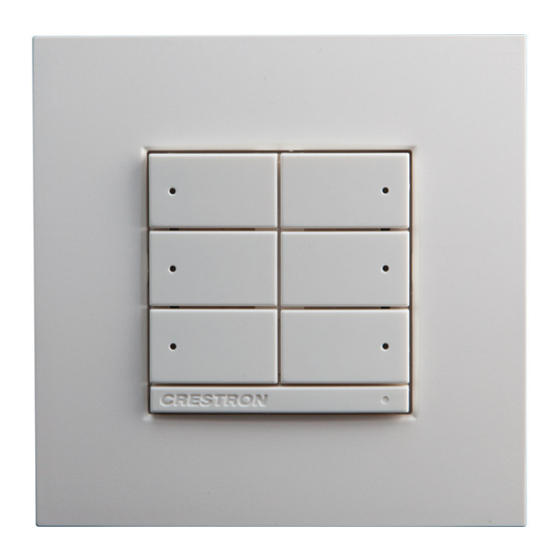

The CLWI-KPLEX is shipped with a six-button configuration preinstalled on the keypad.
The button configuration can be replaced with the included large rocker switch or any
combination of up to two adjacent half-size rocker buttons or triple-button pads. All
buttons are configurable for up to three discrete functions via single-press, double-press,
and press-and-hold functionality.
The specifications for the CLWI-KPLEX are listed below.
SPECIFICATION
Power Requirements 220-240 Vac, 50/60 Hz, line power
Environmental
Temperature 0° to 40 °C (32° to 104 °F)
Humidity 10% to 90% RH (non-condensing)
Enclosure Mountable in a 1-gang UK (BS 4662) electrical box or
1-gang European (DIN 49073) electrical box that is
35 mm (1.38 in) or deeper;
Requires a FP-INTENSE or FP-PURE style faceplate (both
not included)
Dimensions
Height 72 mm (2.80 in)
Width 72 mm (2.80 in)
Depth 32 mm (1.24 in) including front face with buttons
Weight 80 g (3 oz)
The dimensions of the CLWI-KPLEX are shown below.
72 mm
(2.80 in)
51 mm
(2.00 in)

Additional Resources

Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest firmware updates. Use a QR
reader application on your mobile device to scan the QR image.
DETAILS
32 mm
(1.24 in)
72 mm
(2.80 in)
21 mm
(0.82 in)
51 mm
(2.00 in)

Installation

To install the CLWI-KPLEX, do the following.
CAUTION: Use on 10 A branch circuits only.
CAUTION: Use 1 x 1.5 - 2.5 mm² wire that complies with BS6004:2000/IEC 60245 and
local electrical codes.
NOTE: Use only copper wire rated for at least 75° C.
1. Turn the power off at the circuit breaker.
2. Wire the device as shown in the following diagram. Use 1 x 1.5-2.5 mm²
(14-12 AWG) wire. Secure the connections to the CLWI-KPLEX by inserting the wires
into the back of the unit and tightening the screws on the top of the unit with a small
flat-head screwdriver.
3. Push all power wires back into the electrical box and fasten the device to the
electrical box with the provided screws.
NOTE: Use care when placing the device in the electrical box. Pinched wires
may cause a short circuit.
4. Attach the faceplate (not supplied).
5. Ensure that all buttons, including the program button, actuate without sticking.
6. Restore power at the circuit breaker.

Multigang Installation

In multigang installations, several devices are grouped horizontally or vertically in one
electrical box. When ganging vertically the devices snap together by sliding the bottom of
the upper device into the top of the lower device. This allows the devices to be mounted
closer together.
For a smooth appearance, one-piece multigang faceplates (not included) can be installed.
NOTE: When devices are ganged in a horizontal position, the devices do not interlock.
NOTE: When installing into a multigang box, do not fully tighten devices to box until
the faceplate has been aligned.
Neutral
Line
230 Vac
Live
Earth
Tighten the screws
with a small flat-head
screwdriver.
