Crestron CNWM-10A User Manual

CRESTRON CNWM-10A

SYNTAX:

NET.ID <10 to FE>: CNWP
i1,o1 = <signal name>
i2 = <signal name>
o2 = <signal name>
" = " "
" = " "
i10 = <signal name>
o10 = <signal name>

DESCRIPTION:

The CNWM-10A wired panel interfaces to a CRESNET II control system over the CRESNET II network. The panel uses 10
miniature pushbuttons with self-contained feedback LED's. The CNWM-10A is designed for wall-mounting using a standard
single-gang electrical box. Custom panel finishes, engraving, colored button caps, and the omission of unused buttons are all
standard.
Each unique panel or component on the CRESNET II network requires the setting of an identity code (ID CODE). ID CODES are
two-digit hexadecimal numbers, from 10 to FE. The ID CODE of the panel should be set to match the ID CODE specified in the
NET.ID statement of the CRESNET II SIMPL-C program referencing the panel (see syntax above). To set an ID CODE, remove
the panel from the electrical box and disconnect power.
R E M O T E C O N T R O L S Y S T E M S
1 2
3 4
5 6
7 8
9 10
CRESTRON

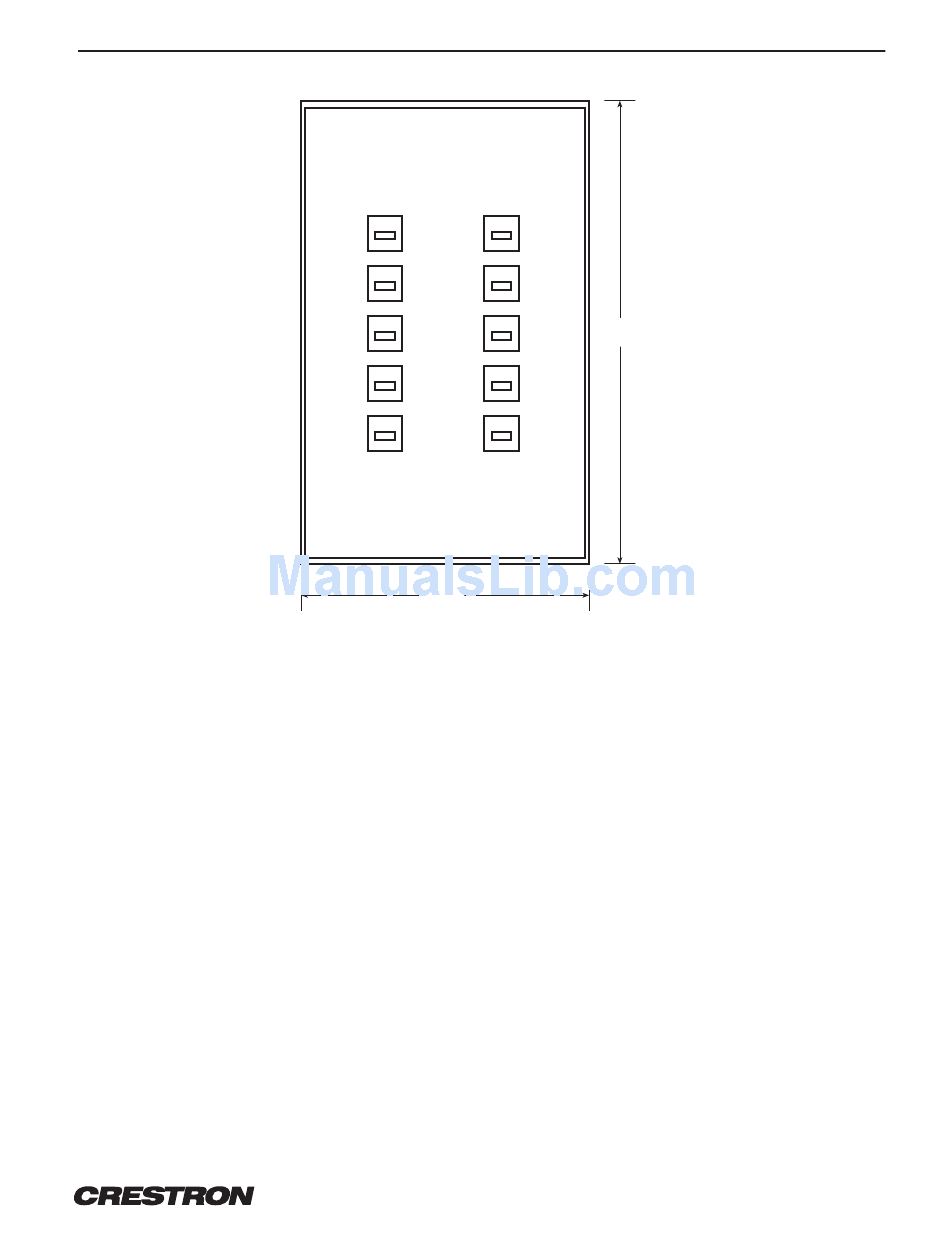

2.86 in
7.26 cm
Panel installs in 1-gang electrical box (2.50 in (6.35 cm) minimum depth).
\ button and LED combined
\ independent button
\ independent LED
1
Specifications subject to change without notice.
Wall-Mount Wired Panel
4.62 in
11.73 cm
DOC. 8001B
