Crestron CLWI-KPLCN Installation Manual

CLWI-KPLCN
In-Wall Keypad
Installation Guide
Description

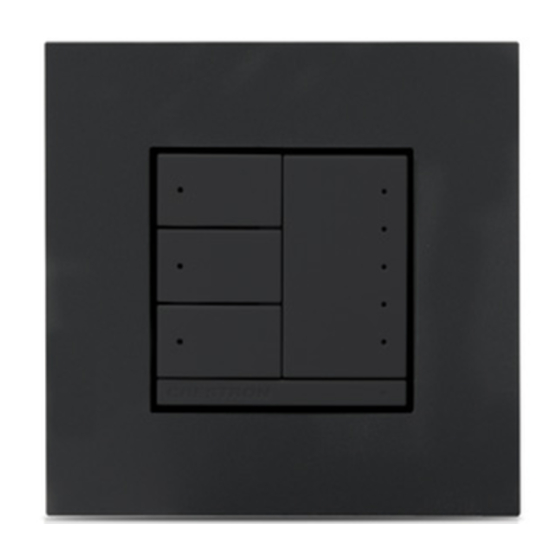

The Crestron ® CLWI-KPLCN is the companion keypad for CLWI dimmers and switches.
It provides lighting and audio control from multiple locations around the home or office.
Recall scenes, dim up and down, and adjust volume using the customizable button layout.
Specifications
Specifications for the CLWI-KPLCN are listed in the following table.
SPECIFICATION
Cresnet Power Usage
Environmental
Temperature
Humidity
Enclosure
Dimensions
Height
Width
Depth
Weight
Dimensions
Dimensions for the CLWI-KPLCN are shown in the following illustration.
72 mm
(2.80 in)
51 mm
(2.00 in)
DETAILS
0.5 W (0.02 A @ 24 Vdc)
0° to 40 °C (32° to 104 °F)
10% to 90% RH (noncondensing)
Mountable in a 1-gang UK (BS 4662) electrical box
or 1-gang European (DIN 49073) electrical box;
Requires a FP-INTENSE or FP-PURE style faceplate
(both not included)
72 mm (2.8 in)
72 mm (2.8 in)
32 mm (1.24 in) including front face with buttons
80 g (3 oz)
(1.24 in)
72 mm
(2.80 in)
21 mm
(0.82 in)
51 mm
(2.00 in)
Additional Resources
Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest firmware updates. Use a QR
reader application on your mobile device to scan the QR image.
Wiring
Make the Cresnet
connections to the contact closure(s). Use wire no larger than 1.5 mm
details, refer to the illustrations below.
NOTE: The G on the INPUT and NET ports are tied together electronically in the
device.
Input
32 mm
Doorbell
switch
NOTE: The contact closure input has the following rating:
• Digital Input: Rated for 0—24 Vdc, input impedance 200 kΩ, logic
threshold 1.24 Vdc.
• Analog Input: Rated for 0—10 Vdc, protected to 24 Vdc maximum, input
impedance 200 kΩ.
• Programmable 5 volts, 2 kΩ pull up resistor per pin.
Installation
The CLWI-KPLCN can be mounted in a single-gang or multigang electrical box.
Single-Gang Installation
To install in a single-gang electrical box.
NOTE: Electrical box depth must be 35 mm (1.38 in) or deeper.
NOTE: Ensure that system power is off before installation.
1. Push the wires back into the electrical box and fasten the device to the electrical box
with the provided screws.
NOTE: Use care when placing the device in the electrical box. Pinched wires
may cause a short circuit.
network NET connection, and then make the optional INPUT
®
Cresnet
Earth
Occupancy
1 2 G
sensor
Contact closure
input
(16 AWG). For
2
