ZUMMESH-KP10AMBATT
AirMedia
Wireless Keypad for AM-200 & AM-300, Battery-Powered
®
Installation Guide
Description
The Crestron
®
ZUMMESH-KP10AMBATT provides power and volume control to a display
that is connected to an AM-200 or AM-300 AirMedia
connect the ZUMMESH-KP10AMBATT to a ZUMMESH-AVBRIDGE* that is part of an
AM-200* or AM-300* AirMedia Presentation System to begin controlling the display.
* Not included.
Installation
NOTE: Observe the following points.
• Install in accordance with all local and national electrical codes.
• For use where temperatures are between 32° to 104 °F (0° to 40 °C).
• Several devices can be installed in one electrical box (multigang). For a smooth
appearance, install a one-piece multigang faceplate (not included).

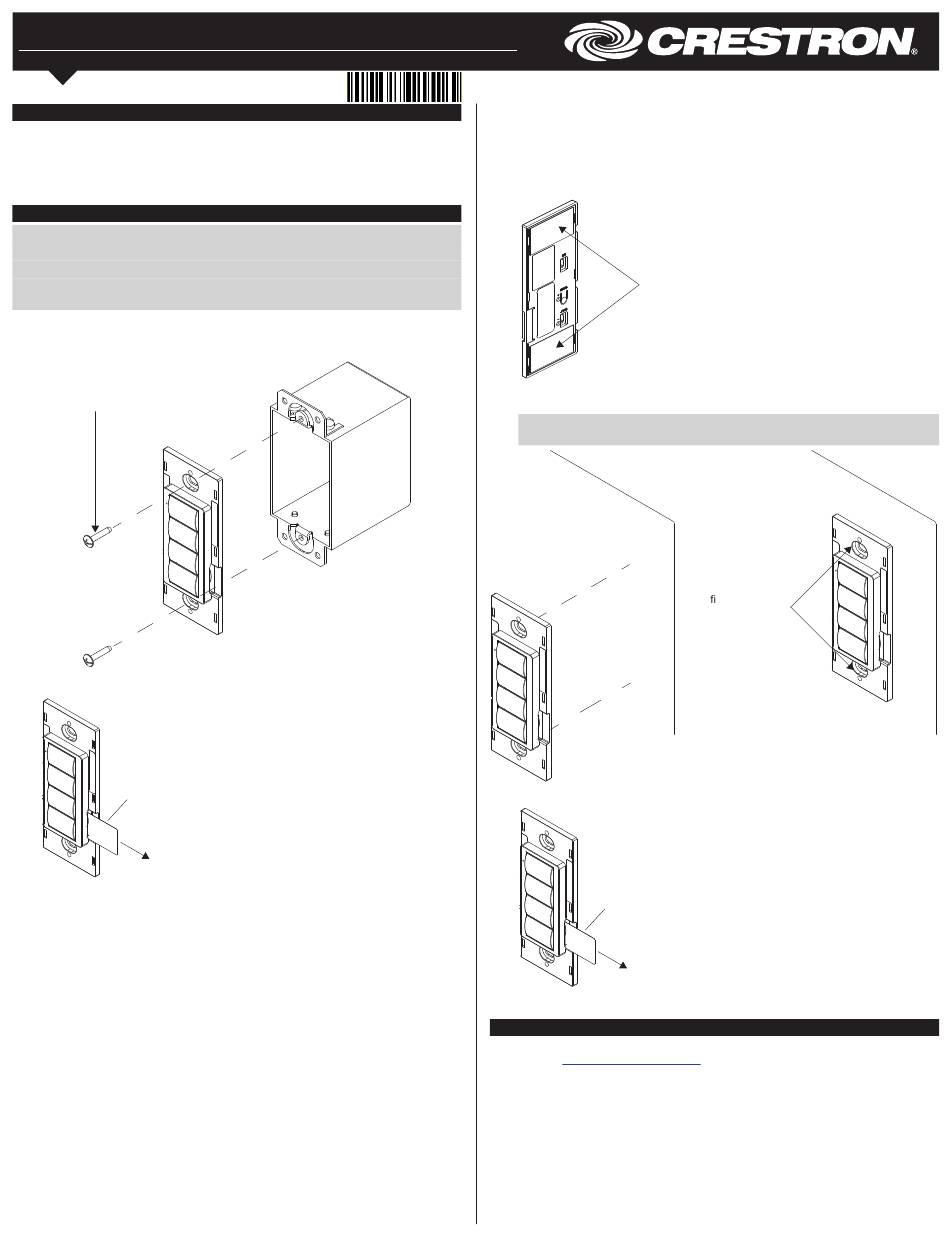

Mount in a Single-Gang Box
1. Secure the ZUMMESH-KP10AMBATT to a single-gang box using the two supplied
screws.
Two screws are supplied
for mounting the keypad to
a back box.
2. Remove the battery tab to turn on the keypad.
Remove the battery tab prior
to operation.
3. Attach a decorator-style faceplate (not included).
Presentation System. Simply
®
Mount on a Flat Surface
Secure the ZUMMESH-KP10AMBATT to a clean, flat surface using the supplied double-
sided tape.
1. Clean the mounting surface with a light cleaning agent that does not leave a residue.
2. Remove the backing of one piece of double-sided tape, and apply it to the back of
the keypad. Repeat for the other piece of double-sided tape.
Two pieces of tape are supplied
to mount the keypad without a
backbox.
3. Ensure that the keypad is vertical and press it firmly against the wall to ensure it is
properly secured.
CAUTION: Removing the keypad after installation may damage the mounting
surface.
4. Remove the battery tab to turn on the keypad.
Remove the battery tab prior
to operation.
5. Attach a decorator-style faceplate (not included).
Set up the ZUMMESH-KP10AMBATT
To set up the ZUMMESH-KP10AMBATT, refer to the AM-200/AM-300 Product Manual
(Doc. 8254) at www.crestron.com/manuals.
Press rmly to ensure
proper adhesion.
