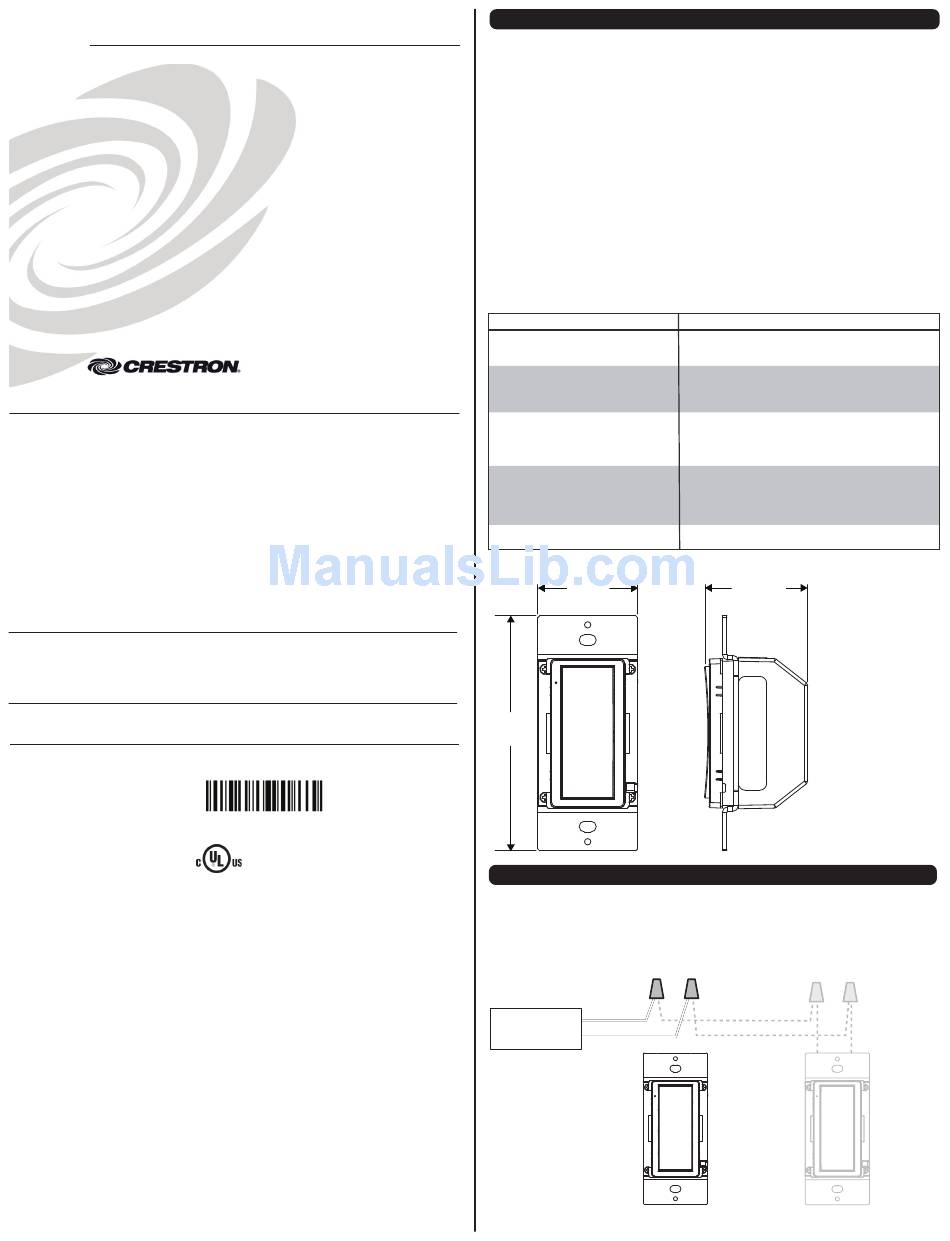

Crestron GLPPA-KP Installation Manual

Crestron GLPPA-KP
Keypad for GLPP
Installation Guide
Further Inquiries
To locate specific information or resolve questions after reviewing this guide, contact Crestron's True
Blue Support at 1-888-CRESTRON [1-888-273-7876] or, for assistance within a particular geographic
region, refer to the listing of Crestron world wide offices at www.crestron.com/offices.
To post a question about Crestron products, log onto Crestron's Online Help at
www.crestron.com/onlinehelp. First-time users must establish a user account to fully benefit from all
available features.
Future Updates
As Crestron improves functions, adds new features, and extends the capabilities of the GLPPA-KP units,
additional information may be made available as manual updates. These updates are solely electronic
and serve as intermediary supplements prior to the release of a complete technical documentation
revision.
Check the Crestron Web site periodically for manual update availability and its relevance. Updates are
identified as an "Addendum" in the Download column.
WARNING: To avoid fire, shock, or death; turn off power at circuit breaker or fuse and test that power is off before
wiring!
NOTES: Observe the following:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
This product is Listed to applicable
UL Standards and requirements by
Underwriters Laboratories Inc.
Installation Guide - DOC. 7211B
(2031031)
08.13
Specifications subject to
change without notice.
DESCRIPTION

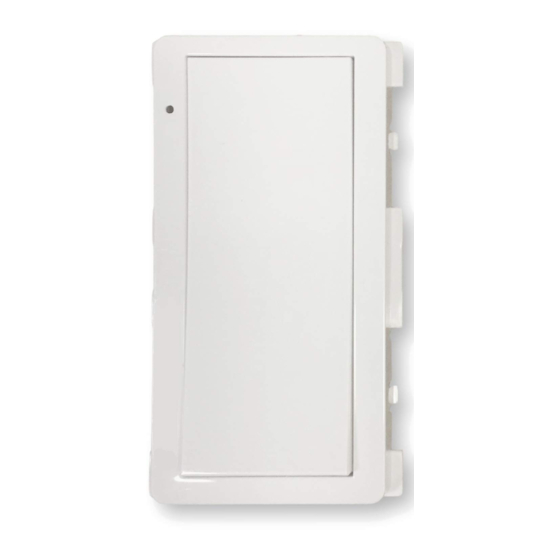

The GLPPA-KP is an in-wall keypad for Crestron Green Light
systems, used to set and recall presets and turn on and off all loads connected to a
GLPP. Installation is made easy thanks to a 2-wire, low-voltage bus, which connects the
GLPPA-KP and GLPP main unit. Available in black, white, and almond, the GLPPA-KP
fits almost any décor. Up to three GLPPA-KPs can be connected to a single GLPP
system for multipoint control in a room.
Flexible Configuration
Two sets of button configurations accompany every GLPPA-KP: a rocker for turning
on/off and dimming and a set of four pre-labeled buttons—ALL ON, ALL OFF,
SCENE 1, and SCENE 2. Scenes can be adjusted by any user directly right from the
keypad.
Easy Installation
Two flying leads connect the GLPPA-KP to the GLPP system via a non-polarized
low-voltage bus. Use a choice of new or existing high-voltage (Class 1) or low-voltage
(Class 2) wiring for quick installation.

Specifications

Specifications for the GLPPA-KP are listed in the following table.
GLPPA-KP Specifications
SPECIFICATION
Power Requirements
Environmental
Temperature
Humidity
Enclosure
Dimensions
Height
Width
Depth
Weight
GLPPA-KP Dimensions
1 3/4 in
(45 mm)
4 1/8 in
(105 mm)
INSTALLATION
Wiring
1. Using new or pre-existing wiring, connect the two non-polarized white wires with black
stripes from the GLPP-DIM or GLPP-SW to the two wires on the keypad.
2. If a second or third GLPPA-KP is being used in the room, wire them in parallel.
Wiring the GLPPA-KP
White/Black
GLPP
White/Black
Primary GLPPA-KP
®
Power Pack (GLPP)
DETAILS
1 watt (0.05 amps @ 24 volts dc) supplied by GLPP
over proprietary 2-wire bus
32º F to 113º F (0º C to 45º C)
10% to 90% RH (non-condensing)
Injection molded plastic, one gang mountable in a
standard electrical box, requires decorator style
faceplate (not supplied)
4 1/8 in (105 mm)
1 3/4 in (45 mm)
1 13/16 in (46 mm)
4 oz (50 g)
1 13/16 in
(46 mm)
Secondary GLPPA-KP
(Optional)
