Crestron ZUMMESH-KP10ABATT Installation Manual

ZUMMESH-KP10ABATT/ZUMMESH-KP10BBATT/ZUMMESH-KP10CBATT/ZUMMESH-KP10DBATT
Zūm™ Battery-Powered Wireless Keypad

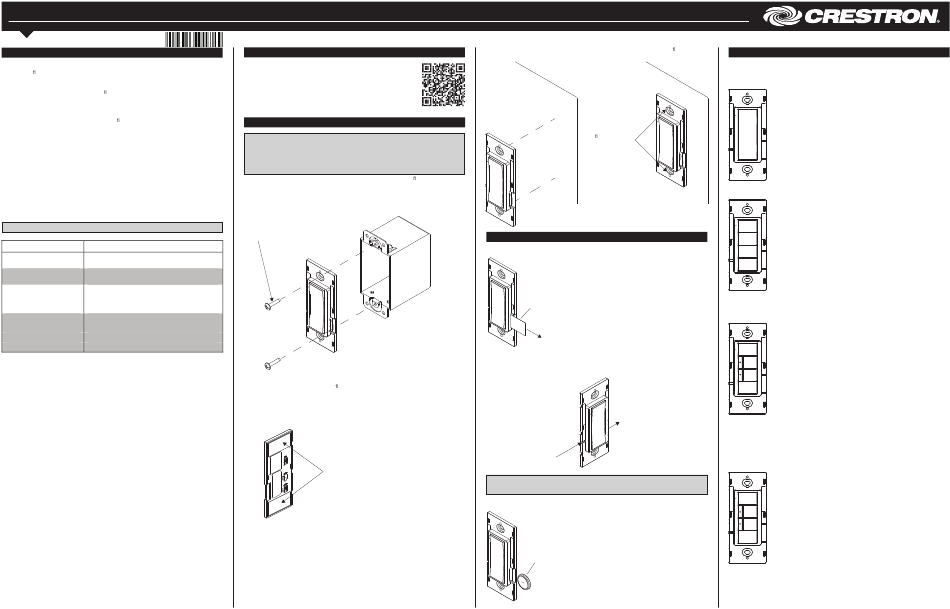

Installation Guide
Description

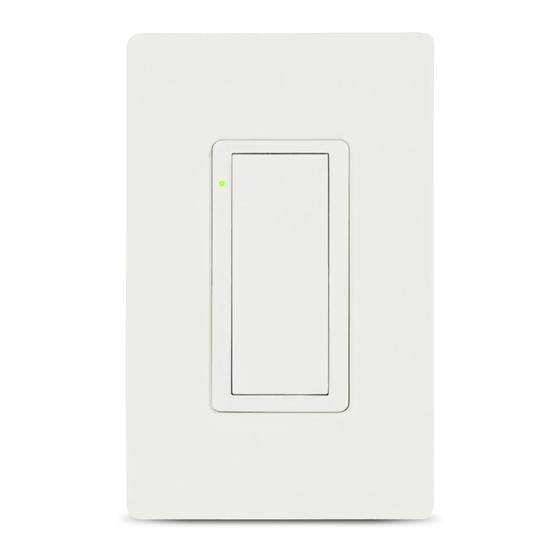

The Crestron ZUMMESH-KPBATT is an extremely slim battery-powered Zūm™ wireless
®
keypad with exible installation. The ZUMMESH-KPBATT is a versatile and easy-to-use
addition to the Zūm commercial lighting system. Powered by a battery and slim enough
to mount to the surface of a wall, the keypad's streamlined design and out-of-the-box
functionality make it ideal for new or retro t installations.
Zūm keypads are preprogrammed. Install a keypad in a room with a Zūm J-Box Zone
Controller (sold separately), perform a series of button taps, and then use the keypad to
control the lights in the room – no programming required! Battery-powered Zūm
keypads are designed in the following four con gurations:
• Single-Rocker Switch – Simple on and off lighting control
• Four-Button Keypad – Two buttons for on and off control and two scene recall
buttons
• Six-Button Keypad – Two buttons for on and off control, two buttons for dimming
up and dimming down, and two scene recall buttons
• Six-Button Keypad with Sensor Control - Two buttons for on and off control, two
buttons for dimming up and dimming down, one button for scene recall, and one
button for disabling the sensors in the room
A basic single-room Zūm system consists of Zūm mesh devices, i.e., dimmers, switches,
keypads, and sensors. The Zūm mesh devices in the room communicate directly with
each other without the need for a centralized gateway or processor.
To monitor or control the room from a centralized Crestron control system, use the
ZUMMESH-NETBRIDGE.
NOTE: The ZUMMESH-NETBRIDGE requires a J-box device to provide power.
For quick network setup, use the Zūm app on a smartphone or tablet.
SPECIFICATION DETAILS
Power Requirements CR2032 coin cell battery (included);
Provides at least 5 years of battery life
Enclosure 1-gang mountable;
Requires decorator-style faceplate (sold separately)
Environmental
Temperature 30° to 104 °F (0° to 40 °C)
Humidity 10% to 90% RH (noncondensing)
Dimensions
Height 4.25 in (108 mm)
Width 1.77 in (45 mm)
Depth 0.39 in (10 mm)
Additional Resources
Visit the product page on the Crestron website (www.crestron.com)
for additional information. Use a QR reader application on your
mobile device to scan the QR image.
Installation
NOTES: Observe the following points.
• Codes: Install in accordance with all local and national electrical codes.
• Temperature: For use where temperatures are between 32° to 104 °F (0° to 40 °C).
• Electrical Boxes: Several devices can be installed in one electrical box (multigang).
For a smooth appearance, install one-piece multigang faceplates (not supplied).
Mount the ZUMMESH-KPBATT to a single-gang box or directly to a at surface using
double-sided tape.
Single-Gang Box Mounting
Secure the ZUMMESH-KPBATT to a single-gang box using the two supplied screws.
Attach a decorator-style faceplate (not supplied).
Two screws are supplied
for mounting the keypad to
a back box.
Double-Sided Tape Mounting
Secure the ZUMMESH-KPBATT to a at, clean surface using the supplied double-sided
tape.
1. Clean the mounting surface with a light cleaning agent that does not leave a
residue.
2. Remove the backing of one piece of the double-sided tape and apply it to the back
of the keypad. Repeat for the other piece of double-sided tape.
Two pieces of tape are supplied
to mount the keypad without a
backbox.
3. Ensure that the keypad is vertical, and press it against the wall. Press rmly to
ensure that the keypad is properly secured to the wall.
Press rmly to ensure
proper adhesion.
Battery
Prior to operation, remove the battery tab to turn on the keypad.
Remove the battery tab prior
to operation.
Battery Replacement
To remove the battery, insert a pin or paper clip into the slot on the left side of the keypad.
The battery slides out of the opposite side of the keypad.
To remove the battery,
insert a pin or paper clip
into the hole on the side.
NOTE: The battery must be inserted properly.
NOTE: The keypad will not operate if the battery is inserted incorrectly.
To install a new battery, insert the battery into the battery slot. The — terminal faces
away from the wall.
Battery CR2032
(—) towards the front of the keypad
Default Button Functions
The keypad's functionality is based upon its button layout. Keypads, by default, control
all loads in the room. If the keypad is linked to a dimmer, the keypad controls only its
linked loads.
ZUMMESH-KP10ABATT Button Functions
Top Button
Press: Recalls Scene 1
Hold: Raises lights
Bottom Button
Press: Turns lights off
Hold: Lowers lights
ZUMMESH-KP10BBATT Button Functions
On
Press: Recalls Scene 1
Hold: Raises lights
ON
SCENE 2
SCENE 2
Press: Recalls Scene 2
Hold 5 Seconds: Saves Scene 2
SCENE 3
SCENE 3
OFF
Press: Recalls Scene 3
Hold 5 Seconds: Saves Scene 3
OFF
Press: Turns lights off
Hold: Lowers lights
ZUMMESH-KP10CBATT Button Functions
On
Press: Recalls Scene 1
Hold: No action
ON
SCENE 2
SCENE 2
Press: Recalls Scene 2
Hold 5 Seconds: Saves Scene 2
SCENE 3
SCENE 3
OFF
Press: Recalls Scene 3
Hold 5 Seconds: Saves Scene 3
OFF
Press: Turns lights off
Hold: Lowers lights
^
Hold: Raises lights
v
Hold: Lowers lights
ZUMMESH-KP10DBATT Button Functions
On
Press: Recalls Scene 1
Hold: No action
ON
SCENE 2
SCENE 2
Press: Recalls Scene 2
Hold 5 Seconds: Saves Scene 2
SENSOR
DISABLE
SENSOR DISABLE
OFF Press: Recalls Scene 3
Hold 5 Seconds: Saves Scene 3
OFF
Press: Turns lights off
Hold: Lowers lights
^
Hold: Raises lights
v
Hold: Lowers lights
