Install the ION 9000

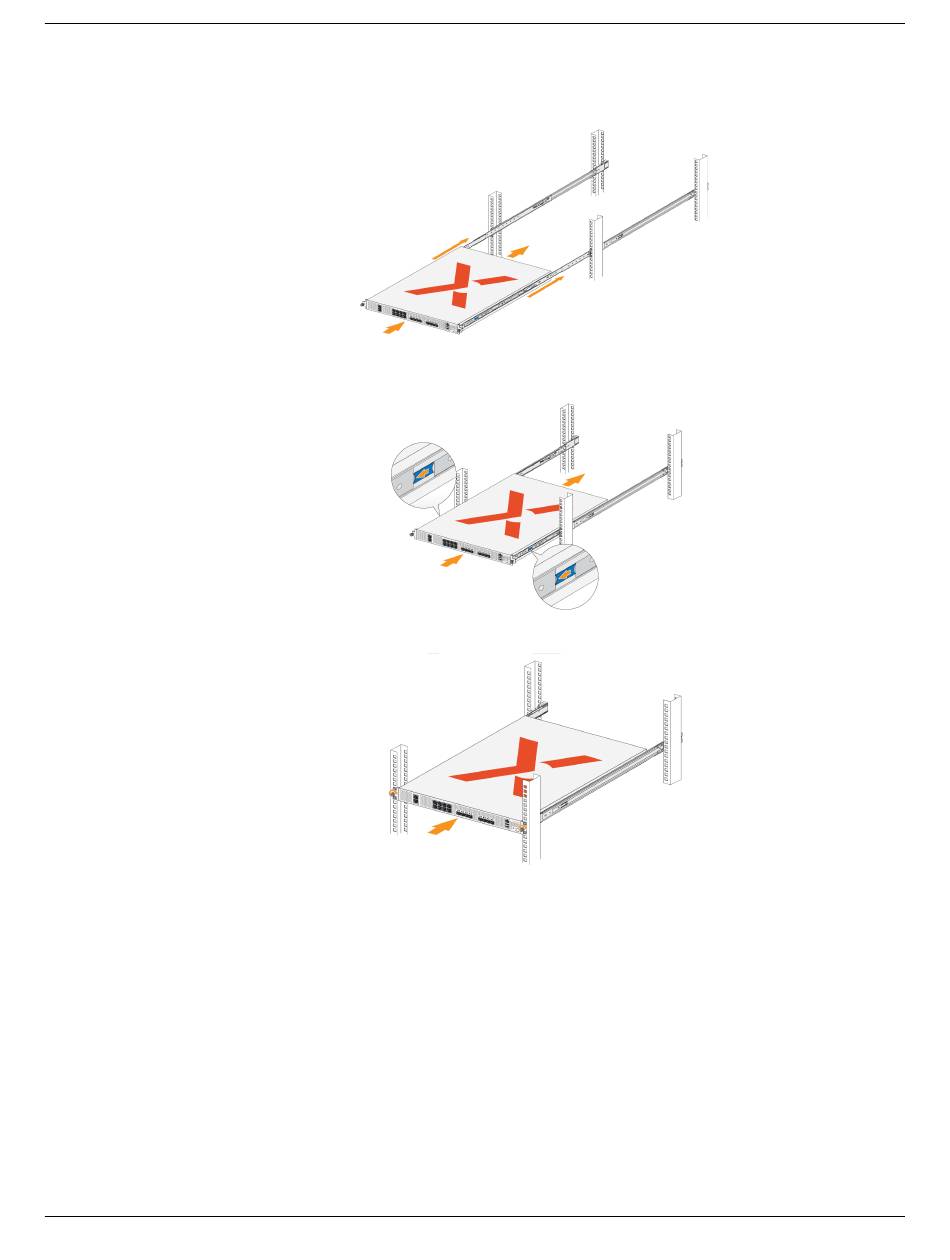

STEP 3 | Slide the ION 9000 into the rails
1. Align the mounng brackets on the ION 9000 with the slide rail slot and push the ION
9000 in.
2. Slide the bracket release buon on both the brackets and slide the ION 9000 into the
rack unl it clicks into place.
3. Secure the ION 9000 into the rails using the thumb screws on the slide lock ears.
