ION 2000 Hardware Reference
paloaltonetworks.com/documentation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prisma SD-WAN ION 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for PaloAlto Networks Prisma SD-WAN ION 2000

Summary of Contents for PaloAlto Networks Prisma SD-WAN ION 2000

  • Page 1 ION 2000 Hardware Reference paloaltonetworks.com/documentation...
  • Page 2 Contact Information Corporate Headquarters: Palo Alto Networks 3000 Tannery Way Santa Clara, CA 95054 www.paloaltonetworks.com/company/contact-support About the Documentation • For the most recent version of this guide or for access to related documentation, visit the Technical Documentation portal www.paloaltonetworks.com/documentation. • To search for a specific topic, go to our search page www.paloaltonetworks.com/documentation/ document-search.html.

  • Page 3: Table Of Contents

    Table of Contents Before You Begin....................5 Tamper Proof Statement........................... 7 Third-Party Component Support......................8 Product Safety Warnings.......................... 9 ION 2000 Overview..................15 ION 2000..............................17 ION 2000 Ports............................18 ION 2000 Front Panel with LEDs......................19 ION 2000 Specifications......................... 20 ION Device Compliance Statement..................... 22 ION 2000 Fail-to-Wire Cabling Matrix....................
  • Page 4 TABLE OF CONTENTS...

  • Page 5: Before You Begin

    Before You Begin Read the following topics before you install or service a Palo Alto Networks next-generation ® firewall or appliance. The following topics apply to all Palo Alto Networks firewalls and appliances except where noted. > Tamper Proof Statement >...
  • Page 6 ION 2000 HARDWARE REFERENCE | Before You Begin 2021 Palo Alto Networks, Inc. ©...

  • Page 7: Tamper Proof Statement

    Tamper Proof Statement To ensure that products purchased from Palo Alto Networks were not tampered with during shipping, verify the following upon receipt of each product: • The tracking number provided to you electronically when ordering the product matches the tracking number that is physically labeled on the box or crate.

  • Page 8: Third-Party Component Support

    Third-Party Component Support Before you consider installing third-party hardware, read the Palo Alto Networks Third-Party Component Support statement. ION 2000 HARDWARE REFERENCE | Before You Begin 2021 Palo Alto Networks, Inc. ©...

  • Page 9: Product Safety Warnings

    Product Safety Warnings To avoid personal injury or death for yourself and others and to avoid damage to your Palo Alto Networks hardware, be sure you understand and prepare for the following warnings before you install or service the hardware. You will also see warning messages throughout the hardware reference where potential hazards exist.
  • Page 10 Caractéristiques techniques: • Le circuit de protection est conforme aux classifications de test IEC B2, C1, C2, C3, et D1. • Le courant de décharge normal (cœur vers terre) est de 2kA par paire de signal. • Le courant de décharge normal (cœur vers cœur) est de 100 A. •...
  • Page 11 ION 2000 HARDWARE REFERENCE | Before You Begin 2021 Palo Alto Networks, Inc. ©...
  • Page 12 (Applicable to ION 9000) ION 2000 HARDWARE REFERENCE | Before You Begin 2021 Palo Alto Networks, Inc. ©...
  • Page 13 ION 2000 HARDWARE REFERENCE | Before You Begin 2021 Palo Alto Networks, Inc. ©...
  • Page 14 ION 2000 HARDWARE REFERENCE | Before You Begin...

  • Page 15: Ion 2000 Overview

    ION 2000 Overview Learn about Instant-On Network (ION) 2000 and plan your deployment. > ION 2000 > ION 2000 Ports > ION 2000 Front Panel with LEDs > ION 2000 Specifications > ION Device Compliance Statement > ION 2000 Fail-to-Wire Cabling Matrix >...
  • Page 16 ION 2000 HARDWARE REFERENCE | ION 2000 Overview 2021 Palo Alto Networks, Inc. ©...

  • Page 17: Ion 2000

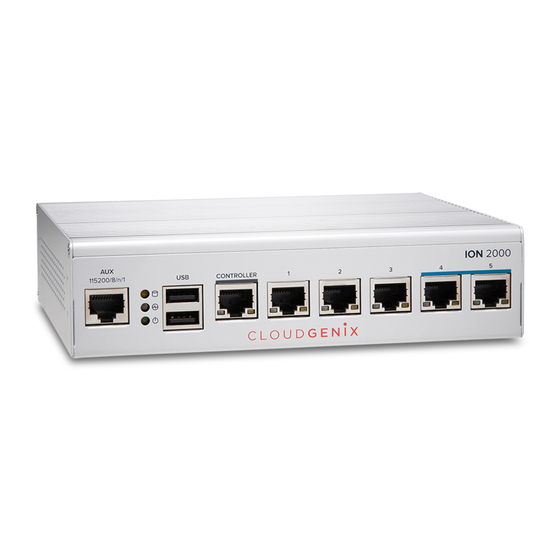

    ION 2000 The Prisma SD-WAN ION 2000, designed for the enterprise branch, transforms legacy wide area networks (WANs), enabling you to combine heterogeneous underlying transports into a unified hybrid WAN. It establishes service-level agreements (SLAs) for security, path selection, and application performance. It helps gain direct insight into end-user application performance for traditional, SaaS, modern, and encrypted applications.

  • Page 18: Ion 2000 Ports

    ION 2000 Ports The ports on the ION 2000 are used as follows: Ports Description This port is an auxiliary access port intended for offline access, configuration, and troubleshooting a system during installation. This port is reserved for future use. Controller This port is used by ION 2000 to communicate with the Prisma SD- WAN controller.

  • Page 19: Ion 2000 Front Panel With Leds

    ION 2000 Front Panel with LEDs The ION 2000 LEDs indicate the status of the disk, power, and the controller connectivity: Icons Color Displays disk status Disk activity—Orange light (Blinking) Displays controller connectivity status • Connected—Blue light • Not Connected—Red light Displays power status •...

  • Page 20: Ion 2000 Specifications

    ION 2000 Specifications Learn the ION 2000 physical specifications before starting. ION 2000 Specification Description Controller 1 x 10/100/1000 RJ-45 WAN/LAN/Internet 5 x 10/100/1000 RJ-45 Port pair 4/5 have programmable inline fail-to-wire capability. Throughput Throughput Up to 250 Mbps Encrypted throughput is measured with 1400 byte HTTP packets with all features turned on.
  • Page 21 ION 2000 Specification Description Internet connectivity This connectivity is used to reach the Prisma SD-WAN controller. It can be in the form of a private connection by an MPLS network through a corporate data center. It can also be a public internet connection provided by a local or broadband connection.

  • Page 22: Ion Device Compliance Statement

    ION Device Compliance Statement The following lists the ION device hardware compliance statements: • VCCI: This section provides the compliance statement for the Voluntary Control Council for Interference by Information Technology Equipment (VCCI), which governs radio frequency emissions in Japan. The following information is in accordance to VCCI Class B requirements: Translation: This is a Class B product.

  • Page 23: Ion 2000 Fail-To-Wire Cabling Matrix

    ION 2000 Fail-to-Wire Cabling Matrix The ION 2000 fail-to-wire cabling matrix is shown below: Recommended Recommended Recommended Recommended Port Type/Speed WAN Port LAN Port Cable Cable Settings Device Device Cable WAN Port- LAN Port-to- ION 2000 Connection to-WAN LAN Device Port End Result Device...

  • Page 24: Ion 2000 Installation Kit Components

    ION 2000 Installation Kit Components The ION 2000 installation kit contains the following parts and tools to install the device: • 1x 36W power adapter • 1x USB-to-RJ45 cable • 1x power cord, which varies depending on the country or region The following hardware parts are optional and must be ordered separately: •...

  • Page 25: Power On The Ion 2000

    Power on the ION 2000 Connect the power cables to the ION device and plug the device power cable into an AC power outlet. When you switch on the power, the device is powered on and the power indicator turns green. Shut Down the ION 2000 Shut down the ION 2000 in the following ways: •...
  • Page 26 ION 2000 HARDWARE REFERENCE | ION 2000 Overview...

  • Page 27: Install Ion 2000

    Install ION 2000 Before you install the Prisma SD-WAN ION 2000 at a branch site, verify the following physical installation requirements, the installation kit, wall-mount, and the rack-mount components. > Rack Mount the ION 2000 > Wall Mount the ION 2000 >...
  • Page 28 ION 2000 HARDWARE REFERENCE | Install ION 2000 2021 Palo Alto Networks, Inc. ©...

  • Page 29: Rack Mount The Ion 2000

    Rack Mount the ION 2000 Rack-mount the ION 2000 on a standard 19 inch rack. In the optional rack-mount kit, there are two identical L-shaped brackets that is attached to either side of the ION 2000 with two (2) screws. After you attach the brackets, mount the ION 2000 on to any standard 19 inch rack using three appropriate screws.
  • Page 30 STEP 6 | Finally, verify that the device is securely mounted on the rack. ION 2000 HARDWARE REFERENCE | Install ION 2000 2021 Palo Alto Networks, Inc. ©...

  • Page 31: Wall Mount The Ion 2000

    Wall Mount the ION 2000 Mount the Prisma SD-WAN ION 2000 on the wall using the optional wall mounting kit. STEP 1 | Gather the wall mounting brackets. Turn the ION device upside down and locate the four (4) screw holes on each corner of the STEP 2 | device.
  • Page 32 STEP 8 | Hang the device onto the wall, making sure to match the four (4) screw holes on the bracket with the four (4) threaded nails on the wall. STEP 9 | Tighten the screws to secure the device on the wall. STEP 10 | Finally, verify that the device is securely mounted on the wall.

  • Page 33: Set Up The Ion 2000 With An Existing Router

    Set Up the ION 2000 with an Existing Router The analytic or control mode with an existing router allows you to insert the ION 2000 without modifying any network settings at the remote office. The ION 2000 utilizes an inline insertion method with fail-to- wire redundancy to accomplish this.
  • Page 34 • Controller Port: Connect the controller port to an ethernet port. The controller port is used for ION- to-network controller communication and monitoring. By default, it is configured as a DHCP client. • Internet or WAN or LAN Ports: • Ports 1 to 3 are used as internet, WAN, or LAN ports. Ports 2 and 3 are DHCP-enabled by default. •...
  • Page 35 STEP 8 | : Proceed to claim configure the ION device through the Prisma SD-WAN Next Step console. ION 2000 HARDWARE REFERENCE | Install ION 2000 2021 Palo Alto Networks, Inc. ©...

  • Page 36: Set Up The Ion 2000 By Replacing The Router

    Set Up the ION 2000 by Replacing the Router In control mode, you replace the existing router with the ION 2000 as a drop-in replacement for a WAN router. This mode is most useful for saving cost at new sites that are designed without a traditional router. Prepare the cabling of the ION 2000 to the rest of the network.
  • Page 37 • Ports 4 and 5 are used as WAN or LAN ports. They are pre-configured as bypass pairs with inline fail-to-wire capability. STEP 6 | Select any port(s) from ports 1 to 3 to configure as internet ports and plug the internet ports into a broadband internet source.
  • Page 38 ION 2000 HARDWARE REFERENCE | Install ION 2000...
