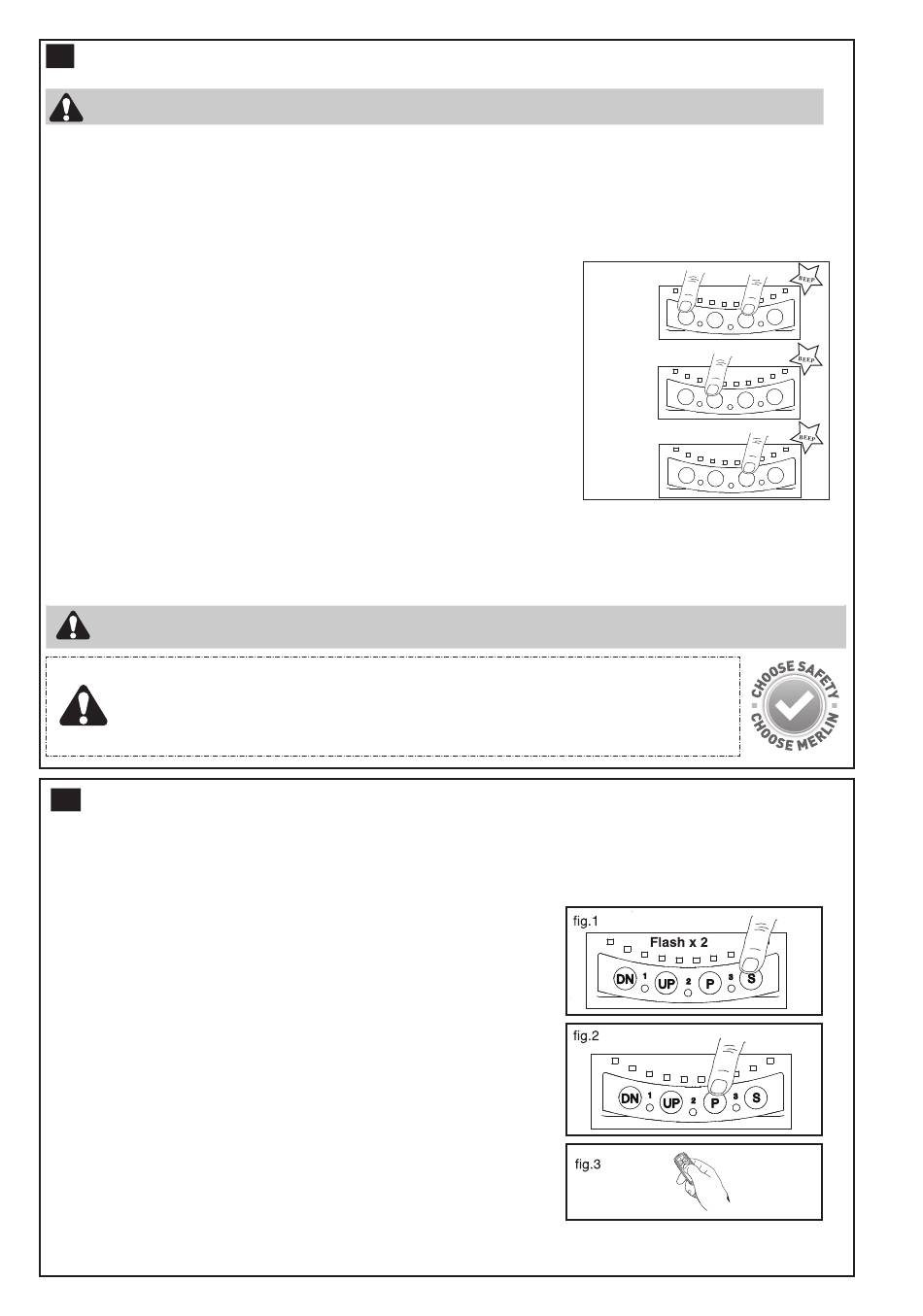

TIMER TO CLOSE FEATURE (TTC)
Auto close is NOT recommended for households with young children.
TIMER TO CLOSE feature: (TTC) 10 to 180 seconds.
NOTE: The Protector System
The Timer to Close feature allows the door to automatically close after a specified time period. During the
OPEN door waiting period, the courtesy light will flash continuously.
If the door encounters an obstruction while closing, the opener will
return to the OPEN position and the TTC will begin again.
To activate the Timer to Close:
• Start with The Protector System
fully CLOSED.
• Press and Hold both "P" and "DN" buttons for 3 seconds. When the
Courtesy light flashes "TWICE", release both buttons.
• Press the "UP" for each 10 second interval required for
Timer to Close. A "BEEP" will register for each press. "DN" button
will reduce the count if needed.
• Press and release the "P" button to accept this setting.
To deactivate the Timer to Close:
• Start with the door fully CLOSED.
• Press and Hold both "P" and "DN" buttons for 3 seconds. When the
Courtesy light flashes "TWICE", release both buttons.
• Press and release the "P" button to accept this setting.
The door may operate unexpectedly, therefore do not allow anything to obstruct the path of the
door.
Whilst Merlin have engineered safety features into your garage door opener, we urge you to
consider fitting The Protector System
countries these devices are compulsory to assist in preventing serious injury or property damage.
For your own peace of mind and the safety of others please consider installing this safety device.
19
PROGRAM TRANSMITTERS TO THE OPENER LIGHT
To program your transmitters to operate your garage door opener light follow the below steps:
NOTE: Do not use the same transmitter button that has been previously learned to the garage
door opener for operation.
1.Press and release the "S" button, and the "courtesy light" will flash
twice (fig.1).
2.Press and release the "P" button and the garage door opener will go
into Courtesy Light learn mode for 30 seconds (fig.2).
3.Press any transmitter button (fig.3) to learn this channel to the garage
door opener courtesy Light, the garage door opener "courtesy
Light" will flash twice.
The transmitter is now learnt to the garage door opener courtesy Light.
To Erase all Transmitter Codes
1.Press and hold the "S" button on the opener until the courtesy light
flashes twice, and continue holding for approximately 8 seconds, until
the courtesy light flashes twice again.
2.Release the button, all transmitter codes are now erased.
TM (IR Beams) MUST be installed before TTC will operate.
TM
(IR Beams) installed and the door
