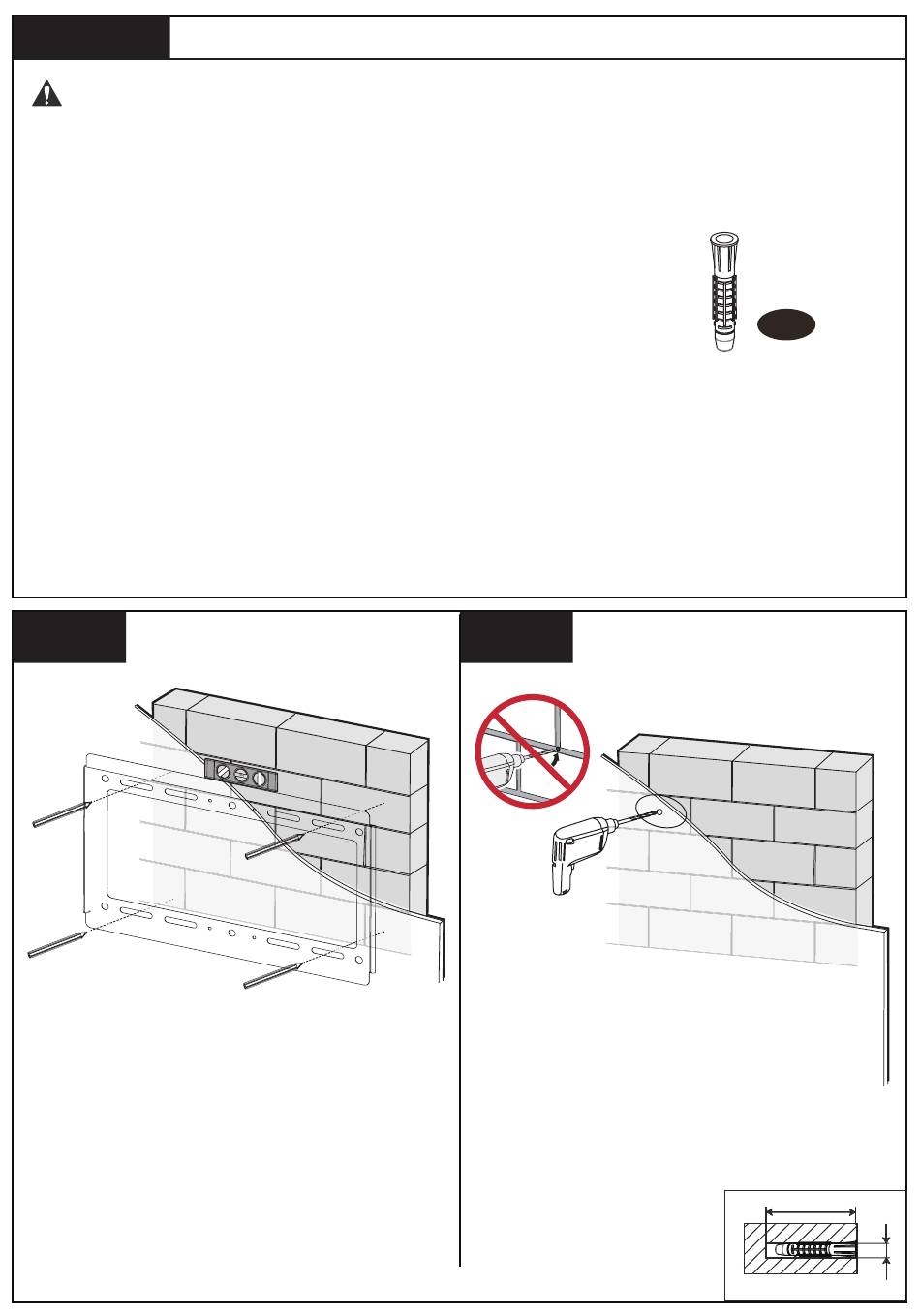

Solid Concrete or Concrete Block Option

Step 4B
WARNING:
● Avoid potential personal injury or property damage! DO NOT
over-tighten the lag bolts [A1]. Tighten the lag bolts [A1] only until they
are pulled firmly against the wall plate [01].
● Ensure the wall plate is securely fastened to the wall
before continuing on to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the wall plate [01] directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
4B-1
Position the wall plate at your
desired height, level the wall plate
and mark the pilot hole locations.
4B-2
Drill 4 pilot holes using a 10mm
diameter drill bit. Make sure the
depth is not less than 60mm. Never
drill into the mortar between blocks.
6
Wall
Anchor
A2
60mm
ø10mm
