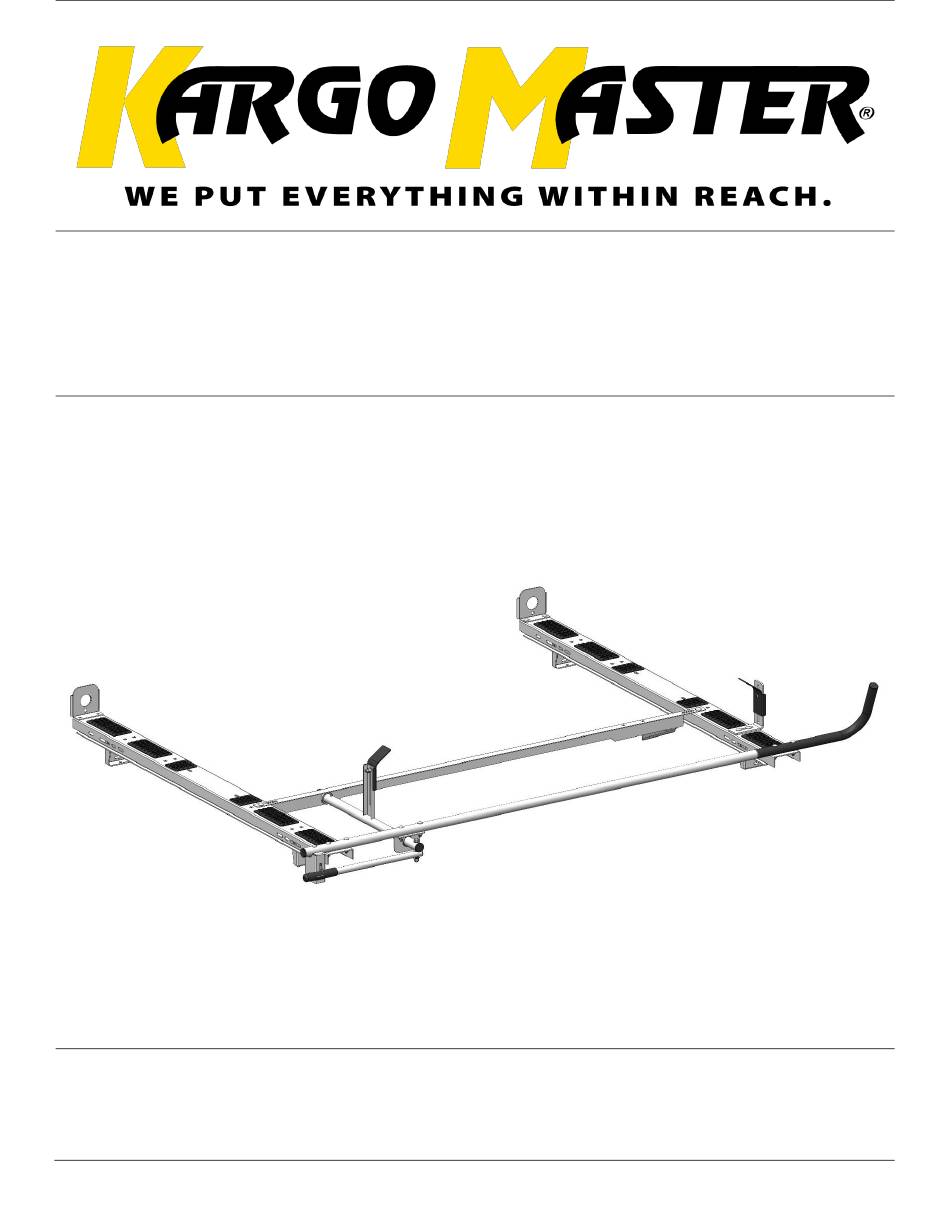

- Page 1 Instruction Guide 4A83L Kargo Master Rancho Cordova, CA 95742 800-343-7486 CustomerService@KargoMaster.com 20210629R3 DATE: ______________...
-
Page 2: Table Of Contents
Examples of Ladder Clamps Firmly Against Ladder Rungs ..................12 Before You Begin Read all instructions prior to assembling or installing any Kargo Master product. Find your vehicle roof rail mounting prior to rack assembly. Most times it is easier to assemble the ladder rack on top of roof, after the mount kit has been installed. -
Page 3: Parts List
Instructions – 4A83L Parts List For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2... -
Page 4: Hardware (18-4A83L-A)
Instructions – 4A83L Hardware (18-4A83L-A) For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3... - Page 5 Instructions – 4A83L Hardware (18-4A83L-A) Continued For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4...
-
Page 6: Step 1 - Install End Stops
Instructions – 4A83L Step 1 – Install End Stops If installing driver side ladder rack, skip this step. Using two 5/16” x 3/4” carriage bolts, 5/16” washers, and 5/16” lock nuts, bolt end stop to one end of bow. -
Page 7: Step 3 - Install Side Tube
Instructions – 4A83L Step 3 – Install Side Tube Place side tube assembly on top of bows. Have the bend towards the front and to the outside of the vehicle as shown. In some applications, it is easier to assemble rack on top of vehicle. -
Page 8: Step 4 - Install Hanger Bracket
Instructions – 4A83L Step 4 – Install Hanger Bracket Using two 5/16” x 2” carriage bolts, two 5/16” washers, and two 5/16” lock nuts, install hangar bracket as shown blow. Be sure to have the bracket flange towards the inside of the bows. - Page 9 Instructions – 4A83L Insert clamp tube with bushings into L-bracket and hangar bracket installed in Step 3. Be sure flanges toward are oriented as shown so they CANNOT fall out. Insert clamp tube into both plastic bushings. Ladder clamp on the clamp tube is adjustable. When finished, clamp must be adjusted to fit firmly against ladder.
-
Page 10: Step 6 - Install Latch Assembly
Instructions – 4A83L Step 6 – Install Latch Assembly Using one 5/16” x 2” carriage bolt, one 5/16” flat washer, and one 5/16” lock nut, bolt latch to the rear of the mount tube that was installed in Step 3. -
Page 11: Step 8 - Install Ladder Hook Bracket To Bow
Instructions – 4A83L Step 8 – Install Ladder Hook Bracket to Bow Using two 3/8” x 1” carriage bolts, 3/8” flat washers and 3/8” lock nuts, bolt ladder hook bracket to the bow in the orientation shown. Be sure the bracket is square to the bow. - Page 12 Instructions – 4A83L Feet can be installed outward as shown below or reverse depending on the roof mounting. Using 3/8” x 3/4" hex head bolts, 3/8” lock washers and 3/8” flat washers, bolt foot to cross member. Snug tighten, but allow movement.
-
Page 13: Angle Pad Orientations And Locations
Instructions – 4A83L Angle Pad Orientations and Locations Rear- Front-Facing Facing Clamp Mechanism Orientation and Angled Pad Positions Rear- Facing Examples of Ladder Clamps Firmly Against Ladder Rungs The ladder hook should be positioned in a way so the hook clamps the ladder tight into place. A tight fit ensures the ladder cannot fall off the rack.
