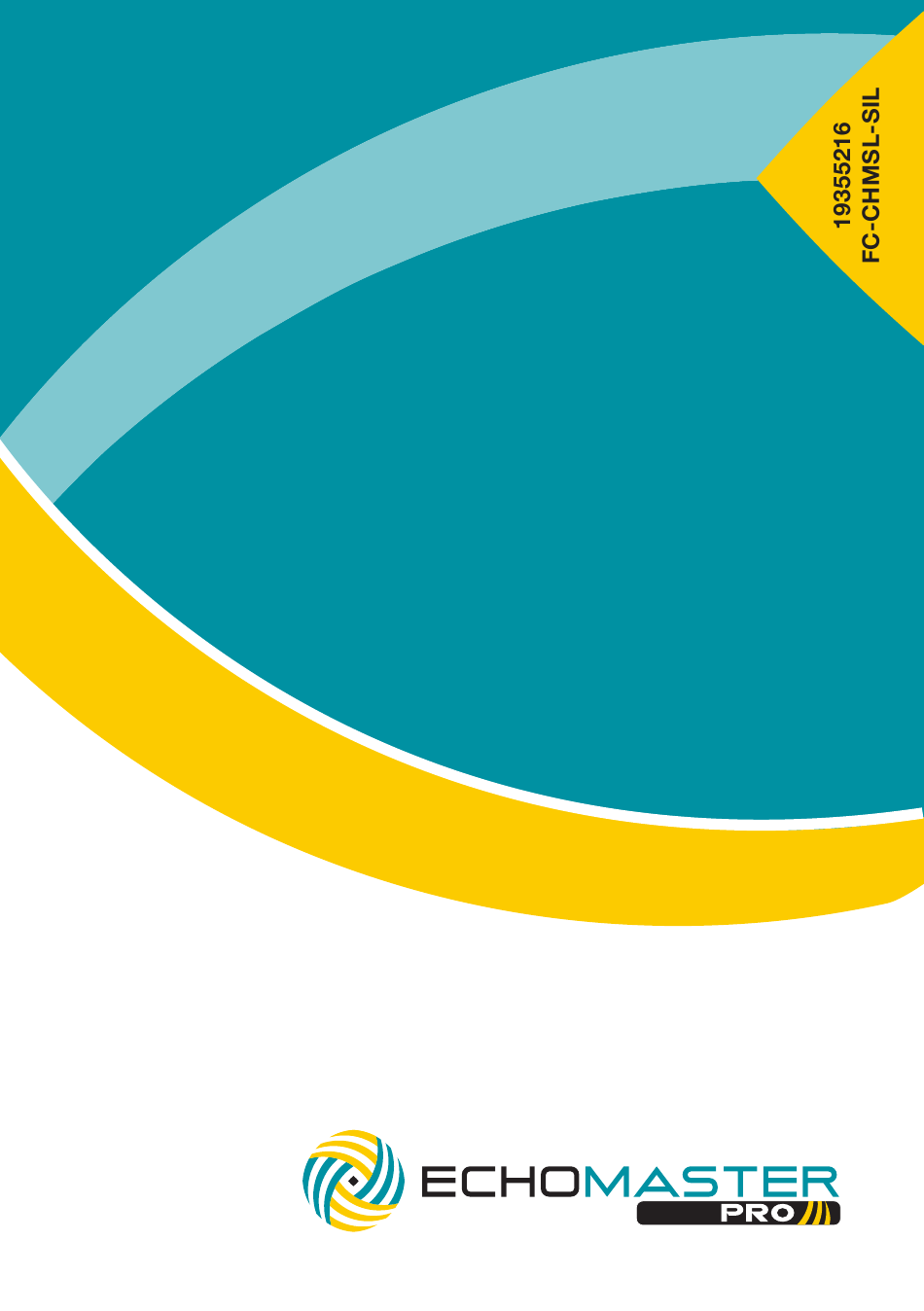

- Page 1 Installation Guide IntelliHaul Integrated Towing Assistance Package 4” and 8” screens only Not compatible with IOB...
-
Page 2: Prior To Installation
Installation Guide FC-CHMSL-SIL Integrated Towing Assistance Package Prior to Installation Cover all surfaces with tape or plastic protection film to protect against scratching and damage. EchoMaster is in no way responsible for any damage that may incur during installation. This product has been validated in the vehicles listed on the application guide only. Care must be taken when installing this accessory to ensure damage does not occur to the vehicle. -
Page 3: Recommended Tools
Installation Guide FC-CHMSL-SIL Integrated Towing Assistance Package Vehicle Preparation & Protection CAUTION Consult your vehicle owner’s manual to disconnect the battery. Do not disconnect ANY airbag connectors or indicators. Doing so may result in activating a diagnostic code. These codes will require the dealer to perform the reset procedure which may incur a reset fee. -
Page 4: Removing The Dash
Installation Guide FC-CHMSL-SIL Integrated Towing Assistance Package 4” and 8” screens only Removing the Dash Step 1 Using a plastic dash removal tool, remove the LCD display trim panel. Step 2 If installed, disconnect the heated seat connector plugs from the back of the display trim panel. - Page 5 Installation Guide FC-CHMSL-SIL Integrated Towing Assistance Package Step 4 Disconnect the 3 connectors from the back of the LCD display assembly and set aside. Steps 5 & 6 Remove the 2 x 7mm bolts from the CD mechanism. Disconnect the CD mechanism and set aside.
- Page 6 Installation Guide FC-CHMSL-SIL Integrated Towing Assistance Package Installing CHMSL Camera Step 1 Remove the 2 x T15 torx screws that secure third brake light. Step 2 Grab the light at the bottom and pull up and out, then disconnect the gray connector on the back.
- Page 7 Installation Guide FC-CHMSL-SIL Integrated Towing Assistance Package Step 4 Pull away the passenger side top rear portion of the door seal. Remove the front and rear passenger door sill as well as the passenger side kick panel cover. Step 5 Tape short camera extension cable to a long zip tie or flexible wire fishing tool.
- Page 8 Installation Guide FC-CHMSL-SIL Integrated Towing Assistance Package Installing CHSML Camera Step 7 Connect the camera power extension harness then connect the longer camera extension cable. Be sure the connections are fully seated. Step 8 Route the cable behind, down and past the rear seat belt.
-
Page 9: Module Connections
Installation Guide FC-CHMSL-SIL Integrated Towing Assistance Package Module Connections Connect the 8-pin power harness and the 16-pin main camera extension cable to module. Fasten harnesses to the bracket using zip ties through the holes provided. Please select the size of the monitor using dip switch 1 u Up for 8”... - Page 10 8” Radio - Press and hold the “BACK” button for three seconds to enter the IntelliHaul camera view. Press the “BACK” button to return to the previous screen. 4” Radio - Press and hold the “HOME” button for three seconds to enter the IntelliHaul camera view.
-
Page 11: Wiring Diagram
Installation Guide FC-CHMSL-SIL Integrated Towing Assistance Package Wiring Diagram email - gmsupport@echomaster.com (US) - tel - 866-766-2267 Illustrations are typical and may not match exact vehicle details. - Page 12 AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use above and with all State and Federal laws. EchoMaster provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conformity with those instructions or other misuse of its product.
