Summary of Contents for EchoMaster Pro PBS-MW01

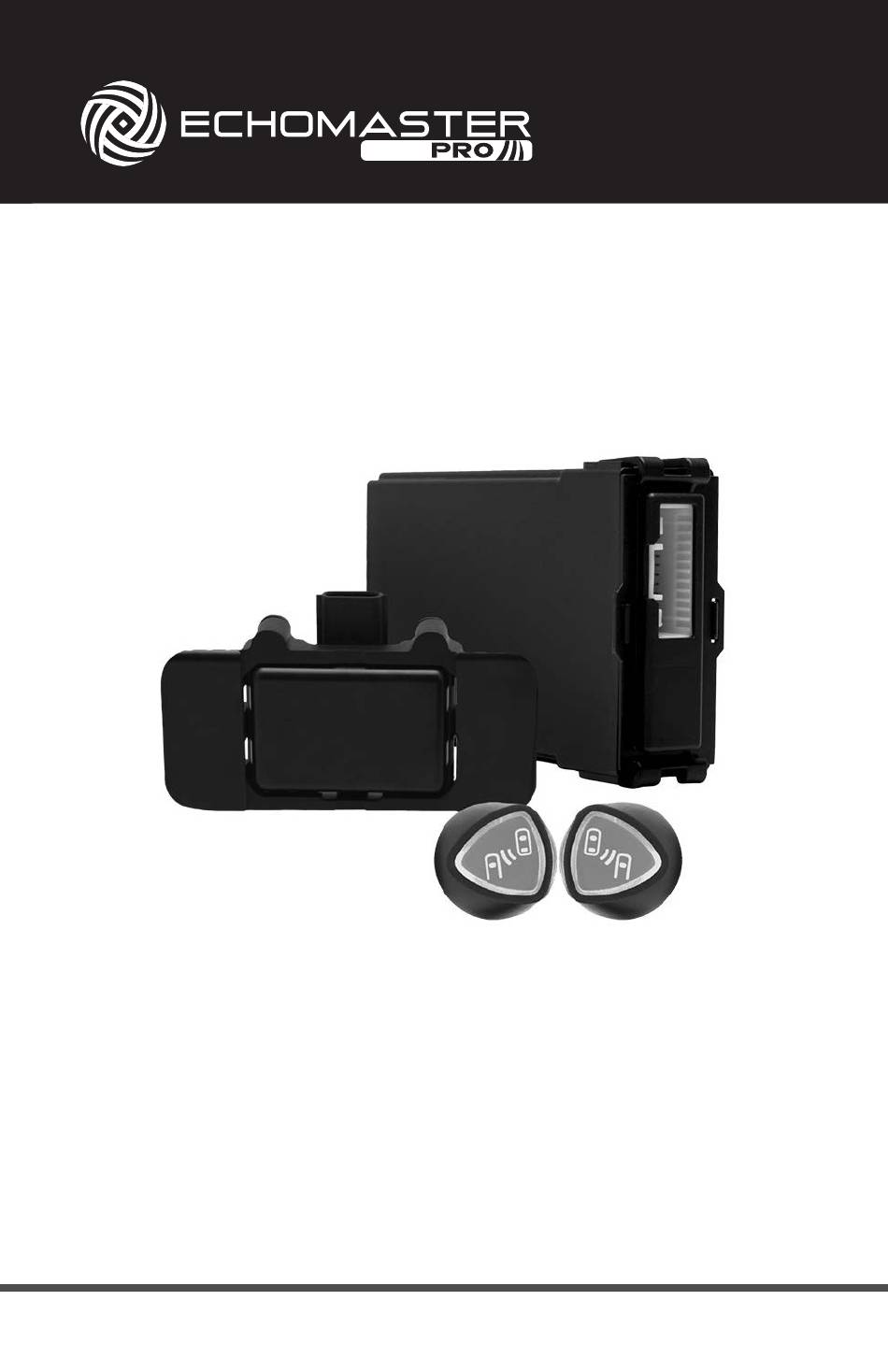

  • Page 1 OPERATION GUIDE PBS-MW01 BLIND SPOT DETECTION SYSTEM...
  • Page 3: Table Of Contents

    CONTENTS 1. WARNING ......... Page 1 2.
  • Page 4: Warning

    1. WARNING 1. THE BLIND SPOT DETECTION SYSTEM DOES NOT REPLACE ANY FUNCTIONS DRIVERS SHALL ORDINARILY PERFORM IN DRIVING A MOTOR VEHICLE, NOR DOES IT DECREASE THE NEED FOR DRIVERS TO STAY VIG- ILANT AND ALERT IN ALL DRIVING CONDITIONS, TO OBEY ALL THE SAFE DRIVING STANDARDS, PRACTICES, TRAFFIC RULES AND REGULATIONS.
  • Page 5: System Contents

    2. SYSTEM CONTENTS ITEM PICTURE Right Blind Spot Sensor Left Blind Spot Sensor Control Unit Right Indicator Left Indicator Buzzer Manual Set /Accessories BLIND SPOT DETECTION SYSTEM | 2...
  • Page 6: Introduction

    3. INTRODUCTION The Blind Spot Detection System is designed to aid in detecting vehicles that may have entered the vehicle’s blind spot zone, which is represented by the vehicles in the diagram below. The detection area is on both sides of your vehicle, extending rearward from the vehicle to approximately 30 feet beyond the bumper.
  • Page 7: Rear Cross Traffic Alert

    5. REAR CROSS TRAFFIC ALERT The Rear Cross Traffic Alert (RCTA) is activated when the vehicle is placed in ‘reverse’. An audible tone will be heard and the corresponding warning indicator lamp will flash when a pedestrian or vehicle is detected approaching and resulting in an impact of approximately 2 seconds.
  • Page 8: System Specifications

    7. SYSTEM SPECIFICATIONS ITEM SOUND SPECIFICATIONS Operating Temperature -40ºC~ +85ºC Storage Temperature -40ºC ~ +90ºC Environmental Protection Level Radar:IP67 Input Voltage Range 12V (9V – 16V) Current Consumption 500mA@12V ; 6. 0W Level I :LED On (Constant) Alarm Level Level II:LED Flash+Buzzer On Accuracy of Alarm Vehicle: >99% Specifications...
  • Page 9: Operation

    8. OPERATION Indicator Left Side Blind Spot Indicator Right Side Blind Spot Indicator POWER button System Power 1. The system will automatically activate when the ignition is turned on. The warning indicator lamps illuminate for 3 seconds during startup. 2. The system may be deactivated by pressing and holding the POWER button 3 seconds, the indicator lamps will blink twice to confirm.
  • Page 10: Error Diagnostics

    9. ERROR DIAGNOSTICS It is possible that the Blind Spot Detection System will trigger an alert even though there is no vehicle in the blind spot zone. The Blind Spot Detection System can detect objects such as: construction barrels, guard rails, lamp posts, etc. Occasional false alerts are normal. STATUS SOUND Controller HMI CAN TX Failed...
  • Page 11: Troubleshooting

    10. TROUBLESHOOTING ISSUE SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION The system does not Confirm that the IGN, Incorrect connection or respond after starting wiring, fuse, and control unit failure the engine controller are connected Damaged indicator Contact your dealer The indicator does not light up Disconnected indicator Verify connection...
  • Page 12 15500 Lightwave Dr, Suite 202, Clearwater, FL 33760 866-931-8021 www.echomaster.com support@aampglobal.com • • • REV: 0320...
