- Page 1 Installation Guide Lane Change Assistance For RAM PROMASTER (2014-2018) with Universal Monitor...

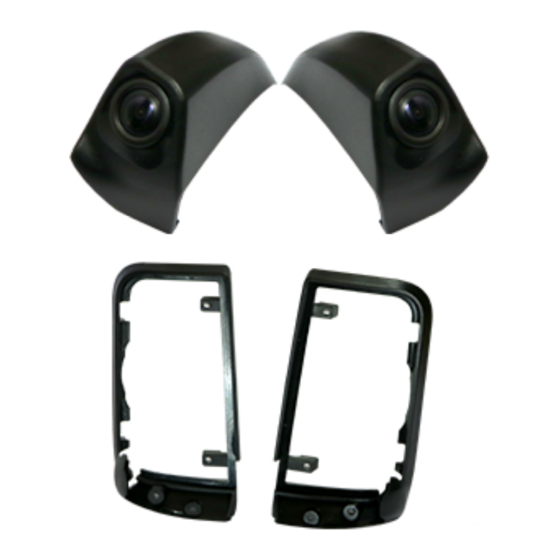

- Page 2 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER What’s In The Box FCTP-DP1504 Image Part Number Description SVC-02 Side Cameras P-RAMPM-LHD Side Mirror Cap Camera Mounts (L) 3 & 4 BSM1-SCEH 70 Inch Camera Connection Harness CAM-EXT4PRCA-HAR Front Camera Adapter Harness P-VS41.3-B...
-
Page 3: Wiring Diagram
FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Wiring Diagram Illustrations are typical and may not match exact vehicle details email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe) -
Page 4: Prior To Installation
FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Prior to Installation Cover all surfaces with tape or plastic protection film to protect against scratching and damage. EchoMaster is in no way responsible for any damage that may occur during installation. This product has been validated in the vehicles listed on the application guide only. -
Page 5: Recommended Tools
FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Vehicle Preparation & Protection CAUTION Consult your vehicle owner’s manual to disconnect the battery. Do not disconnect ANY airbag connectors or indicators. Doing so may result in activating a diagnostic code. These codes will require the dealer to perform the reset procedure which may incur a reset fee. - Page 6 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Door & Mirror Disassembly Step 1 Using a Nylon trim removal tool, remove the inner door trim panel to allow access to the mirror housing bolts. Step 2 Once again, using a trim removal tool remove the electric window switch panel to reveal the wing mirror wiring harness.
- Page 7 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Door & Mirror Disassembly - (continued) Step 5 Carefully push the mirror housing upwards and then pull towards you allowing the mirror fixing to release from door pillar. PLEASE NOTE Be sure to protect the side of the vehicle when removing the mirrors.
- Page 8 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Door & Mirror Disassembly - (continued) Step 8 To remove the Indicator bulb from the housing, twist the connector in a counter-clockwise direction. Cable Routing - Camera Harness Step 1 Using a Nylon trim removal tool,...
- Page 9 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Mirror Reassembly Standard Camera Inserts Trailer/Towing Camera Inserts Camera Insert Bracket PLEASE NOTE The following steps refer to both Normal & Trailer/Towing Camera Inserts Step 1 Turn both inserts over and check the reverse to determine the correct insert for each side of the vehicle.
- Page 10 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Mirror Reassembly - (continued) Step 3 Push the camera through the insert and snap into place. The clips on the side of the camera ensure it is secured in place. PLEASE NOTE Do not apply pressure to the camera lens.
- Page 11 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Mirror Reassembly - (continued) Step 6 Connect the camera to the harness previously routed and attach the indicator bulb back in to the housing by turning clockwise. Step 7 Once the camera is connected insert the...
- Page 12 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Cable Routing - Through Bodywork Step 1 Using a suitable draw cable, feed the camera harness through the door to where the factory wires come through the rubber grommet. Unclip the protective door harness boot and using a suitable draw cable feed the harness through into the vehicle.
- Page 13 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER NOTES: Illustrations are typical and may not match exact vehicle details email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe)
- Page 14 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Illustrations are typical and may not match exact vehicle details email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe)
- Page 15 FCTP-DP1504 Lane Change Assistance - RAM PROMASTER Illustrations are typical and may not match exact vehicle details email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe)
- Page 16 - +44(0)1420 487110 (sales) - +44(0)1420 470618 (technical) 15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760 email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) IG-FCTP-DP1504 EchoMaster is a Power Brand of AAMP Global. REV. 071818 EchoMaster.com...
