- Page 1 Installation Guide Lane Change Assistance Compatible with Standard Mirrors with Turn Signals and Universal Monitors RAM Trucks (2013-2018, 2019 Classic)
-
Page 2: What's In The Box

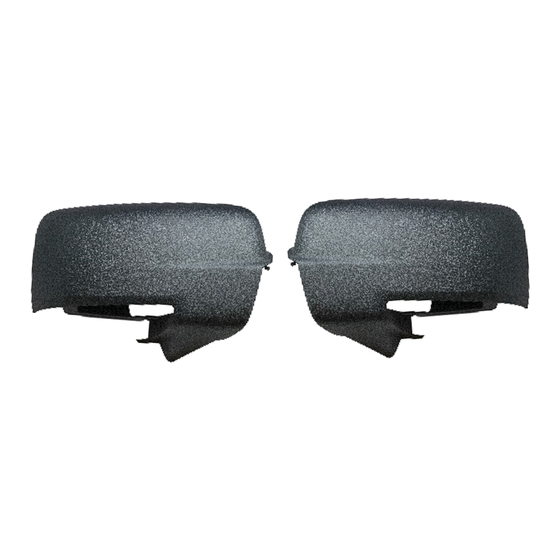

FCTP-DR1304 Lane Change Assistance - RAM Truck What’s In The Box FCTP-DR1304 Image Part Number Description SVC-02 Side Cameras P-RAMTRKSTD-TS Side Mirror Cap Camera Mounts (L&R) BSM1-SCEH 70 Inch Camera Connection Harness CAM-EXT4PRCA-HAR Camera Adapter Harness P-VS41.3-B Camera Switcher VS41-TP-HAR V3... -
Page 3: Wiring Diagram
FCTP-DR1304 Lane Change Assistance - RAM Truck Wiring Diagram BSM1-SCEH BSM1-SCEH BSM1-SCEH CAMERAS BSM1-SCEH Reverse Trigger + WHITE Left Input Trigger + GREEN Right Input Trigger + PURPLE Output Trigger + PURPLE/WHITE ACC Power 12v + RED Ground - BLACK Illustrations are typical and may not match exact vehicle details email - support@aampglobal.com... - Page 4 FCTP-DR1304 Lane Change Assistance - RAM Truck Vehicle Preparation & Protection Cover all surfaces with tape or plastic protection film to protect against scratching and damage. EchoMaster is in no way responsible for any damage that may incur during installation.
-
Page 5: Recommended Tools
FCTP-DR1304 Lane Change Assistance - RAM Truck Recommended Tools No 2 Philips Nylon Trim 10mm Torx Painters Routing Screwdriver Removal Tools Socket T15 & T20 Tape Tool If you are unsure of any vehicle trim removal process consult the OEM service manual. - Page 6 FCTP-DR1304 Lane Change Assistance - RAM Truck Door Panel & Mirror Removal Step 1 Remove upper door pillar trim. Step 2 Using a small pry tool, remove panel behind door handle. Panel releases from the top. Step 3 Remove 1 x Philips screw from door handle and then remove door handle trim.
- Page 7 FCTP-DR1304 Lane Change Assistance - RAM Truck Door Panel & Mirror Removal - (cont) Step 5 Remove 6 x T20 Torx around perimeter of door panel. Note: These are plastic 2-part fasteners. Use a hand tool and light pres- sure to remove. The clip part of the fastener will stay in the door.
-
Page 8: Mirror Disassembly
FCTP-DR1304 Lane Change Assistance - RAM Truck Mirror Disassembly Inside the mirror with top clips released. Backside of mirror glass PLEASE NOTE Reference images above to see how mirror glass is attached to the adjuster base. The top two attachment points are clips that lock into square openings. The lower attachment is a“hinge”... - Page 9 FCTP-DR1304 Lane Change Assistance - RAM Truck Mirror Disassembly - (cont) Step 2 Remove 3 x T20 Torx screws (2a). Remove the back cover enough to unplug the turn signal, then completely remove the cover (2b). Remove the turn signal assembly from the back cover.
- Page 10 FCTP-DR1304 Lane Change Assistance - RAM Truck Camera & Mirror Assembly Step 1 Determine the correct new side camera cap (LH or RH) and snap the turn signal indicator into place (1a). Insert a SVC-02 side camera into the cap (1b).
- Page 11 FCTP-DR1304 Lane Change Assistance - RAM Truck Camera & Mirror Assembly - (cont) Step 4 Reinstall the front surround / top arm cover. Then reinstall the new back cover, locking both pieces together. Reinstall the 3 x T20 Torx screws (4a).
-
Page 12: Cable Routing
FCTP-DR1304 Lane Change Assistance - RAM Truck Cable Routing Step 1 Route the factory mirror wire harness and clip back into place. Plug in mirror connec- tors at the door module. Route and secure the camera cable to the mirror harness. - Page 13 FCTP-DR1304 Lane Change Assistance - RAM Truck Cable Routing - (cont) Step 3 - (cont) Driver Door (LH): The left hand door has plugs in both locations on the body side connector (3a). Remove the rubber grom- met. Remove both connectors and cut a groove for the camera harness to pass through (3b).
- Page 14 FCTP-DR1304 Lane Change Assistance - RAM Truck Notes: Illustrations are typical and may not match exact vehicle details email - support@aampglobal.com tel - 1-800-477-2267...
- Page 15 FCTP-DR1304 Lane Change Assistance - RAM Truck Illustrations are typical and may not match exact vehicle details email - support@aampglobal.com tel - 1-800-477-2267...
- Page 16 If you do not agree, please discontinue use immediately and contact EchoMaster. This product is intended for off-road use and passenger use only. 15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760 email - support@aampglobal.com tel - 1-800-477-2267 EchoMaster is a Power Brand of AAMP Global. EchoMaster.com IG-FCTP-DR1304 REV. 190918...
