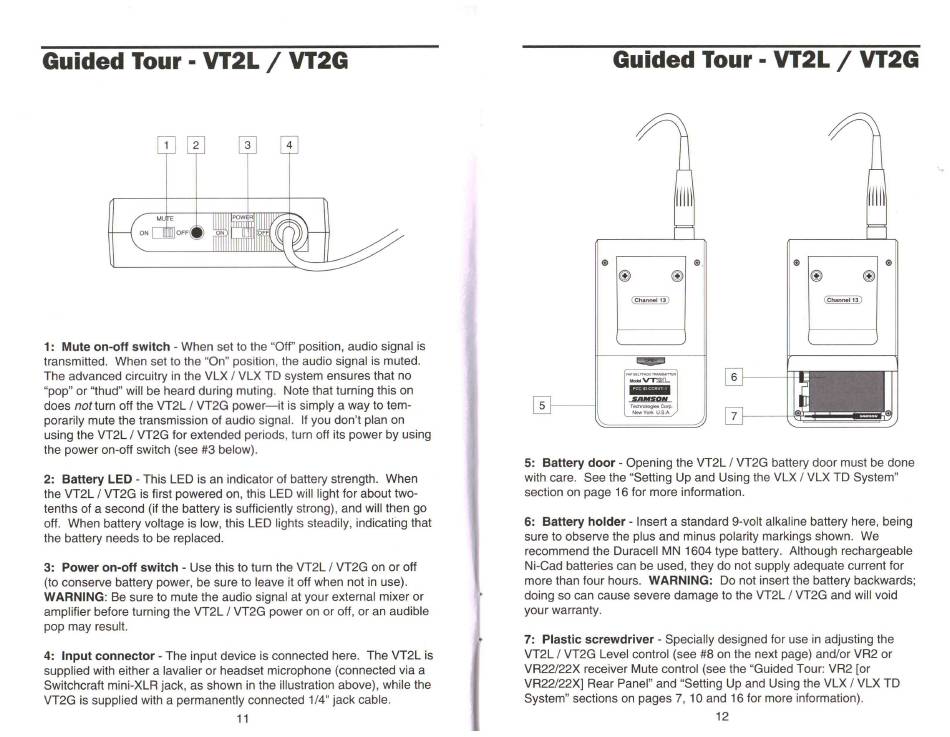

uided Tour - VT2L / VT2
uided Tour - VT2L / VT2
3
1
® ©
(Channel 13) (Channel 13)
x.
y
6
5
7
y y
FCC ID CCRVT-1
©
: Battery LED - This LED is an indicator of battery strength. When
the VT L I VT G is first powered on, this LED will light for about two-
tenths of a second (if the battery is sufficiently strong), and will then go
off. When battery voltage is low, this LED lights steadily, indicating that
the battery needs to be replaced.
3: Power on-off switch - Use this to turn the VT L I VT G on or off
(to conserve battery power, be sure to leave it off when not in use).
WARNIN : Be sure to mute the audio signal at your external mixer or
amplifier before turning the VT L / VT G power on or off, or an audible
pop may result.
4: Input connector - The input device is connected here. The VT L is
supplied with either a lavalier or headset microphone (connected via a
Switchcraft mini-XLR jack, as shown in the illustration above), while the
VT G is supplied with a permanently connected 1/4" jack cable.
7: Plastic screwdriver - Specially designed for use in adjusting the
VT L / VT G Level control (see #8 on the next page) and/or VR or
VR / X receiver Mute control (see the " Guided Tour: VR [or
VR / X] Rear Panel " and " Setting Up and Using the VLX / VLX TD
System " sections on pages 7, 10 and 16 for more information).
1
1: Mute on-off switch - When set to the " Off " position, audio signal is
transmitted. When set to the " On " position, the audio signal is muted.
The advanced circuitry in the VLX / VLX TD system ensures that no
" pop " or " thud " will be heard during muting. Note that turning this on
does not turn off the VT L / VT G power — it is simply a way to tem ­
porarily mute the transmission of audio signal. If you don ' t plan on
using the VT L I VT G for extended periods, turn off its power by using
the power on-off switch (see #3 below).
5: Battery door - Opening the VT L / VT G battery door must be done
with care. See the " Setting Up and Using the VLX / VLX TD System "
section on page 16 for more information.
6: Battery holder - Insert a standard 9-volt alkaline battery here, being
sure to observe the plus and minus polarity markings shown. We
recommend the Duracell MN 1604 type battery. Although rechargeable
Ni-Cad batteries can be used, they do not supply adequate current for
more than four hours. WARNIN : Do not insert the battery backwards;
doing so can cause severe damage to the VT L / VT G and will void
your warranty.
