Samson VLX Owner's Manual page 6

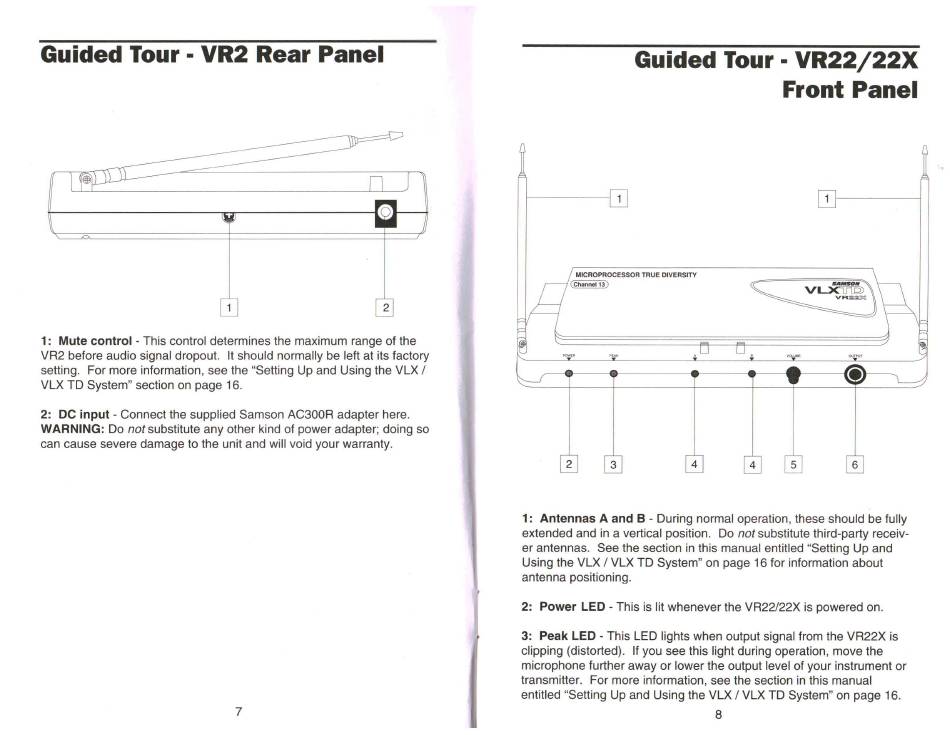

uided Tour - VR2 Rear Panel
w
2
©
2 3 5 6
2: Power LED - This is lit whenever the VR22/22X is powered on.
7
2: DC input - Connect the supplied Samson AC300R adapter here.
WARNIN : Do ot substitute any other kind of power adapter; doing so
can cause severe damage to the unit and will void your warranty.
1: Antennas A and B - During normal operation, these should be fully
extended and in a vertical position. Do not substitute third-party receiv­
er antennas. See the section in this manual entitled " Setting Up and
Using the VLX / VLX TD System " on page 6 for information about
antenna positioning.
1 : Mute control - This control determines the maximum range of the
VR2 before audio signal dropout. It should normally be left at its factory
setting. For more information, see the " Setting Up and Using the VLX /
VLX TD System " section on page 6.
VDCTO
□
Guided Tour - VR22/22X
Front Panel
3: Peak LED - This LED lights when output signal from the VR22X is
clipping (distorted). If you see this light during operation, move the
microphone further away or lower the output level of your instrument or
transmitter. For more information, see the section in this manual
entitled " Setting Up and Using the VLX I VLX TD System " on page 6.
8
J
ELJ
MICROPROCESSOR TRUE DIVERSITY
(Channel 3)
• ------------ •-
