Samson VLX Owner's Manual page 5

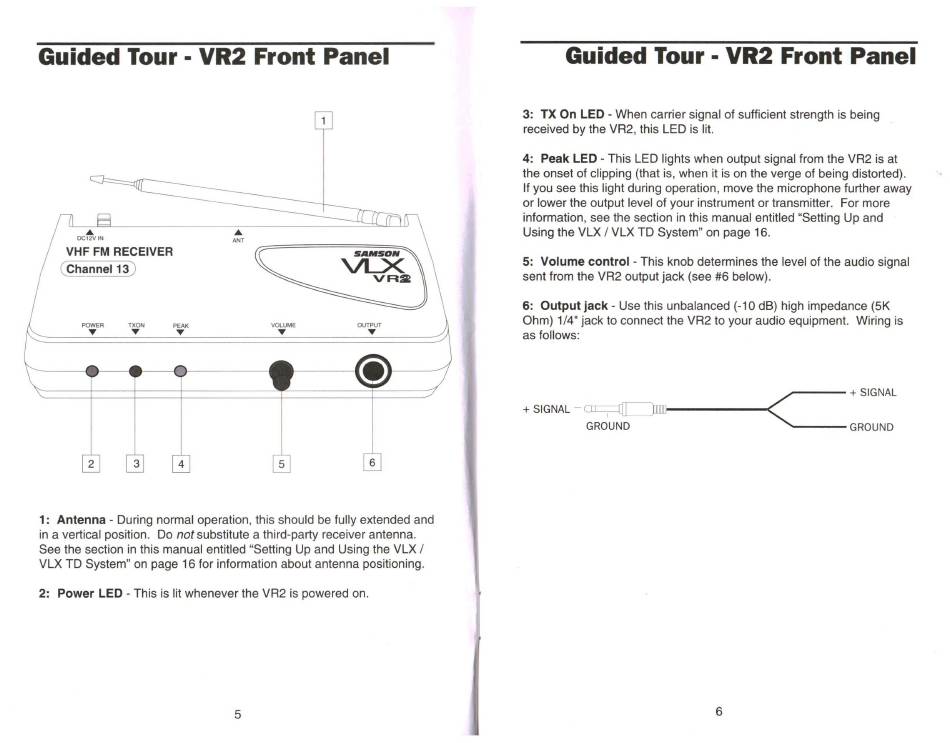

uided Tour - VR2 Front Panel uided Tour - VR2 Front Panel
NT
OUTPUT
POWER TXON
VOLUME
PE K
t
o
o
+ SIGN L
<
GROUND
3 2
4 5
2: Power LED - This is lit whenever the VR2 is powered on.
6
5
5: Volume control - This knob determines the level of the audio signal
sent from the VR2 output jack (see #6 below).
3: TX On LED - When carrier signal of sufficient strength is being
received by the VR2, this LED is lit.
4: Peak LED - This LED lights when output signal from the VR2 is at
the onset of clipping (that is, when it is on the verge of being distorted).
If you see this light during operation, move the microphone further away
or lower the output level of your instrument or transmitter. For more
information, see the section in this manual entitled " Setting Up and
Using the VLX / VLX TD System " on page 16.
1 : Antenna - During normal operation, this should be fully extended and
in a vertical position. Do ot substitute a third-party receiver antenna.
See the section in this manual entitled " Setting Up and Using the VLX /
VLX TD System " on page 16 for information about antenna positioning.
6: Output jack - Use this unbalanced (-10 dB) high impedance (5K
Ohm) 1/4" jack to connect the VR2 to your audio equipment. Wiring is
as follows:
+ SIGN L
GROUND
AM ON
\/l — X
\AFt2
n\
h
▲
DC12V IN
VHF FM RECEIVER
Channel 13
