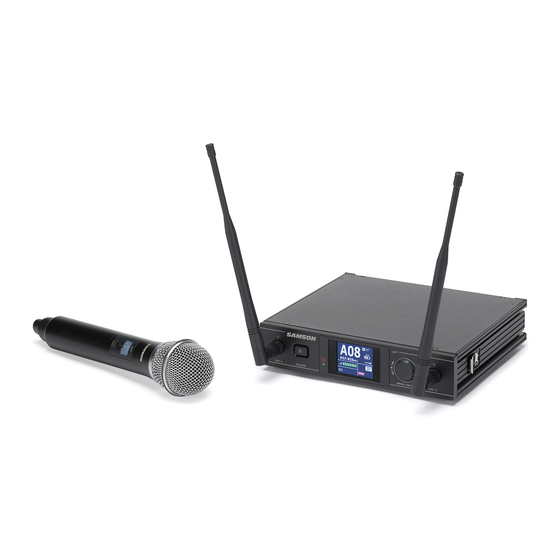

Samson SynthSeven Owner's Manual

Professional uhf wireless system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Professional UHF Wireless System
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SynthSeven and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samson SynthSeven

Summary of Contents for Samson SynthSeven

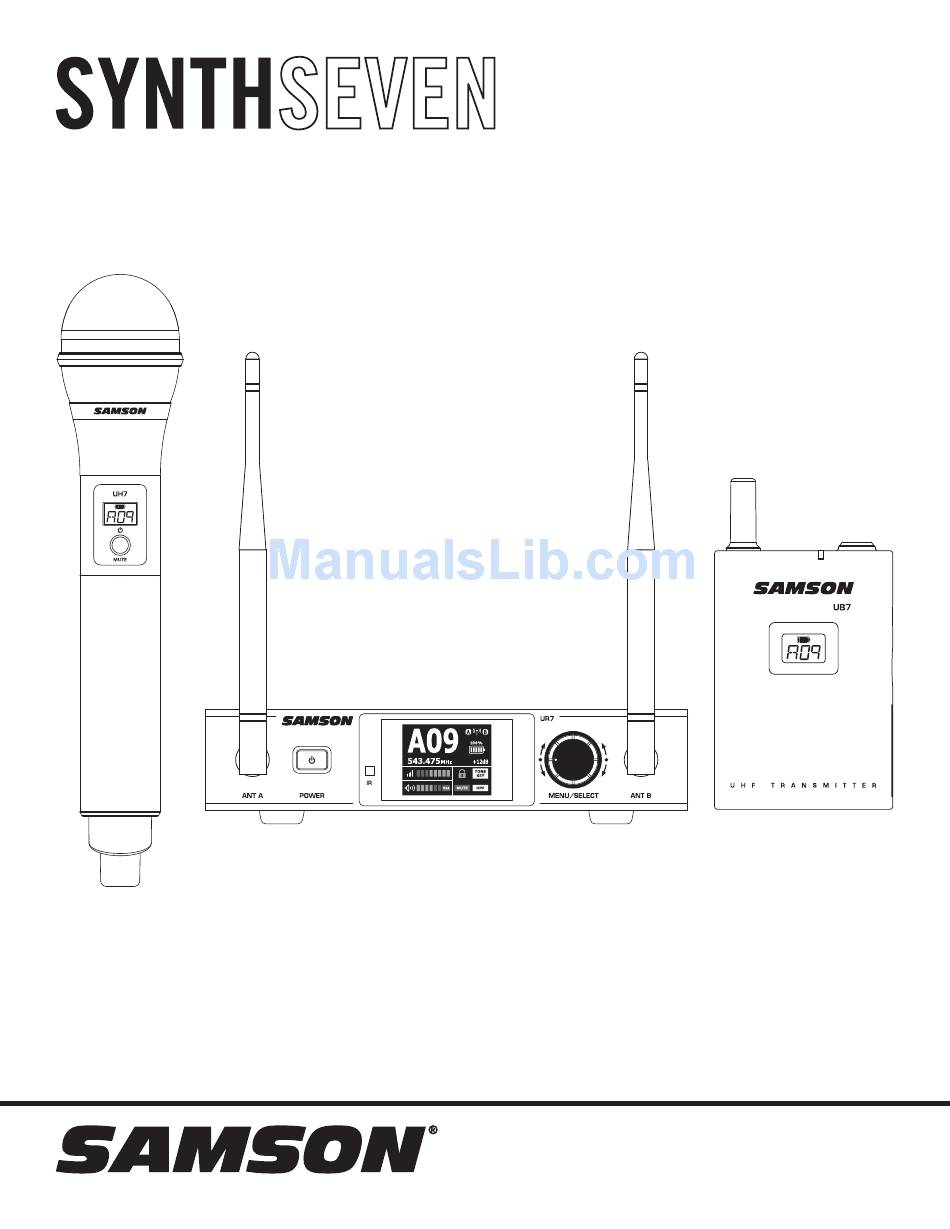

  • Page 1 Professional UHF Wireless System OWNER'S MANUAL...
  • Page 2 For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones. Copyright 2014, Samson Technologies Corp. v1.4 Samson Technologies 45 Gilpin Avenue...

  • Page 3: Important Safety Information

    Important Safety Information 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 4 Important Safety Information FCC and Industry Canada Rules and Regulations Samson wireless receivers are certified under FCC Rules part 15 and transmitters are certified under FCC Rules part 74. Licensing of Samson equipment is the user’s responsibility and licensability depends on the user’s classification, application and frequency selected.
  • Page 5 Should your wireless system ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton.

  • Page 6: Quick Start

    Quick Start In order for your wireless system to work correctly, both the receiver and transmitter must be set to the same channel. Set up the receiver: Physically place the UR7 receiver where it will be used. The general rule of thumb is to maintain “line of sight” between the receiver and transmitter so that the person using or wearing the transmitter can see the receiver.
  • Page 7 Quick Start Multiple System Setup Press and hold the power button to turn on the UR7 receiver. Press the Menu/Select button to enter the Main Menu. Rotate the Menu/Select encoder to highlight GROUP & CHANNEL and press the MENU/SELECT button to enter the menu. Set each receiver to the same Group.
  • Page 8 UR7 Receiver Callouts 1. Antennas Jacks - The BNC antenna jacks allow full rotation for optimum placement. In normal operation, both antennas should be placed in a vertical position. 2. POWER Switch - Press and hold this to power the receiver on or off. A quick press of the button will move back through the menus.
  • Page 9 UB7 Callouts 1. Input Connector - Connect the input device via the mini-XLR connector. 2. Power/Mute Switch - Press and hold to turn the unit on or off. Press and release to mute or unmute the transmitter. 3. Antenna - Permanently attached transmitter antenna. 4.
  • Page 10 UH7 Callouts 1. LCD Display - Displays the current group,channel and battery level information. 2. Power/Mute Switch - Press and hold to turn the unit on or off. Press and release to mute or un-mute the transmitter. 3. UNLOCK/LOCK Switch - Locking the system controls prevents accidental muting or channel adjustment during performance.
  • Page 11 UR7 Operating Menu The UR7 receiver features a user friendly operating menu, with extensive features and adjustable parameters. This enables the receiver and transmitter to be quickly and easily set up for performance. Controls POWER Button Press and hold switches the receiver on and off Short press cancels an entry and returns to the current menu Short press moves back through the menus.

  • Page 12: Menu Parameters

    Menu Parameters Group & Channel Group Manually adjusts the operating Group Group & Channel Channel Manually adjusts the channel with the selected Group Group Channel Scans the current selected group channels and selects the cleanest Group Scan Group Scan signal to use for optimal performance IR Set Sends the group and channel information to the UH7 and UB7 IR Set...
  • Page 13 Group & Channel Menu Group & Channel Group & Channel Group & Channel Group & Channel Group Group Group Group Channel Channel Channel Channel Group Scan Group Scan Group Scan Group Scan IR Set IR Set IR Set IR Set Back Back Back...
  • Page 14 Frequency Select Menu Frequency Select Frequency Select 518.000 546.850 Scan Spectrum Scan Spectrum IR Set IR Set Back Back From the main performance page, press the MENU/SELECT Button to enter the Main Menu. With FREQUENCY SETUP highlighted, press the MENU/SELECT button to enter the FREQUENCY SETUP sub- menu.

  • Page 15: Audio Setup

    Audio Setup Audio Setup Audio Setup Audio Level Audio Level Back Back From the main performance page, press the MENU/SELECT Button to enter the Main Menu. With AUDIO SETUP highlighted, press the MENU/SELECT button to enter the AUDIO SETUP sub-menu. Setting the Audio Level Rotate the cursor to select the AUDIO LEVEL parameter.
  • Page 16 Advanced Setup Advanced Setup Advanced Setup Squelch Squelch Tone Key Tone Key Contrast Contrast Lock Lock Back Back The Tone Key is an inaudible fre- quency that is transmitted along Enabling the Tone Key with the audio signal. It assists in Rotate the cursor to select the TONE KEY parameter.

  • Page 17: Rack Mounting

    Rack Mounting The UR7 receiver can be installed into a standard 19” rack for transport or permanent installation using the included rack ears. Affix the included rack ears to each side of the UR7 receiver. Secure the rack ears in place using the screws provided.

  • Page 18: Channel Plans

    629.475 629.550 629.675 630.200 630.250 630.450 630.475 630.550 632.700 632.900 632.925 633.000 633.125 633.650 633.700 633.900 633.925 634.000 * Not for use in the USA and Canada. For questions regarding available channels in your area contact your local Samson distributor.

  • Page 19: Specifications

    Image Rejection >50 dB Operating Voltage: Dimensions (LxWxH) 8.5” x 1.8” x 7.4” / 215mm x 45mm x 189mm Weight: 3.1lb / 1.4kg At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice.
  • Page 20 Samson Technologies 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
