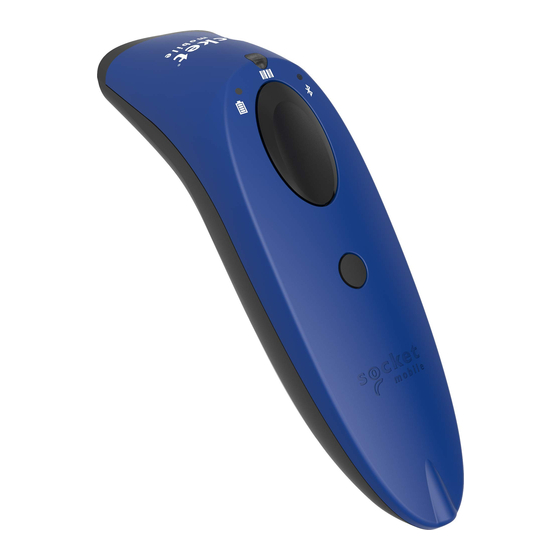

S700, S730, S740
SocketScan
700 Series
®
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SocketScan 700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Socket SocketScan 700 Series

Summary of Contents for Socket SocketScan 700 Series

  • Page 1 S700, S730, S740 SocketScan 700 Series ® User Guide...

  • Page 2: Table Of Contents

    Table of Contents Package Contents Optional Charging Accessories Product Information Attach Wrist Strap Charge the Battery Power Adapter Powering On/Off Scanning Barcodes Bluetooth Connection Modes 11-12 Bluetooth Connection Roles Data Mode-For SPP Mode Only Bluetooth ReConnection How to setup your scanner: Download our Companion App 16-18 Setup using Application Mode...
  • Page 3 Table of Contents Restore Method AA NiMH Battery Replacement 27-28 Quick Programming 29-34 Status Indicators 35-38 Helpful Resources Battery Warning, Safety, Bluetooth, Compliance & Warranty 40-51...

  • Page 4: Package Contents

    Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade...

  • Page 5: Optional Charging Accessories

    Optional Charging Accessories Available separately For all optional accessories visit our online store. Charging Stand AC Power Supply Charging Dock International Adapters available...

  • Page 6: Product Information

    Power Connector Stand Attachment Lanyard Eyelet Charging pins Socket Mobile’s barcode readers can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode readers can be wiped clean with a Sani-Cloth. Warning: DO NOT IMMERSE IN WATER (barcode reader’s mechanics could be damaged) DO NOT USE BLEACH FOR CLEANING (barcode reader’s material property may...

  • Page 7: Attach Wrist Strap

    Attach Wrist Strap Attach the Wrist Strap (optional) 1. Detach the string loop of the tether from the wrist strap. 2. Feed the string loop through the eyelet. 3. Pull the tether through the string loop. 4. Pull tight so the string loop is secure. 5.

  • Page 8: Charge The Battery

    Charge the Battery Charging Requirements: • Min 5.0 VDC, 1 AMP • Max 5.5 VDC, 3 AMPs Power Adapter Important: Please ensure that only rechargeable NiMH batteries are used in this product. Plug in the power adapter and the barcode reader will beep twice. Prior to first use - Fully charge your barcode reader.

  • Page 9: Powering On/Off

    Powering On/Off Power button Powering On: Powering Off/ Disconnecting: Press and hold down the small power Press and hold down the small button until the Battery light turns power button until the barcode on and the barcode reader beeps reader beeps twice (high-low) and all twice (low-high).

  • Page 10: Scanning Barcodes

    Scanning Barcodes 1D/2D Barcode and OCR Aim the scan beam straight across the entire barcode Scan button Scanning Barcodes 1. Hold the barcode reader 4-5 inches away from the barcode. Note: Distance between the reader and barcode depend on the size of the barcode.

  • Page 11: Bluetooth Connection Modes

    Bluetooth Connection Modes Operating System Connection Options Bluetooth Operating Bluetooth Apple Bluetooth HID Systems Devices Serial Support (OS) Support Specific (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & Apple iOS iPad Windows Windows 8, 10, 11 Mac OS X 10.4 to 10.X Mac OS Mac Books, Mac...
  • Page 12 Use this mode with an of data Android app designed for 3. Mode recommended for applications Socket Mobile barcode supporting Socket Mobile readers readers. • NO software installation needed Basic Keyboard Mode • Connects to most devices • Good for barcodes containing small amounts...

  • Page 13: Bluetooth Connection Roles

    Bluetooth Connection Roles Advanced users only. Note: For the S730 laser barcode reader. Print the barcode to scan. Basic Mode (HID) Keyboard Changes a barcode reader in HID-Peripheral mode to HID-Keyboard mode. For Mac OS, Apple iOS, and other smart devices. Basic Keyboard Mode (HID) Changes a barcode reader in HID-Keyboard mode to HID-Peripheral mode.

  • Page 14: Data Mode-For Spp Mode Only

    Data Mode-For SPP Mode Only Advanced users only. Note: For the S730 laser barcode reader. Print the barcode to scan. Packet Mode (default) Configures the barcode reader to transmit decoded data in packet format. Raw Mode - Android and Windows only Configures the barcode reader to transmit decoded data in raw (unpacketed) format.

  • Page 15: Bluetooth Reconnection

    Bluetooth ReConnection For all Bluetooth Connection Modes. Note: For the S730 laser barcode reader. Print the barcode to scan. Important! After scanning this command barcode, power off and power on the barcode reader to make sure it is configured properly. Enable Automatic Reconnection from barcode reader (default) Configure the barcode reader to automatically initiate a connection to the last paired computer/device after the barcode reader is powered on.

  • Page 16: Download Our Companion App

    App Mode, so it can be controlled by other apps, such as Shopify and Square, to name a couple of the 1000+ apps available. The Socket Mobile Companion app is designed to ensure you get the maximum utility benefits from your Socket Mobile devices.

  • Page 17: Apple

    3. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth devices search will begin. 4. Tap Socket S7xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the barcode reader blue LED will stop blinking and turn solid blue.
  • Page 18 Setup - Apple iOS Application Mode 5. Launch your barcode reader-enabled Application. The barcode reader will beep once indicating that it is connected to the appropriate application. Now you are ready to scan barcodes! Please check with your barcode reader application vendor or visit www.socketmobile.com/appstore to confirm your barcode reader-enabled application supports the barcode reader.
  • Page 19 3. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket S7XX[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue.
  • Page 20 Open. 5. Click the “Start” button and follow the instructions in the wizard. 6. Once complete, you will be ready to scan using Socket’s keyboard emulation (this should be turned off if you have an application that supports the CaptureSDK) Note: For the S730 laser barcode reader.

  • Page 21: Apple

    Setup - iOS Basic Keyboard Mode In this mode the barcode reader functions and communicates similar to a keyboard. Therefore, barcode reader will work with Safari, Notes, and any other application that support an active cursor. 1. Power on the barcode reader. Make sure the barcode reader is discoverable (unpaired).

  • Page 22: Android

    Setup - Android Basic Keyboard Mode Android In this mode the barcode reader functions and communicates similar to a keyboard. Therefore, barcode reader will work with Notes, and any other application that supports an active cursor. 1. Power on the barcode reader. Make sure the barcode reader is discoverable (unpaired) and the blue light blinks fast.

  • Page 23: Windows

    Devices search will begin. 2. Scan barcode below. 3. Tap Socket S7XX[xxxxxx] in the list of Devices found. After a few seconds the status will change to “Connected” or “Paired” and the barcode reader blue light will stop blinking and turn solid blue.

  • Page 24: Pairing Reset (Bluetooth Connection)

    Pairing Reset This procedure will put the barcode reader in discoverable mode. If the barcode reader is paired with a device, unpair it before trying to connect to a different device. Step 1: Remove or forget the barcode reader from the Bluetooth list on the host device.

  • Page 25: Factory Reset

    Factory Reset Configures the barcode reader to factory defaults. The barcode reader powers off after scanning this barcode. Or, follow the Factory Reset button sequence: 1. Power ON the barcode reader. 2. Press and hold the scan button. 3. Tap the power button once while continuing to press the scan button. Quickly press and release the power button 4.

  • Page 26: Restore Method

    Restore Method NOTE: If your barcode reader remains in an unresponsive state after following the Factory Reset, use the Restore Method. The Restore Method should be the last attempt used to revive an unresponsive barcode reader. It will reinitialize the core hardware. 1.

  • Page 27: Aa Nimh Battery Replacement

    AA NiMH Battery Replacement Step 1: Remove Battery Door Use screw driver to loosen screw and remove battery door. Step 2: Remove Battery Use a flat head screw driver and place in the top right corner to gently push the battery out.
  • Page 28 AA NiMH Battery Replacement Step 3: Insert New Battery Use only NiMH Rechargable batteries. Insert follow battery +/- indicators. Purchase new battery on the SocketStore. Step 4: Secure Battery Door Ensure the battery door is properly placed, then screw the battery door back...

  • Page 29: Quick Programming

    Quick Programming Scan command barcode(s) to quickly configure the barcode reader. Important! Make sure the barcode reader is not connected to a host computer or device before scanning a command barcode! For custom prefix and suffix, contact dataediting@socketmobile.com (Note: For the S730 laser barcode reader. Print the barcode to scan). Prefix/Suffix Suffix- Carriage Return Configures the barcode...
  • Page 30 Quick Programming Scan one of the barcodes to enable/disable vibrate and beep settings. (Note: For the S730 laser barcode reader. Print the barcode to scan). Vibrate/Beep Modes Vibrate ON (default) Enables barcode reader to vibrate to indicate successful scans. Vibrate OFF Disables barcode reader from vibrating to indicate...
  • Page 31 Quick Programming Scan one of the barcodes to reconfigure the barcode reader to remain powered on for a longer time. (Note: For the S730 laser barcode reader. Print the barcode to scan). Active Modes 2 Hours (default) Barcode reader powers off in 2 hours when idle/ inactive while connected and 5 minutes when...
  • Page 32 Quick Programming Scan one of the barcodes to configure the barcode reader to automatically scan barcodes. Command barcode is for model S740 only. Presentation modes Mobile Mode (default) Reverts back to manual scan mode. #FNB 41FBA50000# Auto Mode (recommended) Configures the sccanner to switch to presentation mode when power is detected on the charging pins.
  • Page 33 Quick Programming These barcodes are to configure the barcode reader for different languages using Microsoft Windows keyboard layout. Scan only when the barcode reader is in Basic Keyboard Mode (HID profile). (Note: For the S730 laser barcode reader. Print the barcode to scan). HID Keyboard Language Settings English (default) English UK...
  • Page 34 Quick Programming (Note: For the S730 laser barcode reader. Print the barcode to scan). HID Keyboard Language Settings Japanese Polish Spanish Swedish ANSI Emulation *Can be slower on Windows System...

  • Page 35: Status Indicators

    Status Indicators Battery Charging when plugged LED Activity Meaning into Power Supply Blinking Yellow Charging the battery Solid Green Battery is 100% full Battery Status When not LED Activity Meaning connected to power supply Solid Green Battery capacity from 100% to 25% Solid Yellow Battery capacity from 25% to 10% Warning...
  • Page 36 Status Indicators Bluetooth LED Activity Meaning Quick Blinking Blue Discoverable - waiting for a host (2 blinks every Bluetooth connection. second) Barcode reader is attempting to connect to the last known Bluetooth Slow Blinking Blue host device. After 1 minute of (1 blink every second) blinking, barcode reader will stop searching.
  • Page 37 Status Indicators Beep Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off High-High Tone Power Supply detected and barcode reader started charging 1 Low Beep Barcode reader has toggled on-screen keyboard or keyboard toggle feature is enabled (iOS devices only) 1 Beep Barcode reader connected to device and is ready to scan barcodes...
  • Page 38 Status Indicators Vibrate Meaning Vibrate Data successfully scanned. Command Barcodes are available on page to modify beep and vibrate settings. If you are using a barcode reader-enabled application, typically the application provides settings for beep, and vibrate settings. Configuration Settings Time after powering on Barcode Bluetooth mode reader...

  • Page 39: Helpful Resources

    Technical Support & Product Registration: https://www.socketmobile.com/support Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: https://www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://www.socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Programming Guide (Advanced Barcode reader Configurations) can be download at:...

  • Page 40: Battery Warning, Safety, Bluetooth, Compliance & Warranty

    Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment. Do not charge the SocketScan barcode reader using an AC adapter when operating the unit outdoors, or in the rain.
  • Page 41 Bluetooth Device United States FCC ID: T9J-RN42 LUBMA41 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 42 Bluetooth Device United States FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 1.5 centimeters (15mm) between the radiator and your body.
  • Page 43 Bluetooth Device Canada 6514A-RN42 2529A-MA41-S7 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
  • Page 44 Bluetooth Device Europe CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: Applicable Directives: •...
  • Page 45 Bluetooth Device JAPAN Telec Marking Compliance R201-125709 Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.
  • Page 46 Battery Warning Statements This device contains two AA rechargeable NiMH replaceable batteries. Stop charging SocketScan barcode readers if charging is not completed within 24 hours. (Look into replacing the battery). Stop charging the battery if the SocketScan barcode reader case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
  • Page 47 Battery Warning Statements • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and promptly dispose.
  • Page 48 ATTENTION - LUMIERE LASER NE PAS 650nm REGARDER LE RAYON. CLASSE 2 PRODUIT LASER 1.0mw Complies with Laser Notice 50, dated June 24, 2007 Complies with IEC/EN 60825-1:2007, IEC/EN60825-1:2014 Manufacturer Name: Socket Mobile, Inc. MANUFACTURER ADDRESS: 39700 Eureka Drive, Newark, CA 94560, USA...
  • Page 49 Regulatory Compliance CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
  • Page 50 Socket Mobile Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
  • Page 51 Extended Warranty SocketCare SocketCare Extended Warranty Coverage Purchase SocketCare within 60 days from the date of purchase of the reader. Product Warranty: The barcode reader’s warranty period is one year from the date of purchase. Consumables such as batteries and charging cables have a limited warranty of 90 days.
