Socket 7X Quick Start Manual

Quick Start Guide

®
Bluetooth Cordless Hand Scanner (CHS)
7X, 7XRx, 7Xi and 7XiRx — 2D Models
Charging cradle
sold separately.
This document pertains to the following CHS models:
7X SKU# CX2854-1276 (P/N 8550-00036, Rev D or later)
7XRx SKU# CX2856-1278 (P/N 8550-00047, Rev D or later)
7Xi SKU# CX2864-1336 (P/N 8550-00059)
7XiRx SKU# CX2866-1338 (P/N 8550-00060)
The part number (P/N) is labeled inside the battery compartment.
© 2010-2011 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, SocketScan, Socket Bluetooth Cordless Hand Scanner, and Business Mobility Now! are registered
trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is
under license. Apple, iPad, iPhone, iPod touch, and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a trademark of Apple Inc. All other
trademarks and trade names contained herein may be those of their respective owners.
LED
Trigger
button
Power button
Thank you for choosing Socket!

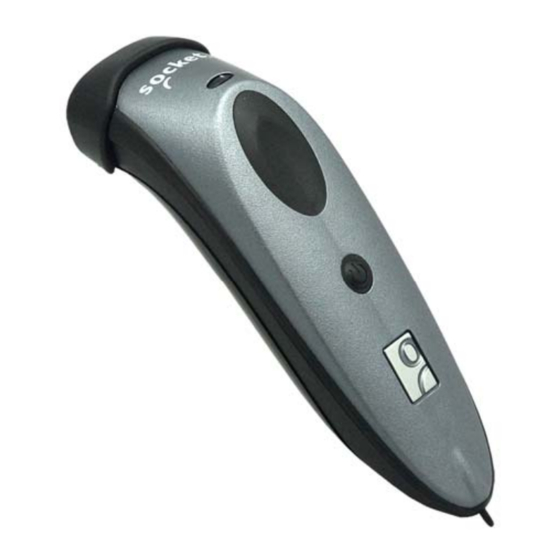

The Socket Bluetooth Cordless Hand Scanner (CHS) Series 7 is a line of portable handheld
barcode scanners that are small, light, comfortable to use, and enable you to read data
from 2D and 1D barcodes into a wide variety of computers, smartphones, and PDAs. The
®
versions 7Xi and 7XiRx are also Apple
mobile digital devices.
Package Contents
•
CHS barcode scanner (2D model) with charger and lanyard
•
CD with software and documentation
Software and Documentation Downloads:
There may be updates to the software and manuals included in the package. Get the latest
from: http://www.socketmobile.com/support/downloads/
• User's Guide: Provides complete installation, usage, and configuration instructions.
Available on the SocketScan 10 CD or download from Socket website.
• Command Barcodes Sheet: Enables you to change the scanner settings. Many
command barcodes are provided at the end of this Quick Start Guide. For a complete set
of command barcodes, please download the Command Barcodes Sheet.
For instructions for Intermec CK30 / CK31, please visit:
http://www.socketmobile.com/pdf/data-collection/chs-series7-ck30_qs.pdf
Product Registration:
Need to contact technical support? Want to opt-in to receive special offers? Register your
product online: http://support.socketmobile.com/
Alternatively, if you install SocketScan 10, you can register the CHS through the software.
Technical Support:
• Online Knowledge Base:
http://support.socketmobile.com/EU_S1a.asp
• Online Requests: Register your product and submit an inquiry.
http://support.socketmobile.com
• Phone: +1-510-933-3020
USA/Canada 800-279-1390
® ®
iOS certified for iPad , iPhone and iPod touch
EU +49 9401 5299 036
®
