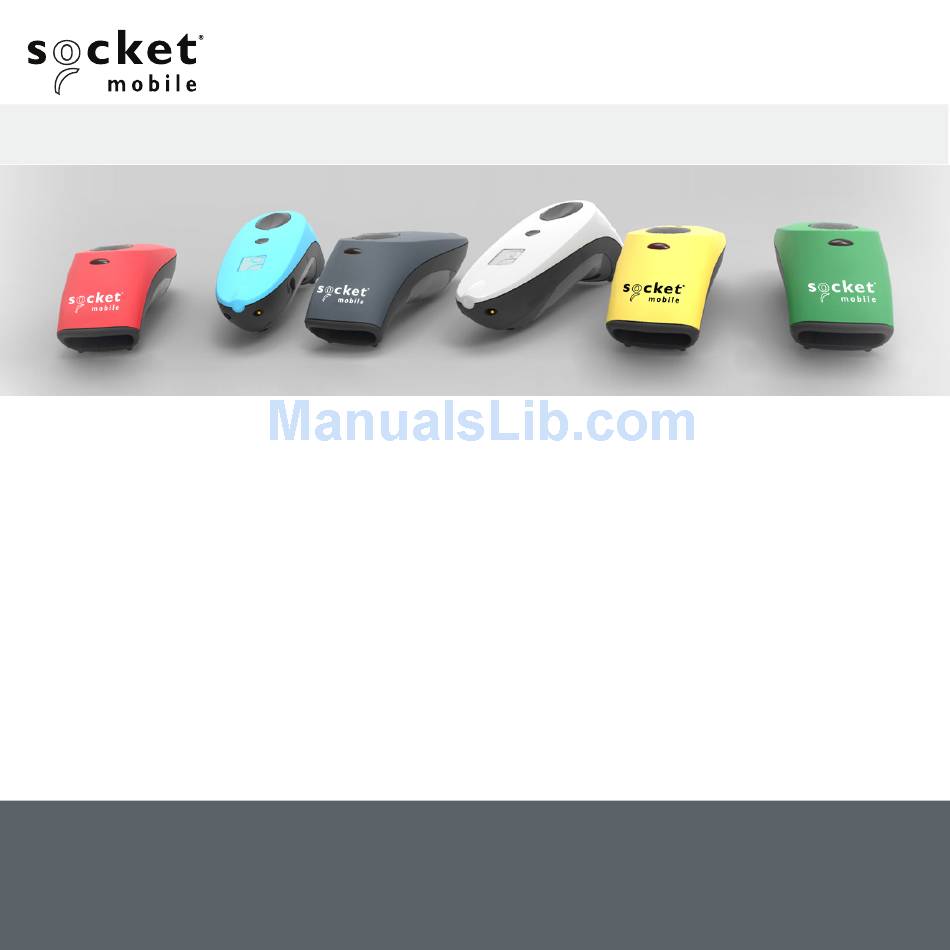

- Page 1 SERIES 7 1D/2D IMAGER USER GUIDE Model shown: CHS 7Qi Bluetooth Barcode Scanner CHS 7Qi & 7Xi www.socketmobile.com...
-
Page 2: Package Contents
SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and trade names contained herein may be those of their respective owners. -
Page 3: Product Information
PRODUCT INFORMATION Product label Scanner head Blue/Green/Red Trigger button Battery door Power button* Twist-lock (horizontal/unlocked) DC-in connector Twist-lock (vertical/locked) Lanyard Pins for charging cradle The D730’s housing is made with antimicrobial additives to help provide protection against harmful bacteria. *Also used to display the on-screen keyboard in Basic Mode (iOS only). -
Page 4: Scanner Setup
SCANNER SETUP To view the Battery Unlock the Battery door by using a thin coin to turn the lock under the scanner to a horizontal position (turn 90 degrees). Unlock Lock Attach the Lanyard (optional) Detach the string loop of the tether from the lanyard. -
Page 5: Charge The Battery
CHARGE THE BATTERY Charge the Battery The Scanner must be fully charged before first use. Please allow 5 hours of uninterrupted charging for the initial battery charge. For the 7Xi, lift the rubber flap to access the power connector. 5 Hours •... -
Page 6: Powering On/Off
POWERING ON/OFF Power button Powering Off/ Disconnecting: Powering On: Press and hold down the small power Press and hold down the small button until the scanner beeps twice power button until the LED turns (high-low) and lights turn off. blue and the scanner beeps twice (low-high). -
Page 7: Scanning Bar Codes
SCANNING BARCODES 1D Barcode 2D Barcode Aim the scan beam straight Aim at the center. across the entire barcode. Trigger button Scanning Barcodes 1. Hold the scanner a few inches from the barcode. 2. Aim, press and hold the trigger button. By default, the scanner will beep, vibrate, and the scan indicator will flash green to confirm a successful scan. -
Page 8: Bluetooth Connection Modes
• Software installation is required Apple Specific • If you have an iOS application that supports Socket Serial Profile Mobile Scanners this is the mode you want to use *By default, the scanner is set to Basic Mode (HID) - Page 9 BLUETOOTH CONNECTION MODES Operating System Connection Options Bluetooth Bluetooth Bluetooth Operating Apple Serial Basic Mode Application Systems Devices Specific (HID) Mode (SPP) (OS) (Advance Support Support (iOS) Mode) Android 4.0.3 & later Android iPod, iPhone, & iPad Apple iOS Windows Windows Mobile 6.x Mobile (SoMo only)
- Page 10 3. Make sure the device has Bluetooth “On”. Scan for devices. 4. In the list of found devices, select Socket 7Xi [xxxxxx]. Tap Pair. 5. The scanner will connect to the Android device. 6. The scanner will beep once after it has connected and is ready to scan bar- codes.
- Page 11 1. Use your computer’s Bluetooth Settings to connect to the scanner. 2. Open Devices and Printers and select “Add a device”. 3. In the device list, select Socket 7Xi [xxxxxx]. Click Next. 4. If a passkey is requested, enter 0000 (four zeroes). Click OK.
- Page 12 2. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 3. Tap Socket 7Xi[xxxxxx] in the list of Devices found. After a few seconds the “Not Paired” status will change to “Connected” or “Paired” and the scanner Blue LED will start blinking every 3 seconds confirming the connection.
- Page 13 10. If you are connecting a scanner which is not registered, a scanner registration icon will appear on top of the screen. Swipe the icon down to open the registration screen. Follow the instructions to register your Scanner. Socket Mobile highly recommends that all customers register their products for future updates, but registration is optional.
-
Page 14: Application Mode
APPLICATION MODE Connect Windows PC in Application Mode (SPP) Note: Make sure you have administrative privileges. 1. Download the latest SocketScan 10 software from Socket Mobile’s support web page. 2. Follow the on-screen instructions to install the software. 3. In SocketScan 10 Settings, select an incoming Bluetooth serial COM port. - Page 15 Yes. If prompted for a passkey, enter 0000 (four zeroes). After the scanner connects, it will beep once. Close Socket EZ Pair. 6a. In Windows 10 if this step can not be done, open the Bluetooth settings and add and pair the scanner manually.
- Page 16 APPLICATION MODE Connect Apple iOS device in Application Mode Please check with your scanner application vendor or visit www.socketmobile.com/appstore to confirm your scanner-enabled application supports the scanner. If you are using the scanner with an Apple iOS device and a scanner-enabled Application that does not provide instructions how to connect your scanner, please use the following steps.
- Page 17 3. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket 7Xi[xxxxxx] in the list of Devices found. After a few seconds the “Not Paired” status will change to “Connected” or “Paired” and the scanner’s blue LED will blink every 3 seconds, confirming the connection.
- Page 18 AUTO MODE (CHARGING STAND) If you have purchased the Socket Mobile Charging Stand, the D750 can both charge and scan stationary in Auto Mode. 1. Pair and connect the D750 to your device prior to placing the scanner in Auto Mode. The Scanner is not discoverable when in Auto Mode and in the Stand.
-
Page 19: Bluetooth Unpairing
BLUETOOTH UNPAIRING Note: This procedure will put the scanner in discoverable mode. Step 1: Unpairing the Scanner: Delete the Bluetooth Pairing If the scanner is paired with a device, unpair it before trying to connect to a different device. a. Power on the scanner. b. -
Page 20: Bluetooth Connection
BLUETOOTH CONNECTION Automatic Reconnections Each time you power on the scanner, it will automatically try to connect to the last device it was connected to. • Make sure the device is in range with Bluetooth “On”. • If using Basic Mode (HID), pressing the trigger button will force or trigger the connection. -
Page 21: Command Barcodes
Charging Stand Modes Auto Mode (Presentation Mode) Scanning this bar code will enable the scan- ner to enter auto mode when placed in Socket Mobile’s Charging Stand. When the scanner is in auto mode, it will switch to presentation trigger mode when it detects power on the cradle pins. - Page 22 COMMAND BARCODES Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Bluetooth Connection Modes Basic Mode (HID)-Keyboard (default) Configures the scanner to Human Interface Device (HID) Basic Mode as a Keyboard class device. Application Mode (SPP) Changes the scanner to Serial Port Profile (SPP) mode.
- Page 23 COMMAND BARCODES Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep after Scanner Decodes Data ON (default) Enables scanner to beep to indicate successful scans. Beep after Scanner Decodes Data OFF Disables scanner from beeping to indicate...
- Page 24 COMMAND BARCODES Vibrate Settings Vibrate ON (default) Enables scanner to vibrate to indicate successful scans. Vibrate OFF Disables scanner from vibrating to indicate successful scans. Factory Default Factory Reset Revert all settings to factory defaults. The scanner will power off after scanning this barcode.
-
Page 25: Status Indicators
STATUS INDICATORS Status LED Activity Meaning 1 Blue blink every Bluetooth is On but not second connected Bluetooth 1 Blue blink every 3 Scanner is connected to device seconds Green Constant Good Read Data successfully scanned (while scanning) Red Blinking (while scanning and 20% or less battery capacity not plugged into power... - Page 26 STATUS INDICATORS Beep Pattern Meaning Low-high tone Power On High-low tone Power Off 1 Low beep Keyboard pop-up enabled Scanner connected to device and ready to scan 1 Beep barcodes 1 Beep Data successfully scanned 2 Beeps, same tone Scanner disconnected from device Scanner tried multiple times unsuccessfully to 1 Long beep connect to the last paired device (after 5 minutes,...
- Page 27 STATUS INDICATORS Vibrate Meaning Vibrate Power On or data successfully scanned Command Barcodes are available on pages 21-25 to modify the LED, beep, and vibrate settings. If you are using a Scanner-enabled Application, typically the application provides settings for LED, beep, and vibrate settings. Bluetooth Mode Sequence Time after powering on Scanner Bluetooth mode...
-
Page 28: Product Specifications
PRODUCT SPECIFICATIONS Specifications Scanner 7Qi Scanner 7Xi 5.07 x 1.57 x 1.36 in. 5.2 x 1.77 x 1.49 in. (132 x Dimensions (129 x 40.1 x 34.6 45.1 x 37.9 mm) Total Mass 1.6 oz (45 g) 3.2 oz (90.7 g) Antimicrobial Antimicrobial additive in all external surfaces Operating Temp... -
Page 29: Helpful Resources
HELPFUL RESOURCES Technical Support & Product Registration: http://support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: http://www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://www.socketmobile.com/developers Command Barcodes (Advanced Scanner Configurations) can be downloaded at: http://www.socketmobile.com/support/downloads... -
Page 30: Regulatory Compliance
REGULATORY COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 31 REGULATORY COMPLIANCE CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
-
Page 32: Limited Warranty
Socket Mobile Incorporated warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Mobile authorized distributor or reseller. Used products and products purchased through non-autho- rized channels are not eligible for this warranty support. - Page 33 Extend Your Warranty... Receive Priority Service and Personal Care. You have 60 Days from purchase date to enroll in a SocketCare Service Program! For detailed information visit: http://www.socketmobile.com/socketcare 2016...
