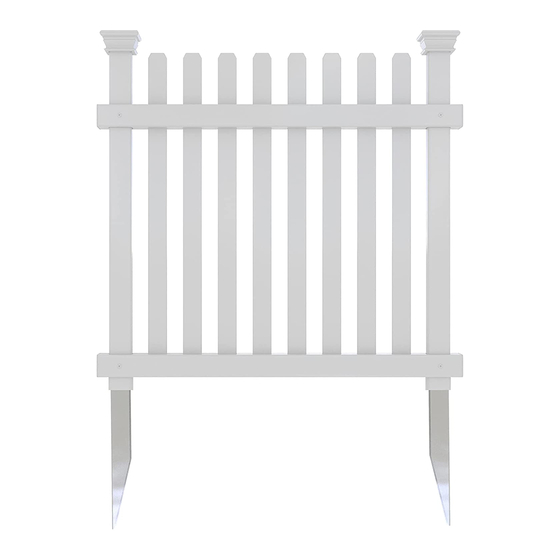

Vinyl garden fence 3-pack (24” w x 22” h)

Hide thumbs Also See for ROGER RABBIT ZP19056:

Assembly instructions manual (10 pages)

Assembly instructions manual (12 pages)

page of 11

/ 11
Bookmarks

Quick Links

Download this manual

ASSEMBLY INSTRUCTIONS

ROGER RABBIT

VINYL GARDEN FENCE

(24" W X 22" H)

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS

3-PACK

ZP19056

30 MIN

Approximate assembly time for 3 fence panels

Want to see a video on how to

assemble this product?

Scan the QR code

ZP19056

VER. 081921

Need help?

Do you have a question about the ROGER RABBIT ZP19056 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zippity ROGER RABBIT ZP19056

Page 1 ASSEMBLY VINYL GARDEN FENCE INSTRUCTIONS 3-PACK ZP19056 (24” W X 22” H) 30 MIN Approximate assembly time for 3 fence panels Want to see a video on how to assemble this product? Scan the QR code WWW.ZIPPITY-OUTDOOR.COM WWW.ZIPPITY-OUTDOOR.COM VER. 081921...
Page 2 If you experience any further trouble with your product, please contact our customer service department. parts.nychbrands.com support@zippity-outdoor.com 704-892-5222 877-234-6196 Customer service agents are available to take calls weekdays from 8am- 5pm EST. If you call outside of business hours, please leave a voicemail.
Page 3 ZP19056 ASSEMBLY INSTRUCTIONS 24 in 1 in 1 1/4 in 1 in WWW.ZIPPITY-OUTDOOR.COM...
Page 4 1½" x 1½" x 24" 1½" x 1½" x 24" ¾" Self-Drilling Stainless Steel Screw (24) >Bag A 1" Steel Screw (12) >Bag B Picket (24) Post (6) ¼" x 1¼" x 21½" " x 1½" x 23¾" ⅛" Steel Drill Bit (1) WWW.ZIPPITY-OUTDOOR.COM...
Page 5 Use the 1/8" Drill Bit to drill (4) total holes in the post anchor through the pre-drilled holes in the bottom rail. Fasten together through the pre-drilled holes in the bottom rail with (4) ¾” self-drilling stainless steel screws. WWW.ZIPPITY-OUTDOOR.COM...
Page 6 Rotate the Pickets fence frame into the so that the picket holes post tabs are in the top and facing up. bottom rails. ASSEMBLE ADDITIONAL PANELS STEP 4: STEP 4.1 Repeat Steps 1-3 to assemble the other two fence panels. WWW.ZIPPITY-OUTDOOR.COM...
Page 7 STEP 5.2 Loosen the top 6” of ground with claw hammer. Add water to loosen soil. Block of wood Use a block of wood to protect the post, and lightly hammer the posts into the ground. WWW.ZIPPITY-OUTDOOR.COM...
Page 8 Use a 1¾” diameter auger bit (commonly used for planting tulips) as illustrated ($15-$20 on Amazon.com). Drill a hole about 12” to 16” deep at the desired location, and fill the holes with water as illustrated. Push the fence posts into the holes. WWW.ZIPPITY-OUTDOOR.COM...
Page 9 STEP 5.4 If ground is too hard, dig two 8” diameter 8” deep holes to accommodate two posts each as shown below. 8” diameter 8” deep. STEP 5.5 Level the fence panel, backfill excavated dirt, and tamp as necessary. WWW.ZIPPITY-OUTDOOR.COM...
Page 10 Straight Line Applications: Using (2) Joiner Clips and (4) 1” Steel Screws (J), connect the panels as shown below. Corner Applications: Using (2) joiner clips and (4) 1” stainless steel screws connect the panels at a 90° angle as shown below. WWW.ZIPPITY-OUTDOOR.COM...
Page 11 ZP19056 ASSEMBLY INSTRUCTIONS 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 877-234-6196 WWW.ZIPPITY-OUTDOOR.COM WWW.ZIPPITY-OUTDOOR.COM...
