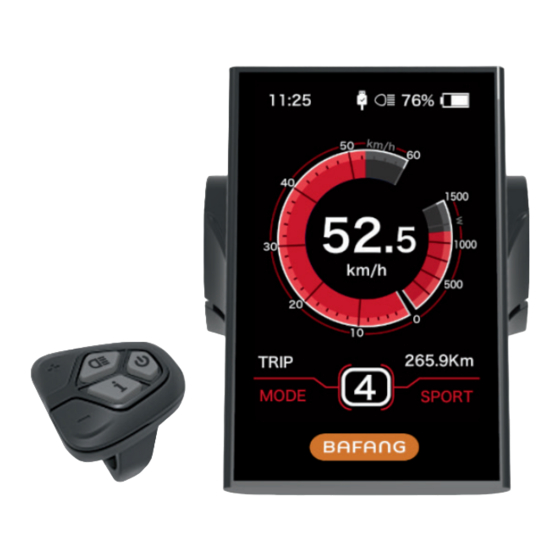

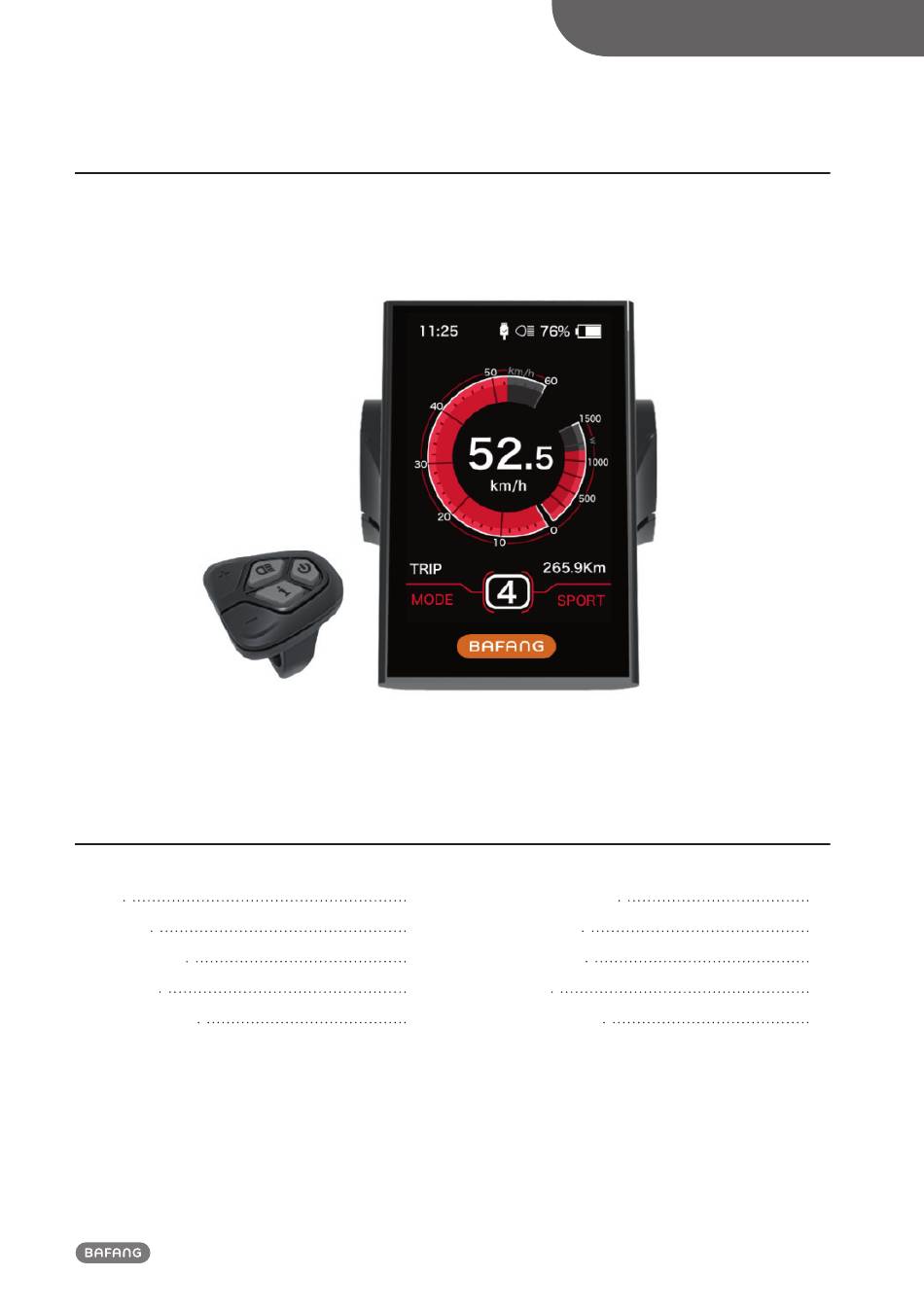

CONTENT DP C18.UART CONTENT Content Normal indication area Introduction Button definition Overview drawing Normal operation Specifications User setting Functional overview Error code definition DISPLAY MANUAL DP C18.UART... -
Page 2: Content
The second line: PD2528051505 - Parameter code The last two lines: DP C18.U 1.0 / 605P1QB220003 - SN A. Up row number (as below) DP C18.U 1.0 ① DP C18.U: BAFANG display model ② 1.0: hardware version number DISPLAY MANUAL DP C18.UART... -
Page 3: Overview Drawing
OVERVIEW DRAWING OVERVIEW DRAWING DISPLAY MANUAL DP C18.UART... -
Page 4: Specifications
• Rated current: 10mA lines(as shown in the figure) • Operation temperature: -20℃~45℃ • Maximum operating current: 30mA • Storage temperature: -30℃~70℃ • When power off, leak current is less than: • IP level: IP65 • Storage humidity: 30%-70% DISPLAY MANUAL DP C18.UART... -
Page 5: Functional Overview
• 5 levels off display backlighting: 10% is most • Through the display, it can switch wheel dark, 100% is highest light. diameter and speed limit. • 6-Level-Support: setting power Levels 0 to 5. DISPLAY MANUAL DP C18.UART... -
Page 6: Normal Indication Area
Riding mode display: the scale value is in accordance with the Display current riding mode, “SPORT” or digital value. “ECO”, can touch and hold (2S) to switch Mode select: the mode. single-trip distance (TRIP) → total distance DISPLAY MANUAL DP C18.UART... -
Page 7: Button Definition
Level “Auto Off”) the display will be automatically 1,“0”means no power assistance. turned off. If the password function of the display is activated, need to input the correct password to enter into the normal display interface. DISPLAY MANUAL DP C18.UART... - Page 8 (TRIP) → total distance (ODO) → maximum speed (MAX) → average speed (AVG) → remaining distance (RANGE) → energy consumption (CALORIES) → time (TIME).Energy consumption unit CALO- RIES means kCal. DISPLAY MANUAL DP C18.UART...
- Page 9 If the display backlight/headlight are turned off manually, they also need to be turned on manually afterwards) • Switch mode between ECO and SPORT Press and hold (>2S) to switch riding mode into “ECO”or “SPORT”. DISPLAY MANUAL DP C18.UART...
- Page 10 • Operating process in the set interface Unit Brightness Auto Off Default Mode Power View SOC View Display Setting TRIP Reset Wheel Speed Limit AL Sensitivity Factory Setting Default Mode Password Set clock SETTING BACK Information Battery info. Error Code EXIT BACK DISPLAY MANUAL DP C18.UART...
- Page 11 “Brightness”. Briefly press for two times (interval time is less than 0.5S) to exit back to main interface, or select “BACK” → “EXIT”to back the main interface. DISPLAY MANUAL DP C18.UART...
- Page 12 “Power View”. Briefly press for two times (interval time is less than 0.5S) to exit back to the main interface, or select “BACK” → “EXIT” to exit back the main interface. DISPLAY MANUAL DP C18.UART...
- Page 13 0.5S) to exit back to main interface or Enter into “Start PassWord” interface and select “BACK” → “EXIT” to exit back to main select “ON”. Briefly press (<0.5S) , and interface. then it show input password in the interface. DISPLAY MANUAL DP C18.UART...
- Page 14 Briefly press for two times (interval time is less than 0.5S) to exit back to the main interface or select “BACK” → “EXIT” to exit back to main interface. DISPLAY MANUAL DP C18.UART...
- Page 15 “Set Clock”. Briefly press for two tiems (interval time is less than 0.5S) to exit back to the main interface or select “BACK” → “EXIT” to exit back to the main interface. DISPLAY MANUAL DP C18.UART...
-
Page 16: Error Code Definition
ERROR CODE DEFINTION ERROR CODE DEFINITION DP C18.UART display can show e-bike faults. When a fault is detected, the icon will be displayed. One of the following error codes will be displayed. Error code Error definition Solution "07" High voltage protection...
