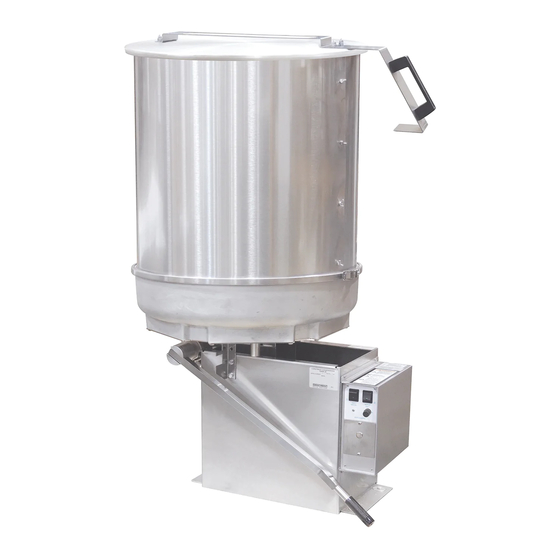

- Page 1 Instruction Manual Karmel King Model No. 2620, 2621, 2630, 2631 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2021 Gold Medal Products Co. Part No. 110027...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information 039_080614 may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Inspection Of Shipment
Karmel King Model No. 2620, 2621, 2630, 2631 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). - Page 5 Karmel King Model No. 2620, 2621, 2630, 2631 Setup 1. Remove all packaging and tape, and accessories before starting operation. 2. This unit must be properly fastened to a sturdy counter, see illustration below for counter mounting requirements. 23.00” 23.00” 3”...
-
Page 6: Electrical Requirements
Karmel King Model No. 2620, 2621, 2630, 2631 Fasten or Adjust Retaining Ring Latch 1. Open latch then fit retaining ring Mixing Drum Drum seal fits over drum and kettle rims. around bottom lip of drum. Drum Seal Retaining Ring 2. -
Page 7: Before You Plug In Machine
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 8: Controls And Their Functions
Karmel King Model No. 2620, 2621, 2630, 2631 OPERATING INSTRUCTIONS Controls and Their Functions Two position, ON/OFF lighted rocker switch – provides power to the heating elements in HEAT/MOTOR SWITCH the bottom of the kettle, and powers the agitator motor to turn for 30 seconds of every minute. - Page 9 Karmel King Model No. 2620, 2621, 2630, 2631 Heat Control Adjustment/Calibration Product Cook Temperature is the actual temperature of the PRODUCT (Caramel Corn Mix); this is measured with an accurate candy thermometer. Infrared temperature readers are NOT recommended. Standard Heat Control Adjustment The machine comes from the factory preset to achieve a finished Product Cook Temperature of 280°F.
- Page 10 CAUTION: Beware of rising steam; keep face and hands clear of rising steam. 2. Add (4) 22 oz. packages of Gold Medal Caramel Corn Mix (Item No. 2094), 16 cups of granulated sugar (brown or white), and 32–48 oz. of water (add water last).
-
Page 11: Care And Cleaning
Karmel King Model No. 2620, 2621, 2630, 2631 Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. DO NOT clean appliance with a water jet or steam cleaner. Always unplug the equipment before cleaning or servicing. 025_051321 WARNING To avoid serious burns, DO NOT touch the kettle while it is hot! - Page 12 Karmel King Model No. 2620, 2621, 2630, 2631 Daily Unit Cleaning Procedure 1. Turn machine OFF, unplug the unit and allow it to cool before attempting to clean. 2. Clean all pans/accessories after each use. 3. Release draw latch and remove mixing drum, then remove paddles (pull plunger knob and lift paddle off).
-
Page 13: Troubleshooting
Karmel King Model No. 2620, 2621, 2630, 2631 Troubleshooting A. Power to Unit A. Make sure the unit lead-in cord is plugged in. Issue Possible Cause Solution B. 15 AMP Fuse B. Check the condition of the 15 AMP fuse. Kettle Does Not Heat Replace if required, if fuse trips again, contact qualified service personnel for... -
Page 14: Maintenance Instructions
Karmel King Model No. 2620, 2621, 2630, 2631 THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. - Page 15 Karmel King Model No. 2620, 2621, 2630, 2631 New Paddle/Hub Seal Kit Installation Kettle Shaft Maintenance 1. With the machine OFF, unplug the unit and allow it to cool. 2. Pull knurled knob of plunger and lift mix paddles off shaft. 3.
-
Page 16: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 17: Cabinet Exterior
Karmel King Model No. 2620, 2621, 2630, 2631 Cabinet Exterior See Kettle Parts Breakdown section. See Safety Labels Section. 3, 4 Data See Control Panel Plate Section for Parts Breakdown. Part Number Item Parts Description LID ASSEMBLY 48827 All Models 2 POSITION BRACKET 46153 1/4-20 X 3/4 GRADE 5 BOLT... - Page 18 NOTE: Concave side of *Large Spacer fits up against bracket weld on Dump Bar Shaft. ** CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard.
- Page 19 Karmel King Model No. 2620, 2621, 2630, 2631 Cabinet Exterior/Spring Assembly – Parts List Part Number Item Parts Description RH Models LH Models KETTLE LEAD IN ASSY (includes connectors) 69867 69867 2620, 2630 2621, 2631 POWER CORD 50A PLUG 89810 89810 STRAIN RELIEF T&B 3304 82227...
- Page 20 Kettle and Drum – Parts Breakdown *Hub Seal Assembly (includes Hub Seal, Hub (includes paddle, Paddle Assy. Body, and O-Ring) plunger, and nut) If Hub Seal is replaced, Gold Medal recommends replacing the assembly. General images shown for parts reference only. gmpopcorn.com Page 20...
- Page 21 Karmel King Model No. 2620, 2621, 2630, 2631 Kettle and Drum – Parts List Part Number Item Parts Description WING NUT, #8-32 89126 All Models BLENDING STRIP 100553 MIXING DRUM 48819 MIXER PADDLE ASSY (includes Mix Paddle, Hex 111408 Nut and Plunger) MIXER PADDLE MACHINED 111407 HEX NUT 5/8-11...
- Page 22 Karmel King Model No. 2620, 2621, 2630, 2631 Kettle Bottom Plate/Motor Mount – Parts Breakdown 13, 14, 15 Junction Box Interior View (LH shown) RH Unit shown for image reference. 18, 19 21, 22 23, 24 25, 19, 26 Strain Relief (not shown) on cord end to Control Box.
- Page 23 Karmel King Model No. 2620, 2621, 2630, 2631 Kettle Bottom Plate/Motor Mount – Parts Breakdown Part Number Item Parts Description KETTLE ASSY, ELECTRONIC (see Kettle Bottom All Models and Kettle Element View sections for itemized 48828 parts breakdown) KETTLE REST BUMPER (rubber bumper) 83111 KETTLE REST (metal rest/holds rubber bumper) 83110...
- Page 24 Karmel King Model No. 2620, 2621, 2630, 2631 Kettle Element View - Parts Breakdown Form a tab UP on flat of nut to retain nut position. Form tab DOWN. *For optimum results, keep sensor wires away from element heat as much as possible; route to junction box as direct as possible along heat element wire connection ends.
- Page 25 Karmel King Model No. 2620, 2621, 2630, 2631 Kettle Element View - Parts Breakdown Part Number Item Part Description KETTLE, CORN TREAT CENTER (includes 2 of 48829 48829 2620, 2621 2630, 2631 Item 3 below, top and bottom bushings) ELEMENT SHIM 68787 68787 BUSHING, MIX BOWL (2 Required, one used on...
-
Page 26: Standard Control Panel
Karmel King Model No. 2620, 2621, 2630, 2631 Standard Control Panel 3, 4 3, 4 Remove Hole Plug to access Potentiometer. Control Panel Control Panel Interior View Exterior View (Model 2620 Shown) Part Number Item Parts Description CONTROL BOX ASSY (includes support and cover) 55492 All Models SWITCH, ROCKER DPDT LGHT... -
Page 27: Safety Labels
Karmel King Model No. 2620, 2621, 2630, 2631 Safety Labels Power Cord Label Unit Labels Part Number Item Part Description COOKER LABEL 111031 All Models MINIMUM CLEARANCE LABEL 88720 MAIN GROUND LABEL 42375 WARNING LABEL CORD 68720 Accessories Part Number Item Part Description 8 CUP MEASURE... -
Page 28: Wiring Diagram
Karmel King Model No. 2620, 2621, 2630, 2631 Wiring Diagram Model No. 2620, 2621, 2630, and 2631 gmpopcorn.com Page 28... -
Page 29: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
