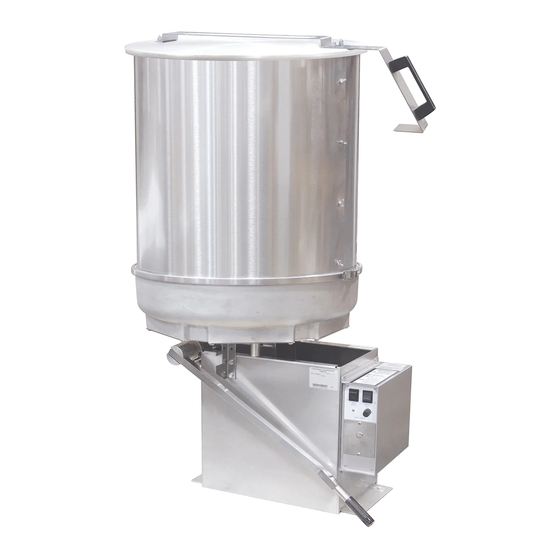

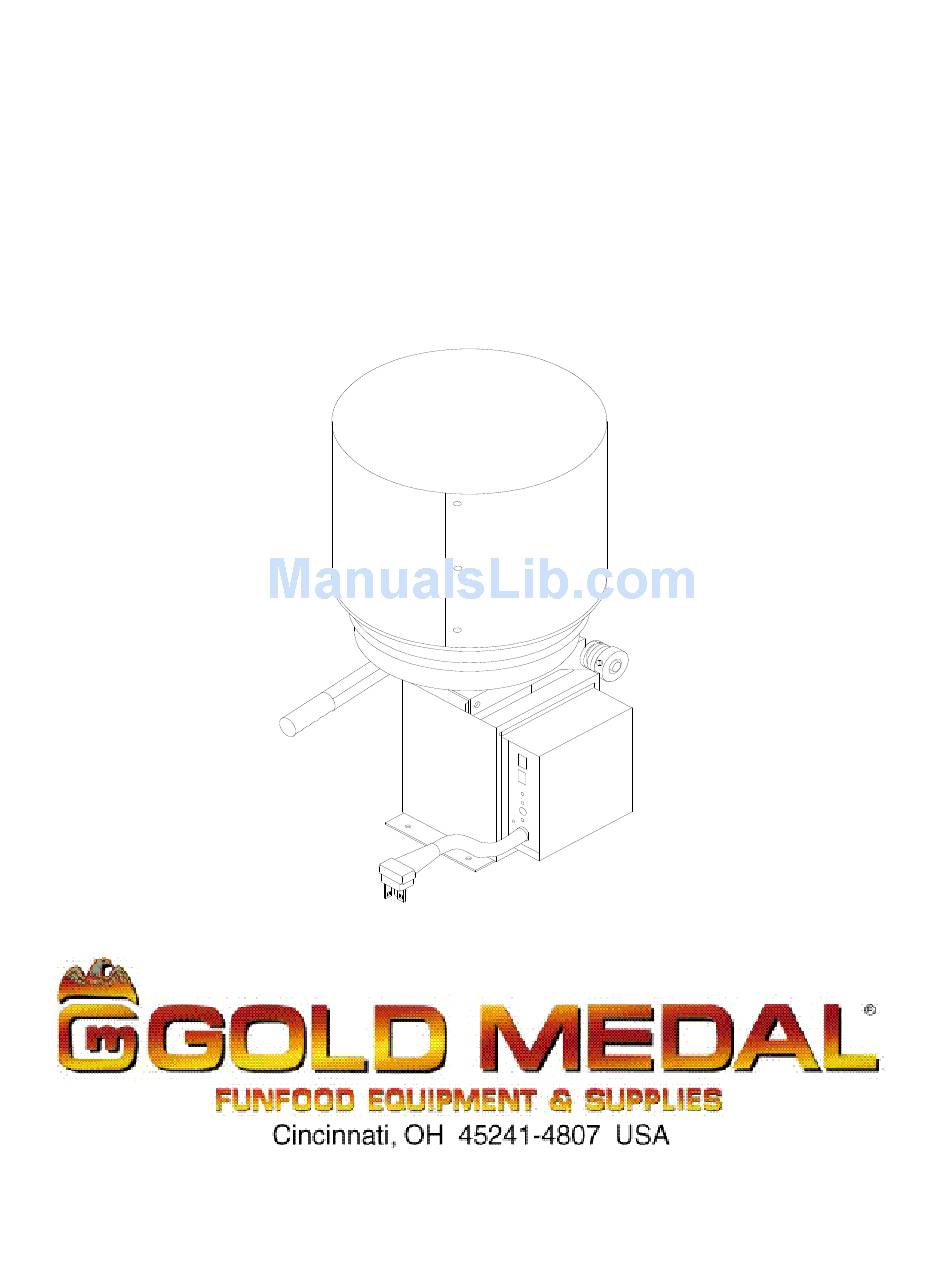

- Page 1 Part No. 18736 Revised: February 2009 KARMEL KING Instruction Manual Models: 2620 & 2621 (240 Volt) 2630 & 2631 (208 Volt)
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS... - Page 3 40´x 60” Cooling Pan should be located approximately 3-5” below the Corn Treat Mixer Base Model 2622 (Rolling Table) Includes Casters Includes (1) cooling pan ( order p/n 48845 for extra cooling pan) Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Phone: 513-769-7676...
-
Page 4: Installation
___________________________________ KARMEL KING INSTALLATION CHECKING SHIPMENT Unpack the shipping crate and check thoroughly for any damage which may have occurred in transit. Any claims should be filed immediately with the transportation company. ELECTRICAL REQUIREMENTS Voltage for the 2620 AND 2621 is 240 volt, 3-WIRE ( 2 HOT, 1 GROUND) 60 cycle single phase. A wall receptacle is supplied with the machine. -
Page 5: Controls And Their Function
___________________________________ KARMEL KING CONTROLS AND THEIR FUNCTION HEAT SWITCH This rocker switch in the “ON” position energizes the heating elements in the bottom of the kettle. MOTOR SWITCH With this rocker switch in the “ON” position, the agitator motor will run continuously. HEAT CONTROL The machine comes from the factory preset at 280°F. - Page 6 ___________________________________ KARMEL KING NEW PADDLE & HUB SEAL KIT INSTALLATION 1. Unscrew the wing bolts and remove both mix paddles. 2. Remove the old hub seal assembly. 3. Clean the area around the center hub. Clean up all food and carbon residue. 4.
-
Page 7: Maintenance Instructions
___________________________________ KARMEL KING MAINTENANCE INSTRUCTIONS MODEL # 2620,2621,2630, AND 2631... -
Page 8: Ordering Spare Parts
3. Please include your model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 9 INSTRUCTIONS FOR MAKING CARAMEL CORN 1. Turn the heat switch "ON". 2. Add 24-28 ounces of water, (4) 22 oz. packages of Gold Medal Caramel Corn Mix, and (16) cups of granulated sugar. NOTE: When using the Gold Medal "One Step" Caramel Corn Mix, do NOT add granulated sugar.
-
Page 10: Parts List
___________________________________ KARMEL KING PARTS LIST 2620 2621 2630 2631 Part No Part No Part No Part No Description 46488 46488 46488 46488 Tilt Lever 48882 48882 LH Dump Bar Assy. 48842 48842 RH Dump Bar Assy. 74660 74660 74660 74660 Torsion Spring 74661 74661... - Page 11 ___________________________________ KARMEL KING ELECTRICAL SCHEMATIC MODELS 2620,2621,2630, & 2631 MODEL # 2620,2621,2630, AND 2631...
-
Page 12: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
