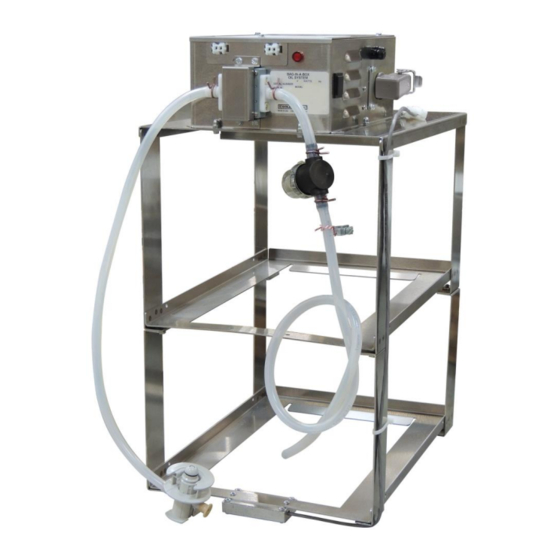

Gold Medal 2257 Series Instruction Manual
B.i.b. oil with load cell
Hide thumbs
Also See for 2257 Series:
- Instruction manual (19 pages) ,
- Instruction manual (27 pages) ,
- Instruction manual (17 pages)
Related Manuals for Gold Medal 2257 Series
Summary of Contents for Gold Medal 2257 Series
- Page 1 Instruction Manual B.I.B. Oil with Load Cell Model Series: 2257 (210) 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2022 Gold Medal Products Co. Part No. 110118...
-
Page 2: Table Of Contents
B.I.B. Oil with Load Cell Model Series: 2257 (210) Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ..................................5 Model Description ..............................5 Items Included with Unit ............................ 5 Setup ................................... 5 Electrical Requirements ............................. -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 Unit is an oil dispenser. Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
B.I.B. Oil with Load Cell Model Series: 2257 (210) INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 6: Electrical Requirements
DO NOT use a water jet or excessive water when cleaning. 008_012221 This machine is intended to be used with a Gold Medal popcorn popper with a proper power cord to connect to the pump. A certified electrician must furnish sufficient power for proper machine operation (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage requirements). -
Page 7: Unit Installation
B.I.B. Oil with Load Cell Model Series: 2257 (210) Unit Installation The unit needs to be placed in a cabinet enclosed on all sides in order for the heater to properly maintain product temperature. Access will be required to the front of this area allowing sufficient clearance to clean and maintain the pump and to add or remove boxes of oil. -
Page 8: Oil Installation - Oil Level Indicator (Bib Units With A Load Cell)
(reference instructions below). This oil system is designed to be used with pre-melted oil. Gold Medal’s Backroom Warmer, Item No. 2262 (2262EX), may be purchased for pre-heating the oil. If using coconut oil, Gold Medal’s Heated Line Kit, Item No. - Page 9 B.I.B. Oil with Load Cell Model Series: 2257 (210) 3. Use a small blunt object (e.g. paperclip) and press the EMPTY button on the Oil Level Indicator (see image shown above). 4. Load a second full box of oil in the unit. 5.
-
Page 10: Oil Installation - Attach Universal Bag Connector
B.I.B. Oil with Load Cell Model Series: 2257 (210) Oil Installation - Attach Universal Bag Connector 1. Load two boxes of pre-heated oil in unit. Use a maximum of (2) 35 pound boxes of oil. Mount box so the bag nozzle is located towards the bottom of the box to permit a free flow of oil from the bag. -
Page 11: Operating Instructions
B.I.B. Oil with Load Cell Model Series: 2257 (210) OPERATING INSTRUCTIONS Controls and Their Functions This unit is controlled using the Oil System Master Switch (powers the dispenser), and the Oil Dispense Switch (dispenses oil) located on the control panel of the popper. (Reference the Controls section in the Popper’s Manual.) RED PILOT LIGHT Pilot Light is located on the control box of the oil unit. -
Page 12: Operating The Oil Dispense Unit
B.I.B. Oil with Load Cell Model Series: 2257 (210) Operating the Oil Dispense Unit Follow the steps below to turn on the oil dispense unit: 1. Turn Oil System Master Switch ON (switch located on Control Panel of the Popper). This provides power to the oil dispense unit to activate the warmer/blower, and heated line kit (if equipped). -
Page 13: Program The E-Z Set Timer
B.I.B. Oil with Load Cell Model Series: 2257 (210) Program the E-Z Set Timer This unit is used with a Popper which has an Electronic Temperature Control with a programmable timer to set the amount of oil dispensed for popping popcorn. For poppers with a Membrane or Touch Screen control... -
Page 14: Care And Cleaning
Measure Cup (for priming unit) 1. Make sure BIB and popper kettle have cooled completely before attempting to clean. 2. Fill a clean, empty pail half-full with hot water and Gold Medal Chlor-Tech Sanitizer (reference instructions on sanitizer container for appropriate amount). - Page 15 B.I.B. Oil with Load Cell Model Series: 2257 (210) Step 3: Step 1: Step 2: Plunger OUT in open position. Push Plunger IN to lock onto bracket. Cleaning Slide Connector Plunger ENGAGED on pin. Bracket onto Bracket 4. Place hose with cleaning bracket into the pail of sanitizing solution. 5.
-
Page 16: Troubleshooting
B.I.B. Oil with Load Cell Model Series: 2257 (210) Troubleshooting General unit troubleshooting issues are listed below, also reference the Troubleshooting section in the popper manual. Issue Possible Cause Solution Oil Pump Does Not Deliver A. Oil System Master Switch A. -
Page 17: The Following Sections Are For Qualified Service Personnel Only
B.I.B. Oil with Load Cell Model Series: 2257 (210) THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. -
Page 18: Optional Heated Line Kit
B.I.B. Oil with Load Cell Model Series: 2257 (210) Optional Heated Line Kit Model 2457S Heated Line Kit (optional, sold separate from oil dispense unit) is used to keep the oil in the lines from the pump at the proper operating consistency. Installation Instructions To install a Heated Line Kit, turn OFF the Oil System Master Switch (located either on the popper or on the oil unit), unplug the oil unit from the popper (or its power source), and follow the... -
Page 19: Heated Line Kit Receptacle Replacement
B.I.B. Oil with Load Cell Model Series: 2257 (210) Heated Line Kit Receptacle Replacement Receptacle replacement must be performed by qualified service personnel. Turn OFF the Oil System Master Switch (located either on the popper or on the oil unit), unplug the oil unit from the popper (or its power source), and allow unit to cool before attempting to replace receptacle(s). -
Page 20: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 21: Cabinet Exterior / Load Sensor - Parts Breakdown
B.I.B. Oil with Load Cell Model Series: 2257 (210) Cabinet Exterior / Load Sensor – Parts Breakdown Overall view 2257-00-010 *White plastic inlet/outlet can be purchased separately from the pump (sold individually). 6, 7 9, 10 Control Box Top View 15, 16, 17 Oil Harness Connector (includes connector to popper) - Page 22 B.I.B. Oil with Load Cell Model Series: 2257 (210) Cabinet Exterior / Load Sensor – Parts List Part Number Item Part Description 2257-00-210 2257-01-210 ROCKER SWITCH HOLE PLUG 42743 42743 CONTROL BOX COVER 79377 79377 8-32 X 3/8 SLT. HWH M/S 42044 42044 2257 LABEL...
-
Page 23: Tubing And Connectors - Parts Breakdown
B.I.B. Oil with Load Cell Model Series: 2257 (210) Tubing and Connectors – Parts Breakdown Tubing and Connectors (included with unit) 2457S Complete Heated Line Kit option is available for purchase (contains both lines shown with Heated Rope Wire Heated Rope Wire Assy. Assembly attached) (available for purchase separately;... -
Page 24: Control Box Interior - Parts Breakdown
B.I.B. Oil with Load Cell Model Series: 2257 (210) Control Box Interior – Parts Breakdown 2257-00-010 6, 7, 8 For Pump parts breakdown, see Cabinet Exterior section. See images above for parts reference. 13 14 16, 17 General image shown for parts reference only. gmpopcorn.com Page 24... -
Page 25: Accessories
B.I.B. Oil with Load Cell Model Series: 2257 (210) Control Box Interior – Parts List Part Number Item Part Description 2257-00-210 2257-01-210 MOUNTING BRACKET 79428 79428 END STOP 118023 118023 ENDPLATE, 12 AWG, 3POS 118024-123E 118024-123E TERM BLOCK, 12 AWG, 3POS 118024-123 118024-123 EXHAUST BLOWER... -
Page 26: Wiring Diagram
B.I.B. Oil with Load Cell Model Series: 2257 (210) Wiring Diagram Model No. 2257-00-210 gmpopcorn.com Page 26... - Page 27 B.I.B. Oil with Load Cell Model Series: 2257 (210) Model No. 2257-01-210 gmpopcorn.com Page 27...
-
Page 28: Warranty
© 2022 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
