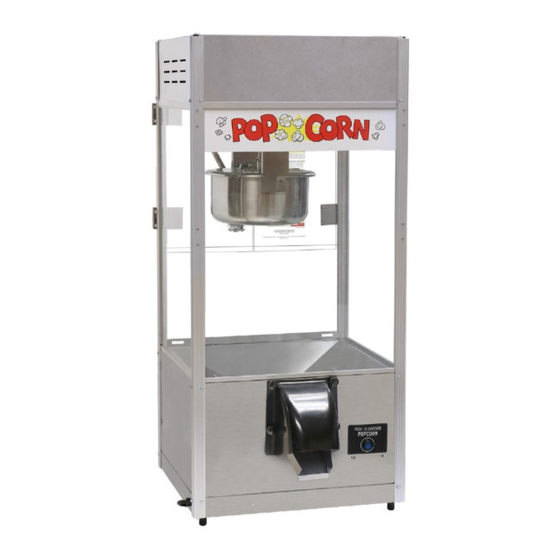

- Page 1 Instruction Manual ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2021 Gold Medal Products Co. Part No. 110281...
-
Page 2: Table Of Contents
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Table of Contents SAFETY PRECAUTIONS ........................... 3 Inspection of Shipment ............................5 INSTALLATION INSTRUCTIONS ........................5 Manual ..................................5 Model Description ..............................5 Items Included with this Unit ........................... 5 Setup ................................... 6 Install Chute Assembly .......................... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 Note: Improvements are always being made to Gold Medal’s equipment. This information 039_080614 may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Inspection Of Shipment
2783-00-000: 8 oz. ReadyPop Jr. – 8 oz. kettle, front counter unit 2783-00-010: 8 oz. ReadyPop Jr. – 8 oz. kettle, back counter unit 2783-00-020: ReadyPop Jr. – no kettle, front counter cabinet. Only for use with Gold Medal Products Kettle #49472N, #56000, or #58000. -
Page 6: Setup
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation—remove any protective covering on the plastic panels. Remove accessories and carefully remove kettle packed in cabinet interior. -
Page 7: Install Chute Assembly
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) 7. Install the chute assembly as described below. General images shown for reference. Install Chute Assembly 1. Insert both tabs on chute flap into slots in cabinet. 2. Allow flap to swing down into place—make sure flap swings freely. -
Page 8: Coil And Corn Pan Removal (Installation)
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Coil and Corn Pan Removal (Installation) Corn Pan Removal To reinstall: Insert corn Coil Assembly pan tabs into slots. To reinstall: ALIGN flat side of shaft to coil assembly plate. 2. Slide coil assembly off motor shaft. 1. -
Page 9: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 10: Controls And Their Functions
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) OPERATING INSTRUCTIONS Controls and Their Functions ON/OFF lighted rocker switch - supplies power to the heating element in the kettle. The KETTLE HEAT SWITCH green switch light ON indicates there is power to the kettle heating element. ON/OFF lighted rocker switch - supplies power to the kettle agitator motor. -
Page 11: Operating Instructions
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Operating Instructions This unit is easy to use and provides a convenient, sanitary way for customers to self-serve portions of popcorn. 1. Turn Lights/Warmer Switch ON (turns on display lights, crisper, and supplies power to the dispense button). -
Page 12: Daily Kettle Cleaning Instructions
Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L) of water. -
Page 13: Daily Unit Cleaning Instructions
(cloth may be SLIGHTLY dampened with soap and water, then wipe again with clean water to remove any remaining cleaner). 5. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. -
Page 14: Troubleshooting
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Troubleshooting A. No Power to the Unit A. Make sure the unit’s power cord is plugged in. Issue Possible Cause Solution A. Power to the Kettle A. Make sure kettle lead-in cord is plugged in and No Power to the Unit twisted to lock into the kettle receptacle. - Page 15 ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) A. Dispense Button/Motor A. Make sure the unit is plugged in to supply Issue Possible Cause Solution power to the Dispense Button. Check if the No Popcorn Dispensed Dispense Button LED is ON. If the LED is ON, and popcorn does not dispense when the button is pushed, the button or the motor may be faulty, contact qualified service...
-
Page 16: Agitator Set Collar Adjustment
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a floating stir rod. Steps to Adjust Set Collars 1. Turn machine OFF, unplug unit, and allow Gear Block it to cool completely before attempting (should set at least... -
Page 17: The Following Sections Are For Qualified Service Personnel Only
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. -
Page 18: Replacing Broken Glass
Web Page: gmpopcorn.com Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) 22.375”... -
Page 19: Oz. Kettle 49472N (If Equipped) - Agitator Assembly View
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) 8 oz. Kettle 49472N (if equipped) – Agitator Assembly View Overall Kett le 56000 Agitator Assemb ly 56000 **Apply Loctite 246 to bottom of set screws before installing. *See Parts List note. 16, 14 See Kettle Bottom... -
Page 20: Oz. Kettle 49472N (If Equipped) - Kettle Bottom Assembly
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) 8 oz. Kettle 49472N (if equipped) – Kettle Bottom Assembly Kettle Bottom Assembly 49472N Elem ent View 49472N Kettle Bottom Assembly 8, 9 Element View Thermostat Top Lock Nut - Fastens thermostat. Install Lock Nut with triangle in UP position (as shown). -
Page 21: Cabinet Exterior - Front View
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Cabinet Exterior – Front View Back Counter Decal View See Kettle Dome Top, Cover View section. For Glass Panels, see Replacing Glass section. 9, 10 Front Counter image shown for 12, 13 general parts reference only. -
Page 22: Cabinet Exterior - Rear View
(See next page for Door Hardware Kit parts breakdown.) *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified See previous persons in order to section. avoid a hazard. -
Page 23: Door Hardware Kit 61380 - Individual Component Breakdown
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Door Hardware Kit 61380 – Individual Component Breakdown (contains all parts shown above) Complete Door Hardware Kit (P/N 61380) Part Number Item Part Description KNOB LID LIFT 47120 61380 TEE BOLT 75267 8-32 X 5/16 SLOTTED HEX 49594 8-32 X 3/8 PH PAN W/SEMS... -
Page 24: Cabinet Interior - Hanger Assembly
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Cabinet Interior – Hanger Assembly 12 13, 14 10, 11 * See parts 8*, 9 LED Light list note. See Kettle Assembly section. For labels, see Safety Label section. Front Counter image shown for general parts reference only. Part Number Item Part Description... -
Page 25: Cabinet Interior - Corn Pans
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Cabinet Interior – Corn Pans 10, 3 14, 15 17, 18 Corn Pans Removed For removal/installation, Corn Pan View Front and Rear see Setup section. Covers Removed Part Number Part Number Item Part Description Item Part Description... -
Page 26: Dome Interior - Electrical Components
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Dome Interior – Electrical Components 2, 3 6, 7 PowerOff Control 10, 11 See Hanger Assembly 12, 11 section for controls. General image shown for parts reference only. Part Number Part Number Item Part Description LED LIGHT 800 LUMENS... -
Page 27: Safety Labels
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Safety Labels On units with PowerOff Control feature only. Kettle Lead-In Label Unit Labels Power Cord Label Item Part Description Part Number LABEL POWEROFF CNTRL 55436 LABEL, READYPOP JR KETTLE 119098 UNIVERSAL POPPER DECAL 41019 LABEL, DO NOT CLEAN.. -
Page 28: Wiring Diagram
ReadyPop ® Model No.: 2783-00-000 (010, 020, 030) Wiring Diagram Model No. 2783 Series gmpopcorn.com Page 28... -
Page 29: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
