Step 3: Pull Apart Sensor Install

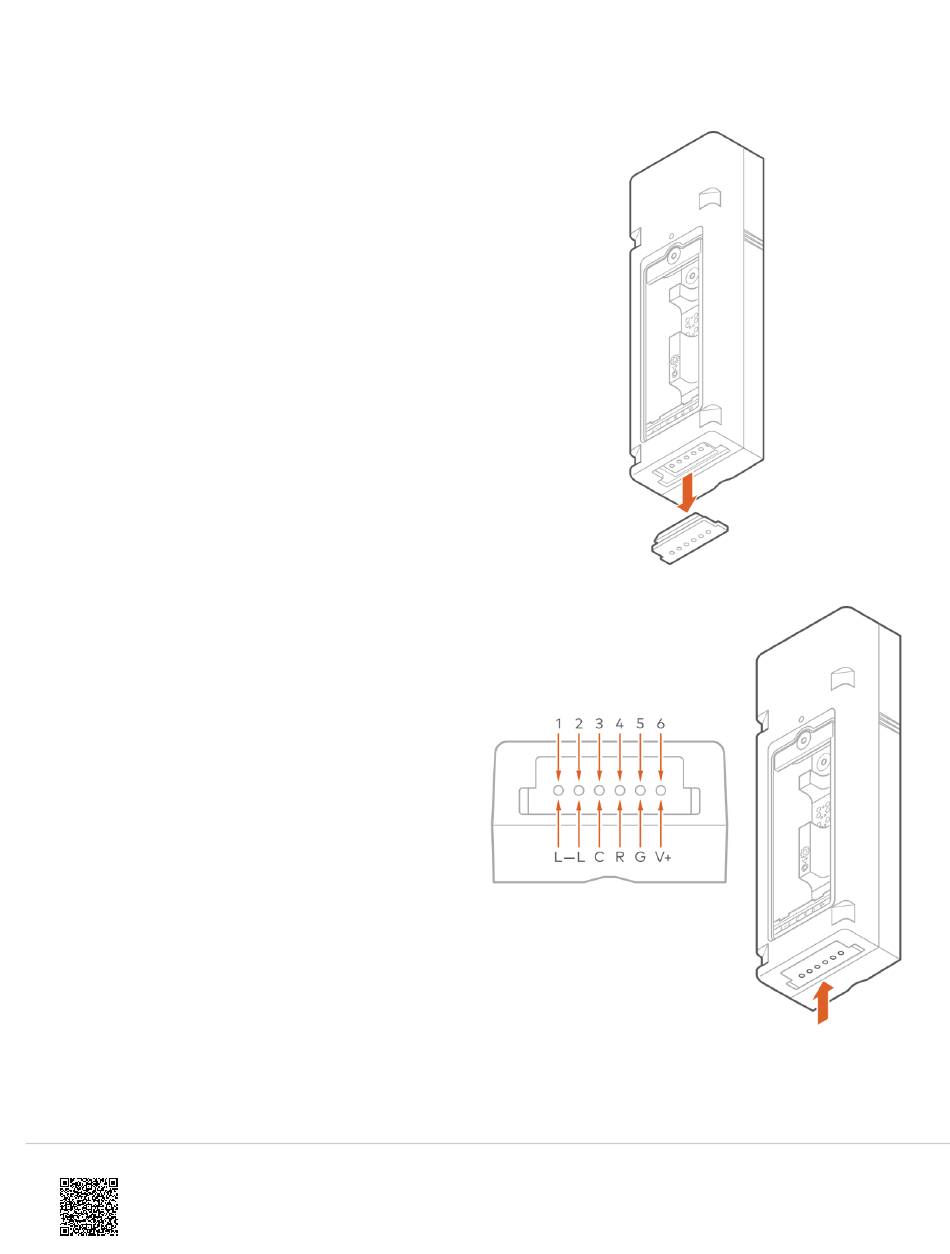

Access Screw Terminals
Remove the weatherproof gasket at the bottom of the
Flex IO to access the screw terminals.
Identify Necessary Screw Terminals
• L-L: Both pins of the input loop
• C: Common pin for relay control
• R: Relay (NO or NC) control pin
• G: Ground
• V+: DC Power
