Mocka Sadie Entertainment Unit - Large Assembly Instructions Manual

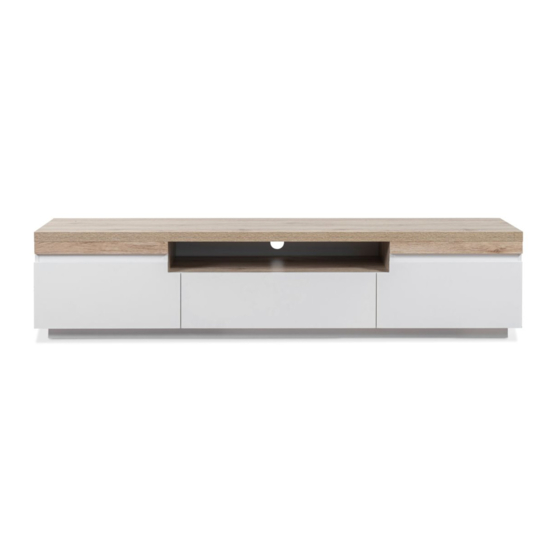

Sadie Entertainment Unit - Large
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
B
A
locking dowel
bolt
nut x61
x61
G H
I2
wedge screw
x4
x4 rail x3
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C D E
small screw screw
x30 x20
x24
I J K
J2
I1
J1
slide slide plastic
rail x3 glide x10

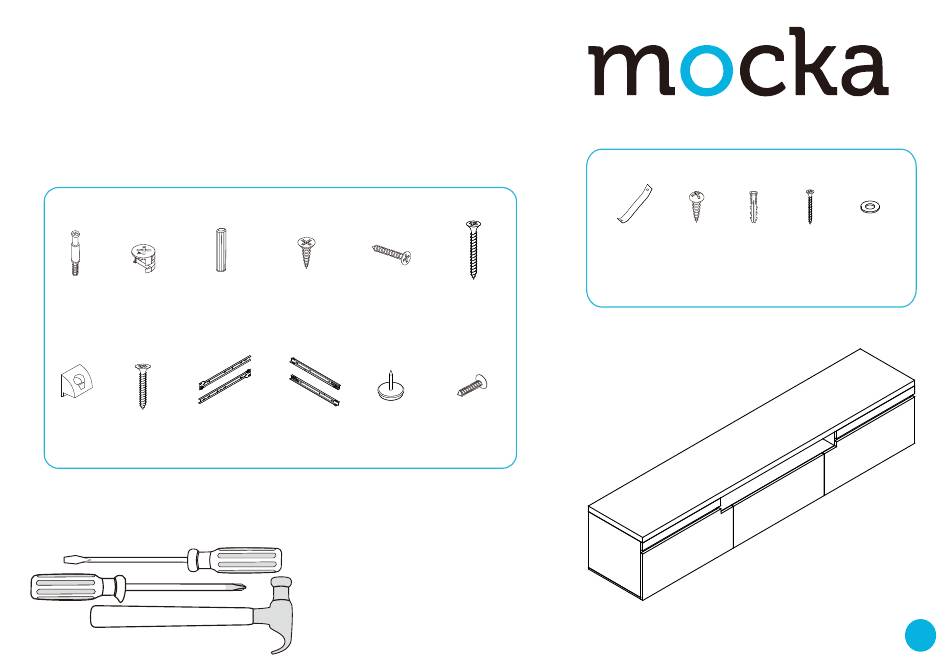

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
safety
strap x2
long screw
x12
N
screw
x 2
V W X Y
screw wall wall
x2
anchor screw
x2
x2
Wall Strap
Z
washer
x4
1
