Mocka Sadie Assembly Instructions Manual

Desk
Hide thumbs Also See for Sadie:

Advertisement

Quick Links

Download this manual

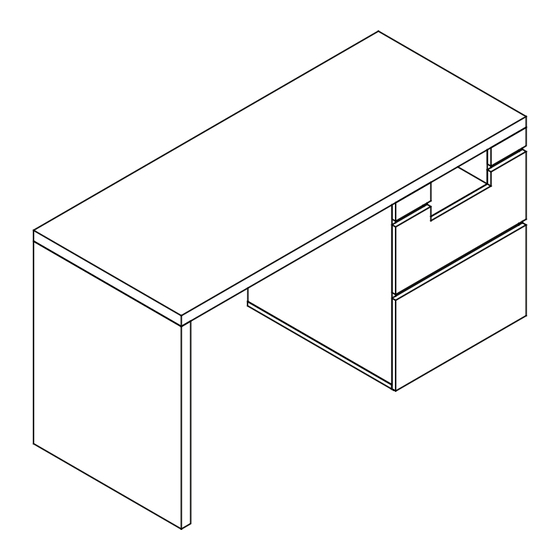

Sadie
Desk
Thank you for your purchase.
Please follow the instructions below for correct assembly
A
B
C
screw
bolt
dowel
x12
x57
x18
I
J
K
slide
wedge
screw
rail x2
x4
x4
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-
quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
D
E
F
locking
screw
slide
nut x57
x24
rail x2
L
M
N
screw
allen key
plastic
x8
glide x8
x1

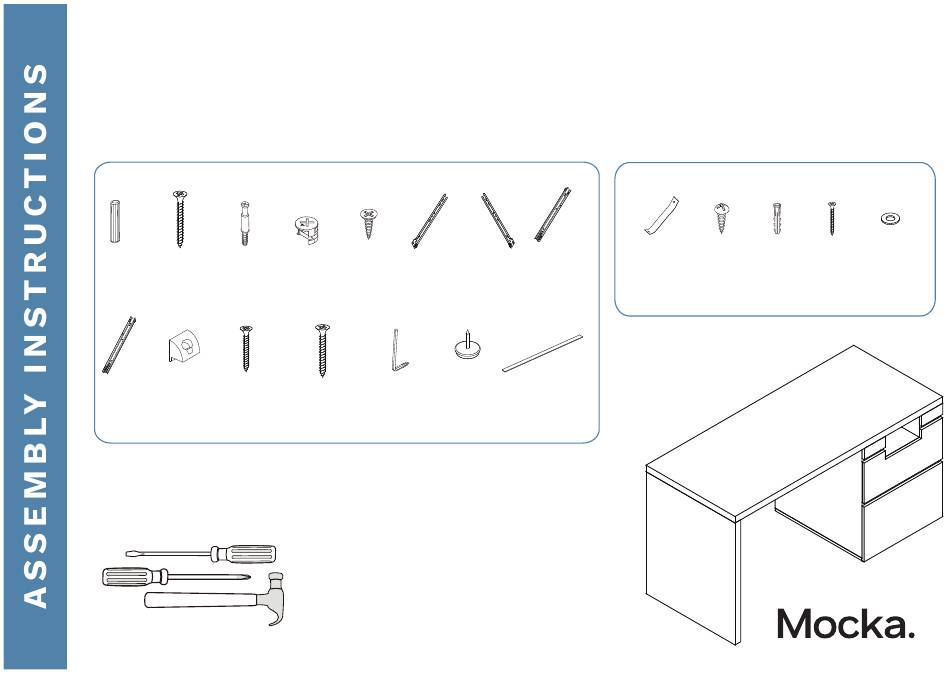

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
safety
slide
slide
strap x1
rail x2
rail x2
O
aluminum
strip
x2
V
W
X
Y
screw
wall
wall
x1
anchor
screw
x1
x1
Wall Strap
Z
washer
x2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sadie and is the answer not in the manual?

Questions and answers

Related Manuals for Mocka Sadie

Summary of Contents for Mocka Sadie

  • Page 1 fixing devices from those supplied. Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 2 Insert 4x bolts (C) into panel [3]. Tighten with a screwdriver. Tighten with a screwdriver. Insert 6x bolts (C) into panel [4] as shown. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 3 Insert 4x bolts (C) into panels [5] and [24] as shown. Attach panels [5] and [24] to panels [6] with 6x screws (B) Tighten with a screwdriver. and 4x dowels (A). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 4 Attach panels [7] to panels [5] and [24], secure with 4x locking nuts (D). Attach panel [4] to panel [7], secure with 2x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 5 Insert 8x bolts (C) into panel [9]. Tighten with a screwdriver. Attach panel [7] to panel [3], attach panel [8] to panels [3] and [4], secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 6 Insert 4x bolts (C) into panels [10]. Attach panels [10] and [11] together dowels (A). Tighten with a screwdriver. with 4x locking nuts (D). Tighten with a screwdriver. Attach 8x plastic glide (N) to panels [10] and [11] using a hammer. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 7 Slide panels [23] down along the grooves between the panels [3] and [4]. Attach panels [10] and [11] to panel [9] with 8x locking nuts (D). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 8 Sadie Desk Insert 2x bolts (C) into panel [2] as shown. Tighten with a screwdriver. Attach panel [12] to panel [2] with 2x locking nuts (D). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 9 Attach panel [12] to panel [4] with 2x locking nuts (D). Insert 10x dowels (A) into panels [2], [3], [4], [5] and [24]. Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 10 Sadie Desk Insert 21x bolts (C) into panel 1] as shown. Attach panels [13] to panel [1] with 4x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 11 Attach panel [1] to panels [2], [3], [4], [5] and [24] with 17x locking nuts (D). Insert 8x bolts (C) into panels [14] and [15] as shown. Tighten with an Allen Key (M). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 12 Slide panels [20] down along the grooves between the panels as shown. Attach panels [18] and [19] to panel [14], secure with 4x locking [16], [17], [18] and [20] as shown. nuts (D) as shown Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 13 (O). Tighten with a screwdriver. Attach panels [18], [19] as shown. Secure with 12x screws (E) and tighten with a screwdriver. and [22] as shown using 4x screws (L). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 14 Ensure the drawers slide easily along the rails. with 4x screws (K). Now attach 1x safety strap (V) to the back edge of panel [1] using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 15 (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
