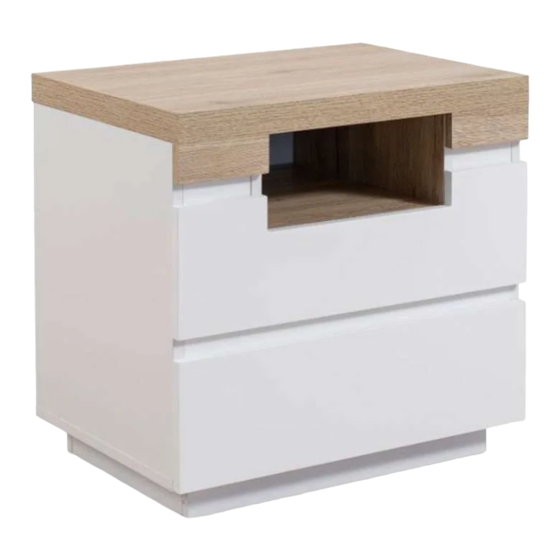

Sadie Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
locking
dowel
x44
nut x44
x16
G
H
I
L1
wedge
screw
slide
x4
rail x2
x4
Hardware Supplied
Phillips screwdriver and hammer required
For quicker assembly, we recommend the use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au
| PO BOX 6171, Maroochydore, QLD, 4558
D
E
small
screw
long screw
screw x24
x8
J
K
J1
L2
J2
plastic
slide
glides x6
rail x2
V
W
F
x8
screw
safety
x1
strap x1
L
X
Y
allen key
wall
wall
x1
anchor
screw
x1
x1
Z
washer
x2
Wall Strap
WARNING:
Any furniture that is not anchored to a wall has
the potential to tip over in certain circumstances, i.e. if a
child attempts to climb up on the furniture or in the event of
an earthquake. Accordingly, we recommend that all
furniture is anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that
different wall materials may require different fixing devices
from those supplied.
1
