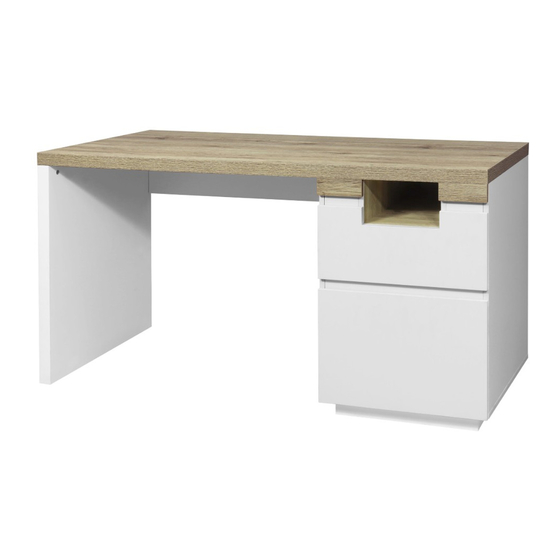

Sadie Desk
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
screw
bolt
dowel
x12
x18
x57
I
J
K
slide
wedge
screw
rail x2
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
locking
screw
slide
x24
nut x57
rail x2
L
M
screw
allen key
plastic
x8
glide x8
x1

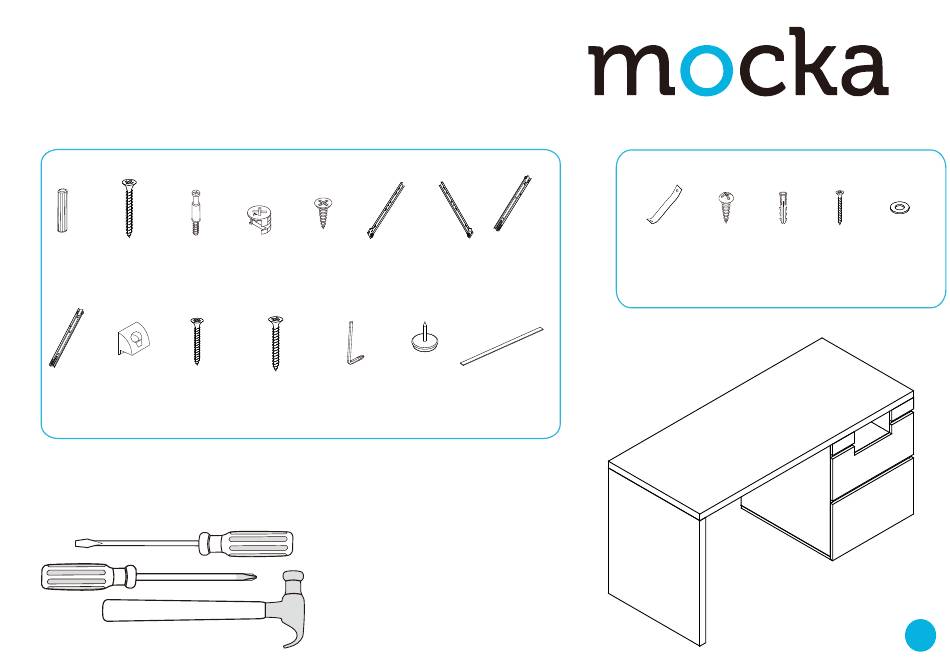

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
slide
slide
rail x2
rail x2
N
O
aluminum
strip
x2
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sadie Desk and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Sadie Desk

  • Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 2 Attach 2x slide rails (F) to panel [4] with 6x screws (E). Tighten a screwdriver. Insert 4x bolts (C) into panel [3]. Tighten with a screwdriver. with a screwdriver. Insert 6x bolts (C) into panel [4] as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 Insert 4x bolts (C) into panels [5] and [24] as shown. Tighten Attach panels [5] and [24] to panels [6] with 6x screws (B) and 4x dowels (A). with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Attach panel [4] to panel [7], secure with 2x locking nuts (D). Attach panels [7] to panels [5] and [24], secure with 4x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 5 Insert 8x bolts (C) into panel [9]. Tighten with a screwdriver. Attach panel [7] to panel [3], attach panel [8] to panels [3] and [4], secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 6 Attach panel [9] to panels [3] and [4] with 6x screws (B) and 4x dowels (A). 4x locking nuts (D). Tighten with a screwdriver. Attach 8x plastic glide (N) Tighten with a screwdriver. to panels [10] and [11] using a hammer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 7 Attach panels [10] and [11] to panel [9] with 8x locking nuts (D). Slide panels [23] down along the grooves between the panels [3] and [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 8 3 12 Insert 2x bolts (C) into panel [2] as shown. Tighten with a screwdriver. Attach panel [12] to panel [2] with 2x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 9 Insert 10x dowels (A) into panels [2], [3], [4], [5] and [24]. Tighten Attach panel [12] to panel [4] with 2x locking nuts (D). Tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 10 3 13 Insert 21x bolts (C) into panel 1] as shown. Tighten with a screwdriver. Attach panels [13] to panel [1] with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 11 Insert 8x bolts (C) into panels [14] and [15] as shown. Tighten with Attach panel [1] to panels [2], [3], [4], [5] and [24] with 17x locking nuts (D). a screwdriver. Tighten with an Allen Key (M). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 12 4x locking nuts (D) as shown. Attach panels and [20] as shown. [18] and [19] to panel [14], secure with 4x locking nuts (D) as shown Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 13 2x aluminum strip (O). Tighten with a screwdriver. Attach as shown. Secure with 12x screws (E) and tighten with a screwdriver. panels [18], [19] and [22] as shown using 4x screws (L). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 14 Ensure the drawers slide easily along the rails. with 4x screws (K). Now attach 1x safety strap (V) to the back edge of panel [1] using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 15 (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
