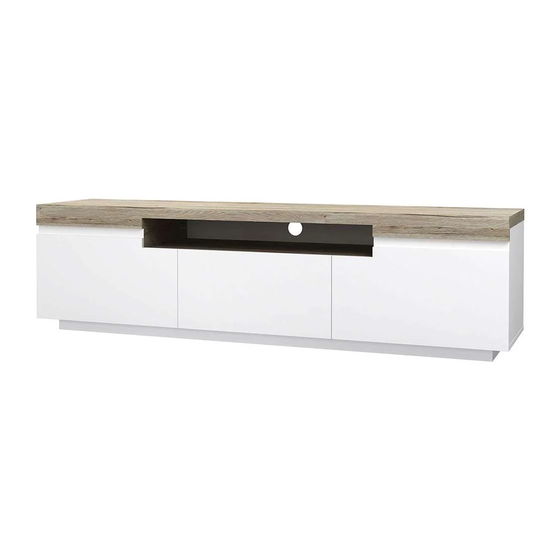

Mocka Sadie Assembly Instructions Manual

Sadie
Entertainment Unit
Thank you for your purchase.
Please follow the instructions below for correct assembly
A B C
bolt dowel
locking
x60 nut x60 x24
G H
I2
wedge
screw slide
x4 rail x3
x4
Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
D E F
small screw long screw
screw x36 x12
x12
I K
J
J2
I1
J1
plastic
slide
glide x10
rail x3
WARNING: Any furniture that is not anchored to a wall has
V W
the potential to tip over in certain circumstances, i.e. if a
child attempts to climb up on the furniture or in the event
of an earthquake. Accordingly, we recommend that all
furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend
these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please
note that different wall materials may require different
safety screw
fixing devices from those supplied.
x2
strap x2
X Y
wall
wall
anchor
screw
x2
x2
Z
washer
x4
Wall Strap
