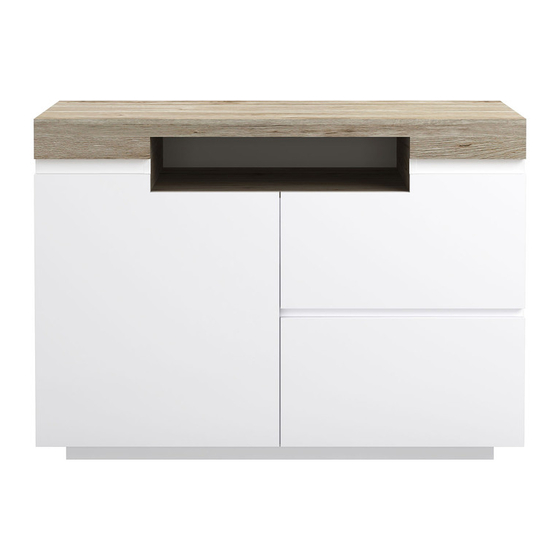

Sadie Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
dowel
locking
x48
x20
screw x24
nut x48
H
I
J
J1
I2
I1
J2
screw
slide
slide
x12
rail x2
rail x2

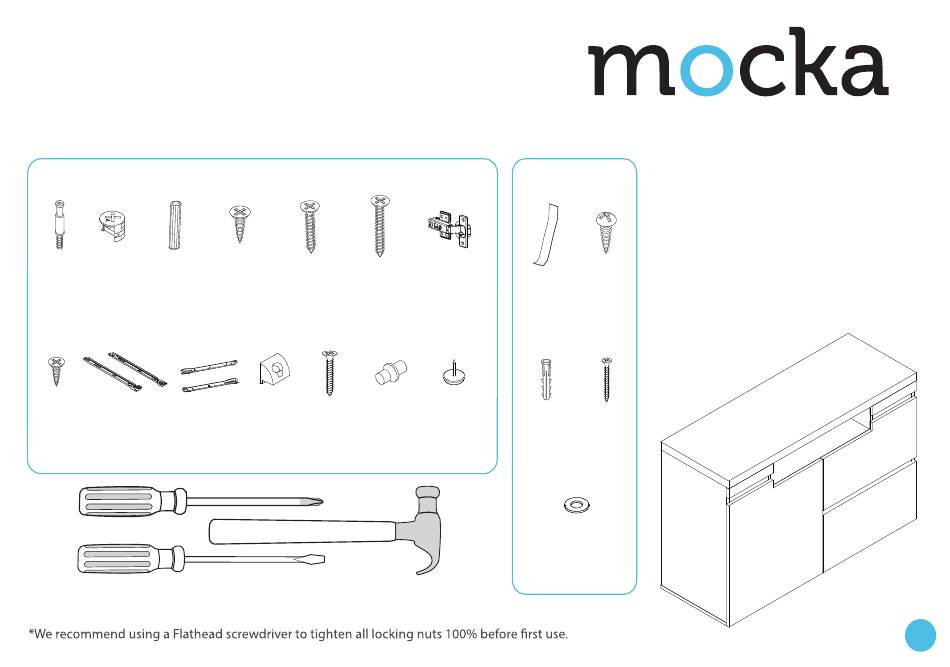

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
| PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
small
screw
long screw
x8
x10
K
L
M
wedge
screw
shelf
x 10
x10
plug x4
V
W
G
hinge
screw
safety
x2
x2
strap x2
N
X
Y
plastic
wall
wall
glide x8
anchor
screw
x2
x2
Z
washer
x4
Wall Strap
WARNING:
Any furniture that is not anchored to a
wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend
these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but
please note that different wall materials may require
different fixing devices from those supplied.
1
Advertisement
Related Manuals for Mocka Sadie Buffet
Summary of Contents for Mocka Sadie Buffet
- Page 1 Sadie Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Sadie Buffet Assembly Instructions Attach 2x slide rails (I2) to panel [5] using 6x screws (D). Attach 2x slide Insert 2x bolts (A) into panel [3] and 2x bolts (A) into panel [4]. Insert 2x rails (I1) to panel [8] using 6x screws (D). Tighten with a screwdriver.
- Page 3 Sadie Buffet Assembly Instructions Attach panel [8] to panel [3] using 2x dowels (C) and secure with 2x Attach panels [6] and [7] to panel [3] using 4x dowels (C) and secure with locking nuts (B). Tighten with a screwdriver.
- Page 4 Sadie Buffet Assembly Instructions Attach panel [20] to panel [7] using 2x locking nuts (B). Attach panel Attach panel [20] to panel [6] using 2x locking nuts (B). Attach panel [4] [15] to panel [8] using 2x locking nuts (B). Attach panel [5] to panels to panel [20] using 2x locking nuts (B).
- Page 5 Sadie Buffet Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Insert 8x dowels (C) and 12x bolts (A) into top panel [1]. Attach 2x panel [9] to top panel [1] using 4x locking nuts (B). mocka.co.nz | mocka.com.au mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Sadie Buffet Assembly Instructions Attach panels [5], [7], [6] and [4] to top panel [1] using 8x locking nuts Slide panel [10] down along the grooves between panels [5] and [4]. (B). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Sadie Buffet Assembly Instructions Attach panel [2] to panels [5], [8] and [4] using 6x dowels (C) and 6x Insert 10x bolts (A) into panel [2]. screws (F). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Sadie Buffet Assembly Instructions Insert 2x bolts (A) into each panel [22]. Attach 8x plastic glides (N) into the panels as shown. Attach panels [21] and [22] together using 4x locking nuts (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 9 Sadie Buffet Assembly Instructions strap Attach panel [22] and [21] to panel [2] using 10x locking nuts (B). Attache 10x wedges (K) to the back of the unit as shown and secure Tighten with a screwdriver using 10x screws (L). Attach 2x safety straps (V) and 2x washers (Z) to the top panel using 2x screws (W).
- Page 10 Sadie Buffet Assembly Instructions Insert 4x bolts (A) into panel [13]. Insert 4x bolts (A) into panel [14]. Attach Attach back panels [18] to the side panels using 18x screws (E). Attach side panels [16] and [17] to panel [13] and slide panel [19] down between 1x slide rail (J1) and 1x slide rail (J2) to the sides of each drawer and the grooves of the side panels to form the base of the drawer.
- Page 11 Sadie Buffet Assembly Instructions Insert the drawers as shown, ensuring they slide smoothly and easily Rest shelf panel [11] on top of the shelf plugs. along the rails. Insert 4x shelf plugs (M) into the unit at the desired height.
- Page 12 Sadie Buffet Assembly Instructions strap NOTE: If the doors are uneven or there is a gap in the middle, loosen or tighten the screw on the door wall hinge until they are sitting flush. plug screw Attach 2x hinges (G) to door panel [12] using 4x screws (H) as shown.
