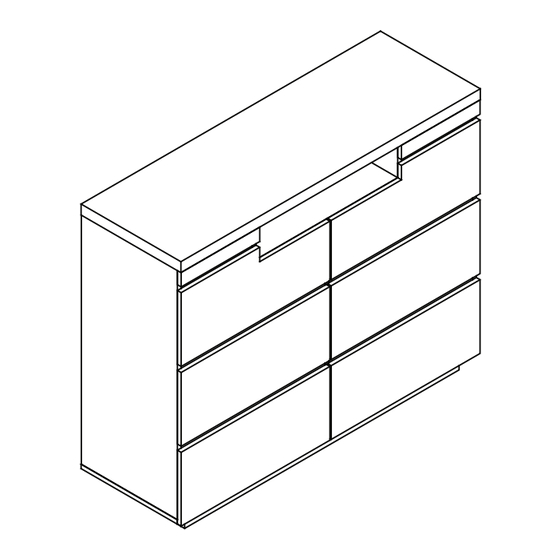

Mocka Sadie Assembly Instructions Manual

Six drawer
Hide thumbs Also See for Sadie:

Advertisement

Quick Links

Download this manual
Sadie
Six Drawer
Thank you for your purchase.
Please follow the instructions below for correct assembly
A
B
C
dowel
screw
bolt
x10
x68
x30
J
H
I
slide
wedge
slide
rail x6
x8
rail x6

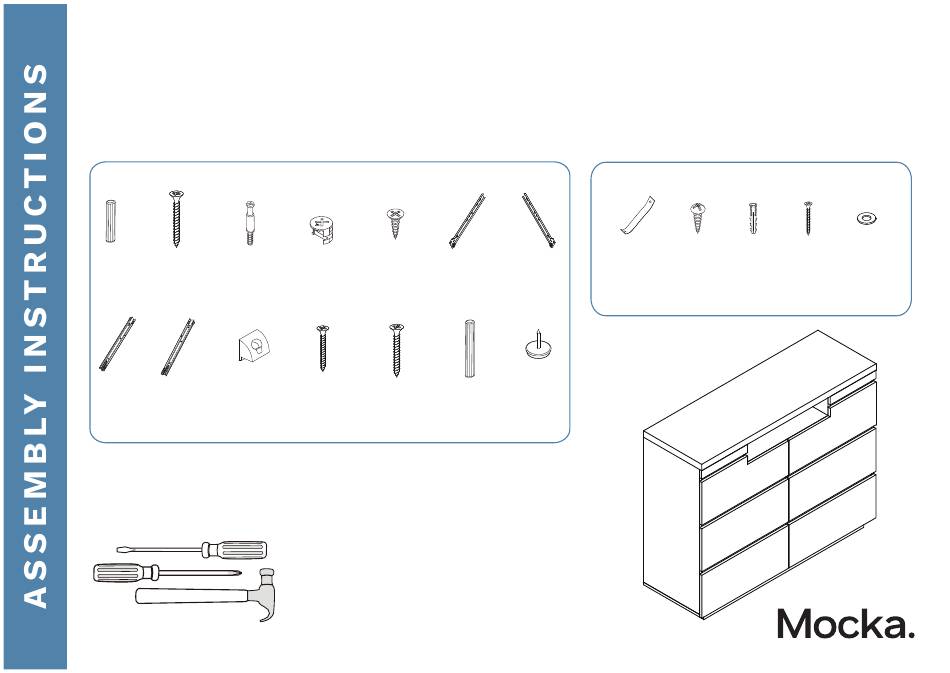

Hardware Supplied
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-
quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
D
E
locking
screw
slide
nut x68
x72
rail x6
K
L
M
screw
long
screw
x8
x24
dowel
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
V
safety
slide
strap x1
rail x6
N
plastic
glide x10
x3
W
X
Y
screw
wall
wall
washer
x4
anchor
screw
x1
x1
Wall Strap
Z
x2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sadie and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocka Sadie

Summary of Contents for Mocka Sadie

  • Page 1 fixing devices from those supplied. Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 2 Attach 3x slide rails (F) and 3x slide rails (G) to panels [3] Insert 8x bolts (C) into panels [3] and [4]. Tighten with a screwdriver. and [4] as shown with 18x screws (E). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 3 Attach 3x slide rails (F) and 3x slide rails (G) to panel [5] as shown Insert 6x bolts (C) into panel [5]. Tighten with a screwdriver. with 18x screws (E). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 4 Attach panels [10] and [23] to panel [4], secure with 3x locking nuts (D) and 3x dowels (A). Tighten with a screwdriver. and 3x dowels (A). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 5 Insert 2x bolts (C) into panel [8], attach panel [8] to panels [6] and [7] Insert 2x bolts (C) into panels [6] and [7]. Tighten with a screwdriver. with 4x screws (B) and 4x dowels (A). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 6 Attach panels [9] to panels [6] and [7] with 2x locking nuts (D) Attach panels [5] to panel [8] with 2x locking nuts (D) and 2x and 2x dowels (A). Tighten with a screwdriver. dowels (A). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 7 Attach panels [4], [10] and [23] to panels [5] and [9]. Secure with 4x locking nuts (D) and 1x dowel (A). Tighten with a screwdriver. locking nuts (D), 3x long dowels (M) and 1x dowel (A). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 8 Insert 12x bolts (C) and 8x dowels (A) into panel [1] as shown. Tighten with a screwdriver. Attach panels [11] to panel [1] with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 9 Attach panels [12] together with connect sticks [24]. Slide panels [12] Insert 10x bolts (C) into panel [1]. Tighten with a screwdriver. down along the grooves between the panels [3] and [4]. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 10 Insert 4x bolts (C) into panels [13]. Attach panels [13] and [14] together and 6x dowels (A). Tighten with a screwdriver. with 4x locking nuts (D). Tighten with a screwdriver. Attach 10x plastic glide (N) to panels [13] using a hammer. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 11 Attach panels [13] and [14] to panel [2] with 10x locking nuts (D). Insert 24x bolts (C) into panels [15], [16], [17] and [18] as shown. Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 12 Attach panels [19] and [20] to panels [15], [16], [17] and [18] secure Slide panels [21] down along the grooves between the panels with 24x locking nuts (D) as shown. Tighten with a screwdriver. [19] and [20] as shown. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 13 Attach slide rail (I) and slide rail (H) to the underside of the side panels Tighten with a screwdriver. as shown. Secure with 36x screws (E) and tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 14 8x screws (K). Now attach 1x safety strap (V) to the back edge of panels [12] using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver.Attach panels [12] to panel [5] with 3x screws (W). Tighten with a screwdriver mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 15 (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
