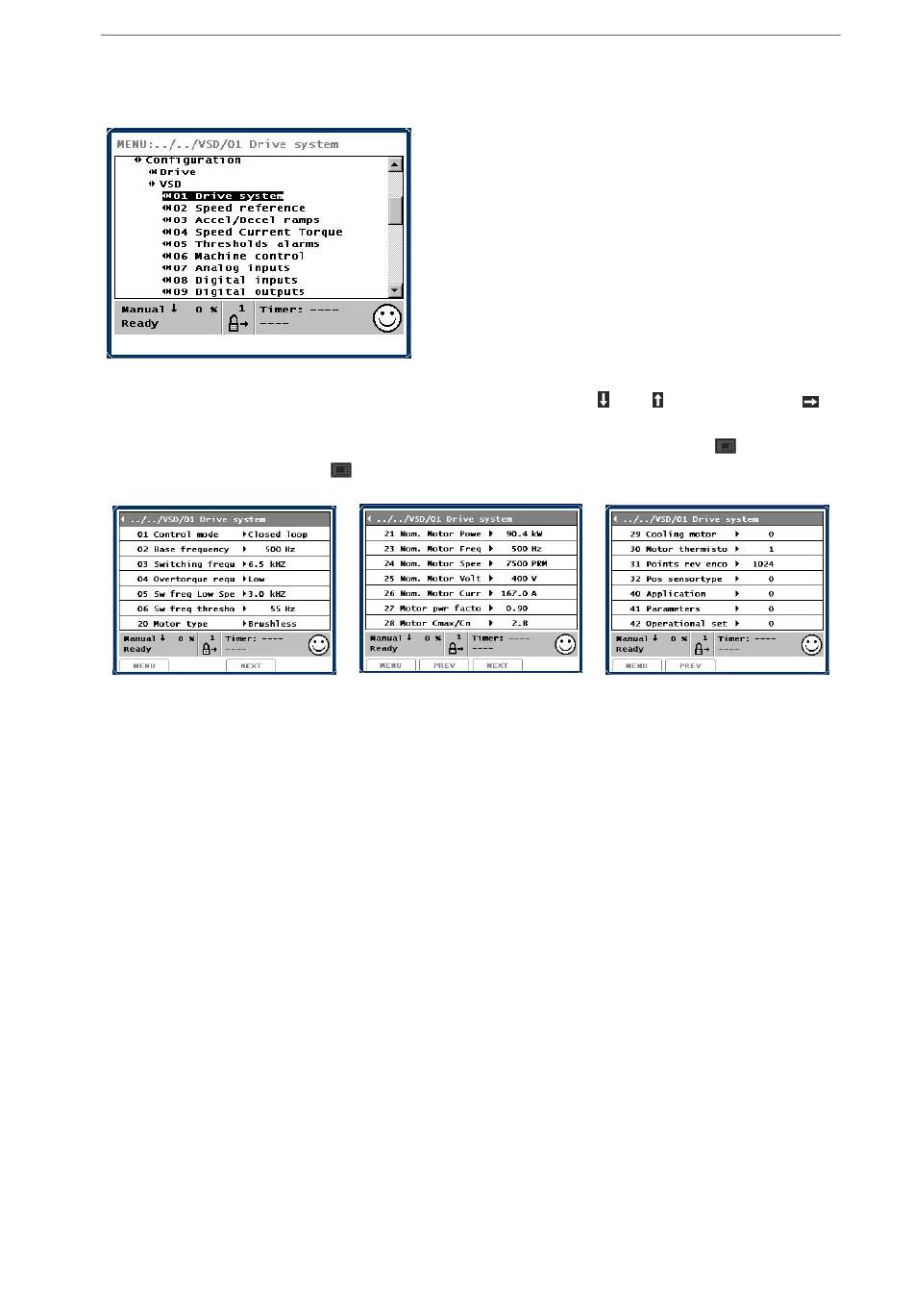

In the VSD menu you move the cursor up and down with the
go to the sub-menu.
When you are inside the sub-menu you must navigate in the pages with the
get to the next page and the
Sub menu 01 - first page
Sub-menu list:
01 Drive system
02 Speed reference
03 Accel/Decel ramps
04 Speed current torque
05 Threshold alarms
06 Machine control
07 Analog inputs
08 Digital inputs
09 Digital outputs
10 Drive system status
11 End-user menu
12 Progr. threshold
13 Serial link
14 PID controller
15 Enable weighting
16 Regenerative mode
17 NA
18 Fault
19 Internal use
20 NA
21 NA
22 Diagnostic
For further explanation of the SABCube drive parameters please refer to the Leroy Somer fre-
quency drive manual.
/PREV key to get to the previous page.
F2
- second page
180/319
and keys, and press
/NEXT key to
F3
- third page
Engineering manual - Unisab III 1.10
001930 en 2014.09
Set-up
to
