Set-up

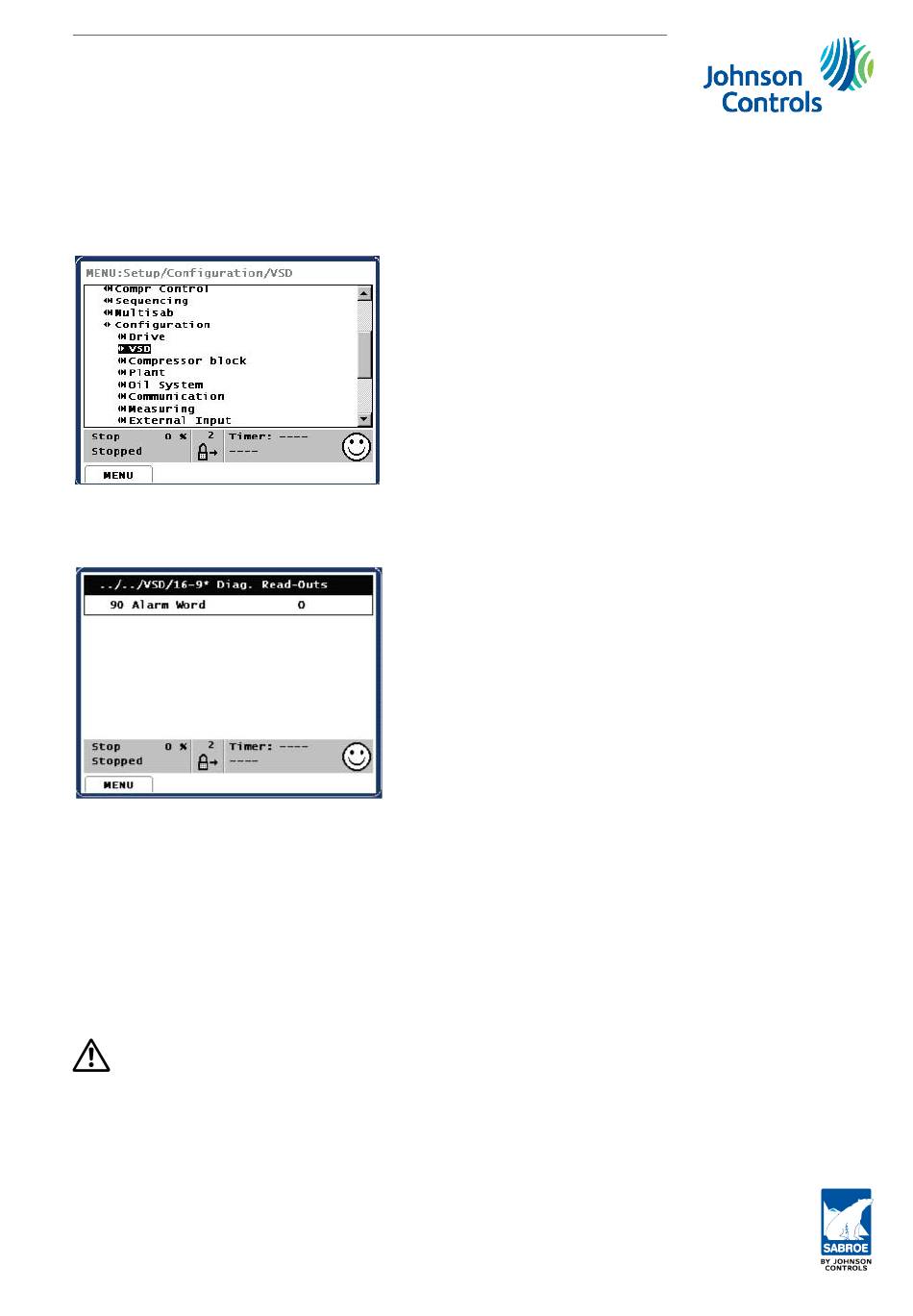

6.4.2 VSD

This menu shows parameters from the connected frequency converter.
Note: The VSD menu will only be visible if Drive Com is set to LS or DA, see subsection
6.4.1. Drive - 7: Drive Com for further information.
For the Danfoss (DA) frequency drive (e.g. SABflex) the VSD menu includes only the drive
alarm word information found in VSD sub menu 16-19*:
The Danfoss VSD menus intended for drive commissioning are not available from the Unisab
III VSD menu but only with the Danfoss drive interface unit mounted in the drive front.
For further explanation on this drive alarm information, please refer to the Danfoss frequency
drive manual.
For the Leroy Somer (LS) frequency drive (SABCube 109 – 159) the VSD menu includes the
approximate 530 set-up parameters available for the SABCube Leroy Somer frequency drive.
The VSD menu system is build up into 22 sub-menus. As these sub-menus are intended for
drive commissioning, they are only available in English.
Warning!
Only authorised personal is allowed to service the frequency drive and to change the VSD pa-
rameter settings. It is also very important that you comply with the drive safety regulations.
Failure to do so may cause damage to equipment and affect personal safety.
