If the Cold store function has been selected in the menu Compr. Control, the compressor will
not start until the measured value is outside the P Band. After this it will regulate normally in
accordance with the set point.

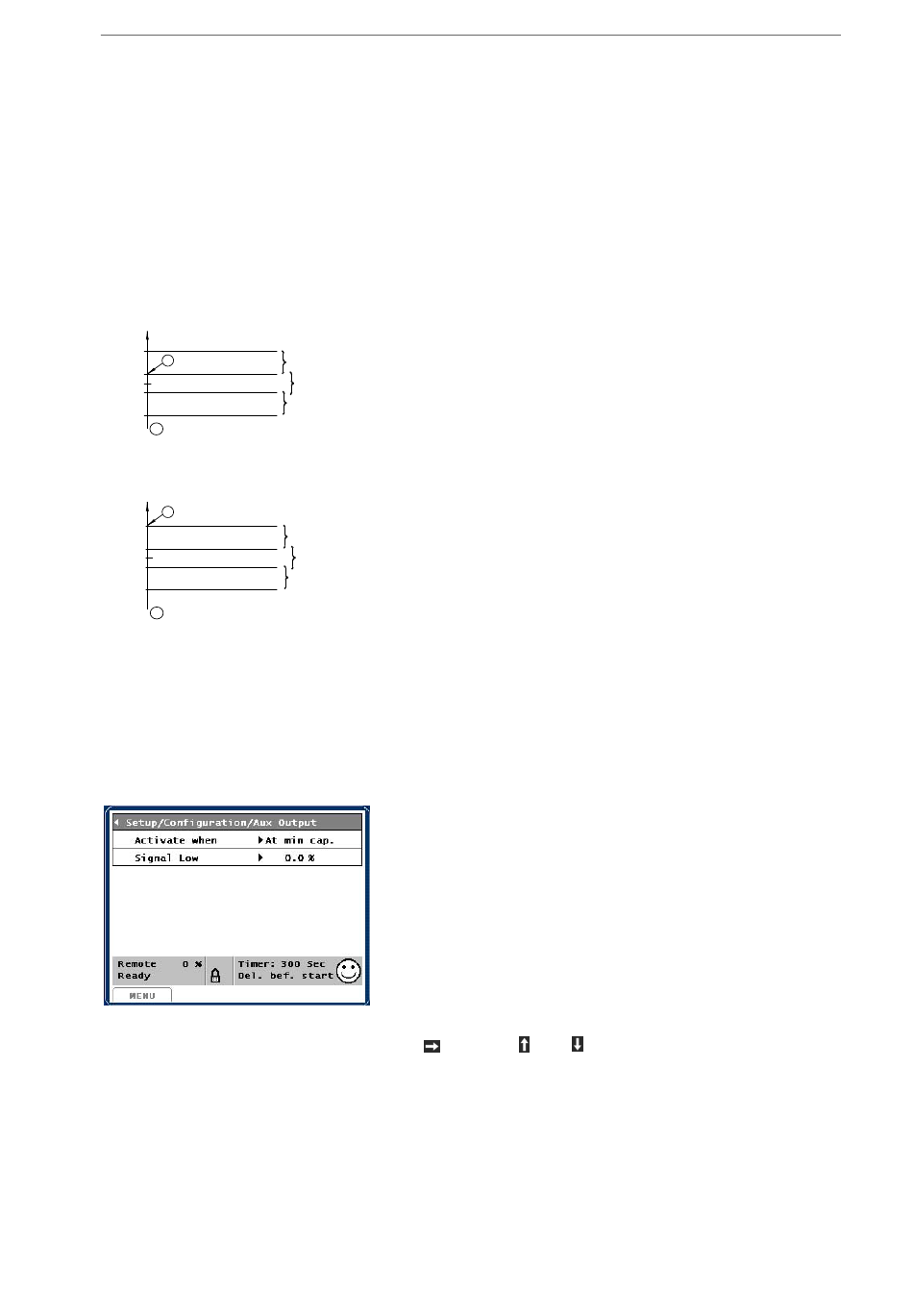

Example of cold store function: Unisab III is set for suction pressure regulation with
Set point (Sp) = -40°C
Neutral zone (Nz) = 4 K
Proportional band (Pb) = 5 K
Normal
Suct.press (°C/R)
-33
1
-38
-40
Compressor start
1
(Just outside Nz)
Cold store function
Suct.press (°C/R)
1
-33
-38
-40
Compressor start
1
(Just outside Pb)
Note: It is not recommended to use the cold store function on screw compressors.

3.5.6 Aux. output

In the menu Configuration/Aux Output the following picture appears:
Place the cursor on Activate when. Press
• Not defined
• Ready
• At min. cap.
• At max. cap.
• Running
Pb = 5 K
Nz = 4 K
Pb = 5 K
Pb = 5 K
Nz = 4 K
Pb = 5 K
and with
124/319
Compressor control and surveillance
and choose between:
