Outdoor Fire Pit Burning Spurs & Kits
Burning
Description
Spur Only

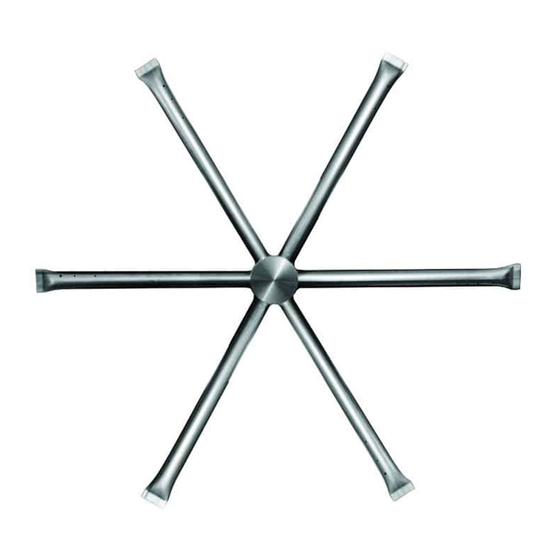

DBS-12
12-inch Spur Burner
DBS-16
16-inch Spur Burner
DBS-22
22-inch Spur Burner
DBS-31
31-inch Spur Burner
DBS-36
36-inch Spur Burner
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This system requires a minimum 18 square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Warning: For Outdoor Use Only
Burning
Spur Kit
DBS-12K
DBS-16K
DBS-22K
DBS-31K
DBS-36K
INSTALLATION PRECAUTION:
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description
12-inch Spur Burner Kit
16-inch Spur Burner Kit
22-inch Spur Burner Kit
31-inch Spur Burner Kit
36-inch Spur Burner Kit
PN#9077
Input Rating
50,000 Btu's
75,000 Btu's
100,000 Btu's
175,000 Btu's
225,000 Btu's
Advertisement
Table of Contents
Related Manuals for Firegear DBS-12
Summary of Contents for Firegear DBS-12

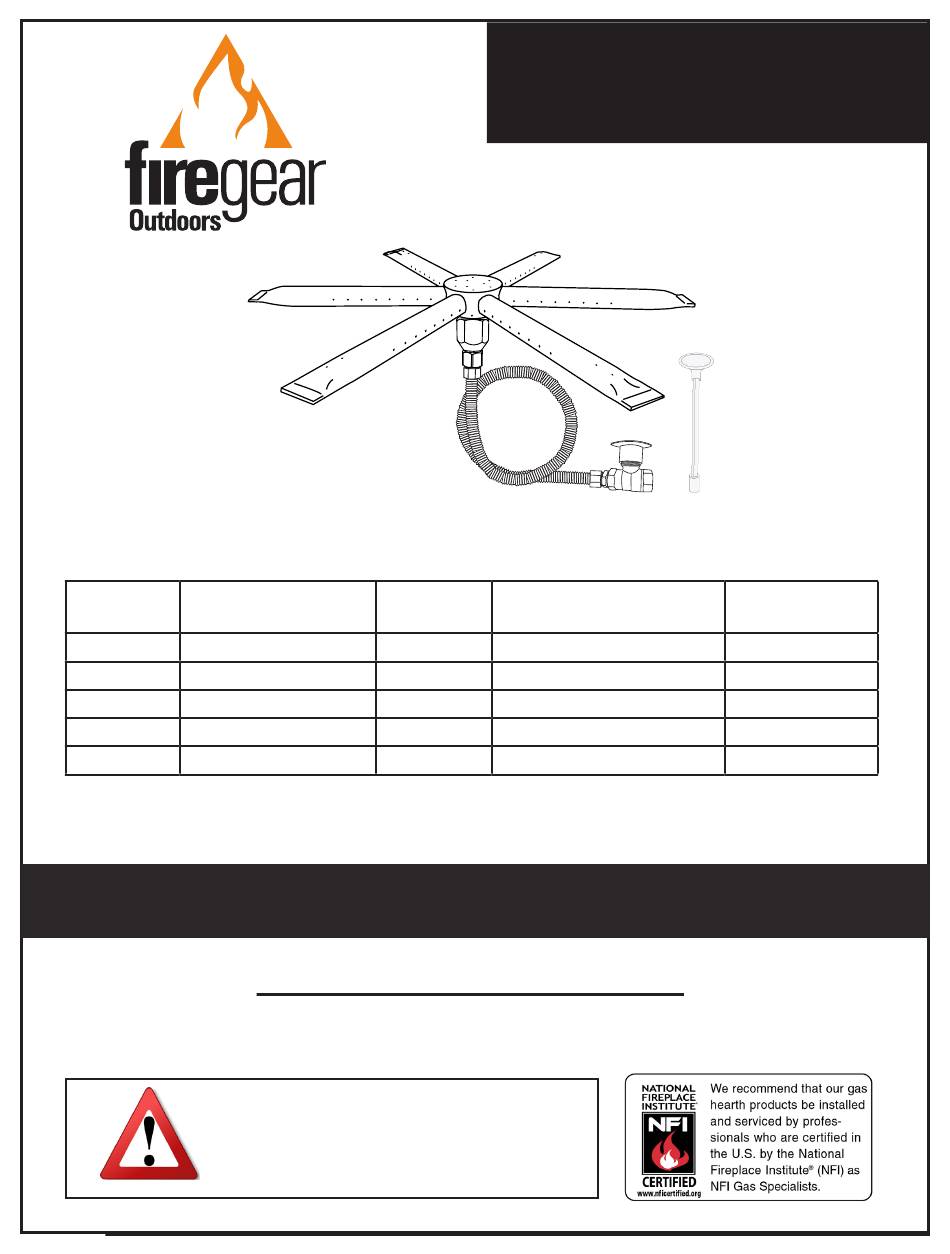

- Page 1 SERIAL #: Outdoor Fire Pit Burning Spurs & Kits Burning Description Burning Description Input Rating Spur Only Spur Kit DBS-12 12-inch Spur Burner DBS-12K 12-inch Spur Burner Kit 50,000 Btu’s DBS-16 16-inch Spur Burner DBS-16K 16-inch Spur Burner Kit 75,000 Btu’s...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING FIRE OR EXPLOSION HAZARD...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product can expose you to Chromium, which is known to the state of California to cause cancer and birth defects or other reproductive harm. (For more information, go to www.p65warnings.ca.gov) TABLE OF CONTENTS Specifications Preparation for Non-Combustible Structure Hard Piping to Fire Pit High Elevation Cross Ventilation Requirements... -
Page 4: Specifications
Table 1 Installation specifications Description: Spur Burners are provided with a burner and Natural gas (NG) orifice only (i.e. DBS-12) and Spur Burner Kits are provided with Spur Burner, Natural gas (NG) orifice, key valve assembly and flex line (i.e. DBS-12K). -
Page 5: Preparation For Non-Combustible Structure
2- 1” x 9” Slots Per Side or to a smaller size. Input should be reduced 4% for each 1000 feet 2- Firegear 6 x12 vents beyond the 4500 feet above sea level. Check with your local gas utility for assistance in determining the proper orifice in your Fire Pit location. -
Page 6: Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 7: Installation Into An Approved Enclosure
9. These products are designed for outdoor use only. Not approved for any indoor use or any enclosed space. 10. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 8: Burning Spur Assembly
BURNING SPUR ASSEMBLY The burner panfor the Burning Spur needs a center hole a minimum of ⅞ -inch in diameter. We strongly recommend using a pan for any Propane or LP Gas installations. Once the Burning Spur is placed into the center hole of your fire pit pan then install the orifice (OAS) and fitting (U3-8D-S) as shown in Fig. -
Page 9: Typical Installation Drawings
TYPICAL INSTALLATION DRAWINGS Non-Combustible Spur Burner Fire Pit Pan Fire Pit Enclousure Key Valve Shut-O Gas Supply NOTE: Key valve and flexible gas lines are supplied. Gas shut-off is not supplied. Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional... -
Page 10: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 11: Replacement Parts
REPLACEMENT PARTS Drawings not to scale. Burning Spur Kit REV. B Page 11... -
Page 12: Replacement Parts List
BURNING SPUR REPLACEMENT PARTS Item Description Qty. Part Number DBS-12/ DBS-12K (Burner only) B-SPUR12 DBS-16/ DBS-16K (Burner only) B-SPUR16 DBS-22/ DBS-22K (Burner only) B-SPUR22 DBS-31/ DBS-31K (Burner only) B-SPUR31 DBS-36/ DBS-36K (Burner only) B-SPUR36 OAS# (Orifice air shutter) for Natural Gas Gas Fire Pits... -
Page 13: Burning Spur Contents
Burning Spur Only Contents Models DBS-12 B-Spur DBS-16 DBS-22 DBS-31 DBS-36 OAS# U3-8D-S Burning Spur Kit Contents Models DBS-12K B-Spur DBS-16K DBS-22K DBS-31K DBS-36K OAS# U3-8D-S Burning Spur Kit REV. B Page 13... -
Page 14: Converting To Liquid Propane (Lp) Gas
CONVERTING BURNING SPUR TO LP GAS Converstion Kit Common Parts Btu Ratings LP Orifice Models OAS-LPK47 S499-8; 113-SS4-D5; 50,000 OAS-LP47 DBS-12 U3-8D-S (14.65kW) DBS-12K OAS-LPK41 S499-8; 113-SS4-D5; 75,000 OAS-LP41 DBS-16 U3-8D-S (21.98kW) DBS-16K OAS-LPK35 S499-8; 113-SS4-D5; 100,000 OAS-LP35 DBS-22 U3-8D-S (29.30kW) -
Page 15: Fire Pit Maintenance/ Trouble Shooting
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 16: Optional Accessories
ACCESSORIES The following accessories are available from your local Firegear Outdoors dealer/distributor. Round Flat Disc Square Pans Round Pans Model: Fits Spur Model Model: Fits Spur Model: Fits Spur Model PAN-SS26D DBS-16K PAN-SS20S DBS-16K PAN-SS16R DBS-12K PAN-SS29D DBS-22K PAN-SS19R DBS-16K... - Page 17 FIREGEAR LIMITED WARRANTY - 2020 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 18 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 19 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 20 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard Street, Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 Email: order@firegearoutdoors.com...
- Page 21 Notes: Burning Spur Kit REV. B Page 21...
- Page 22 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
