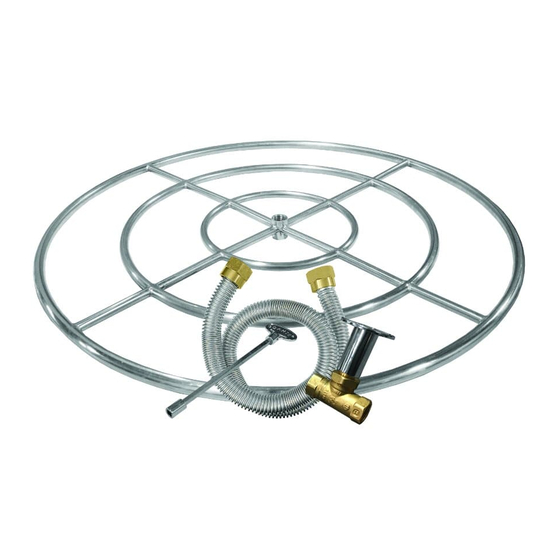

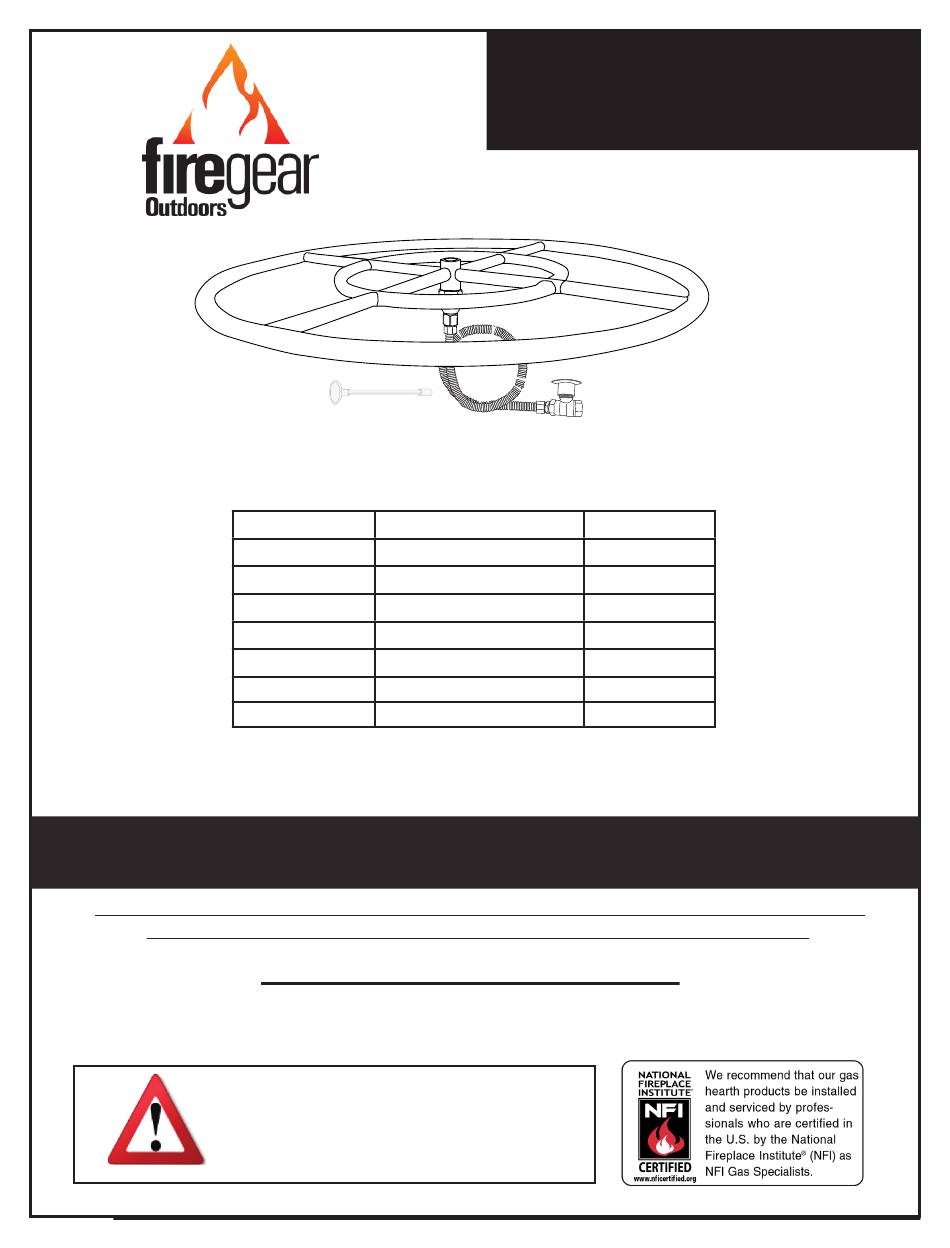

Fire Ring Kit
FG-FR-6SSK
FG-FR-12SSK
FG-FR-18SSK
FG-FR-24SSK
FG-FR-30SSK
FG-FR-36SSK
FG-FR-48SSK
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These burners are manufactured from the factory for Natural gas only. If you intend using LP gas then you
must purchase a LP conversion kit. See Table of Contents for LP converstion kit information.
This system requires a minimum 18 square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Warning: For Outdoor Use Only
Fire Ring Kit
MODELS
Description
6-inch Fire Ring Burner
12-inch Fire Ring Burner
18-inch Fire Ring Burner
24-inch Fire Ring Burner
30-inch Fire Ring Burner
36-inch Fire Ring Burner
48-inch Fire Ring Burner
Outdoor Fire Pit Burners
INSTALLATION PRECAUTION:
PN#90102A
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Natural Gas
50,000 Btu's
50,000 Btu's
75,000 Btu's
100,000 Btu's
250,000 Btu's
250,000 Btu's
250,000 Btu's
REV. A
Page 1
Advertisement
Table of Contents
Related Manuals for Firegear FG-FR-6SSK
Summary of Contents for Firegear FG-FR-6SSK
- Page 1 MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: SERIAL #: Fire Ring Kit MODELS Fire Ring Kit Description Natural Gas FG-FR-6SSK 6-inch Fire Ring Burner 50,000 Btu’s FG-FR-12SSK 12-inch Fire Ring Burner 50,000 Btu’s FG-FR-18SSK 18-inch Fire Ring Burner 75,000 Btu’s...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING If you smell gas: Do not store or use gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product can expose you to Chromium, which is known to the state of California to cause cancer and birth defects or other reproductive harm. (For more information, go to www.p65warnings.ca.gov) TABLE OF CONTENTS Specifications Preparation for Non-Combustible Structure High Elevation Cross Ventilation Requirements Pipe Sizing Chart... -
Page 4: Specifications
304 Stainless Steel. Burner pans should have ¼” drainage holes to prevent standing water in pan and the center hole for burner connection should be 1-inch diameter for kits FG-FR-6SSK, FG-FR-12SSK, FG-FR-18SSK, and FG-FR-24SSK. The FG-FR-30SSK, FG-FR-36SSK, and FG-FR-48SSK models require a 1¼” center hole. -
Page 5: Preparation For Non-Combustible Structure
2- 1” x 9” Slots Per Side or to a smaller size. Input should be reduced 4% for each 1000 feet 2- Firegear 6 x12 vents beyond the 4500 feet above sea level. Check with your local gas utility for assistance in determining the proper orifice in your Fire Pit location. -
Page 6: Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 7: Installation Into An Approved Enclosure
9. These products are designed for outdoor use only. Not approved for any indoor use or any enclosed space. 10. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 8: Fire Ring Assembly
Before you begin installing the fire ring into a burner pan ensure the center hole is a minimum of 1-inch in diameter (See Fig. 6). Models FG-FR-6SSK, FG-FR-12SSK, FG-FR- ½” Plug 18SSK, and FG-FR-24SSK are supplied with a ½” plug, ½”... -
Page 9: Installing Key Valve
FG-FR-30/36/48 MODELS Min. 1¼-inch Center Hole Before you begin installing the fire ring into your burner pan ensure the center hole is a minimum of 1¼ -inch in diameter (See Fig. 9). Models FG-FR-30SSK, FG-FR-36SSK, and FG-FR-48SSK come with a ¾” plug, ½”... -
Page 10: Typical Installation Drawings
TYPICAL INSTALLATION DRAWINGS Non-Combustible Burner Fire Pit Pan Fire Pit Enclousure Key Valve Shut-O Gas Supply NOTE: Key valve and flexible gas lines are supplied. Gas shut-off is not supplied. Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional Non-... -
Page 11: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 12: Replacement Parts
FIRE RING REPLACEMENT PARTS Drawings not to scale Fire Ring Burners REV. A Page 12... -
Page 13: Replacement Parts List
½” OD Flare to ¾” FIP Fitting (provided with 30”, 36”, and 48” Fire Ring kits) (Not shown) U1-8E-S ½” Female to ½” Female Coupling (All LPK kits) (Not shown) 99-8 See the Firegear Outdoors catalogue for a variety of fittings and flex connectors also available. Fire Ring Burners REV. A Page 13... -
Page 14: Fire Ring Part Contents (Models Fg-Fr-6/12/18/24Ssk)
Fire Ring Kit Contents ½” Plug Fire Ring Burner ½” Nipple MODELS: FG-FR-6SSK OAS# FG-FR-12SSK FG-FR-18SSK U3-8D-S FG-FR-24SSK Fire Ring Burners REV. A Page 14... -
Page 15: Fire Ring Part Contents (Models Fg-Fr-30/36/48Ssk)
Fire Ring Kit Contents ¾” Plug Fire Ring Burner U1-8E-S MODELS: Note: No ori ce FG-FR-30SSK required for Natural FG-FR-36SSK FG-FR-48SSK Fire Ring Burners REV. A Page 15... -
Page 16: Converting To Lp Gas
CONVERTING TO LP GAS Converstion Kit Common Parts Btu Ratings LP Orifice Models 78071 #99-8, #113-SS4-D5, 50,000 OAS-LP47 FG-FR-6SSK U3-8D-S (14.65kW) FG-FR-12SSK 78072 #99-8, #113-SS4-D5, 75,000 OAS-LP41 FG-FR-18SSK U3-8D-S (21.98kW) 78073 #99-8, #113-SS4-D5, 100,000 OAS-LP35 FG-FR-24SSK U3-8D-S (29.30kW) 78079 #99-8, #113-SS4-D5,... -
Page 17: Optional Accessories
1hr. timer L-Sedona (Sedona) 19pc (200lbs) Model: ESTOP2-5H 2.5hr. timer Model: FLEXFRAME-SS (2-piece) Model: FLEXFRAME-SS3 (3-piece) NOTE: See the Firegear Outdoors catalogue for a variety of fittings and flex connectors and other accessories. Fire Ring Burners REV. A Page 17... -
Page 18: Fire Pit Maintenance
FOR TECHNICAL SERVICE, CALL: (800) 966-8126 Firegear Outdoors 17322 Gothard St Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. Fire Ring Burners REV. A Page 18... - Page 19 FIREGEAR LIMITED WARRANTY - 2020 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 20 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 21 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 22 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard Street, Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 Email: order@firegearoutdoors.com...
