MAX SUPER ARM 1300

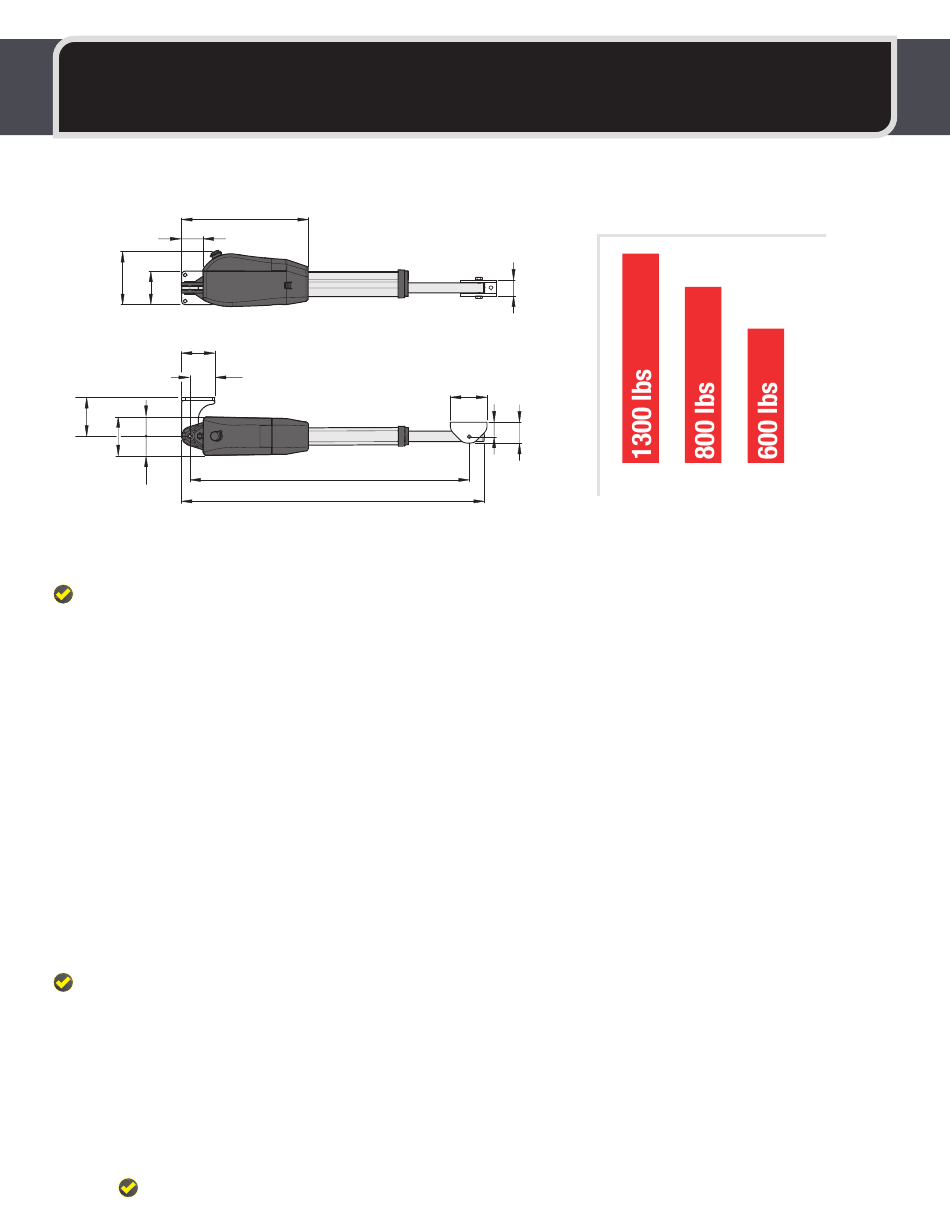

MECHANICAL SPECIFICA TIONS
180
100
"
Max = 54.75"
115
58
116
58
7.3"
• Shipping weight of Actuator: Super Arm 1300 (25 lbs)
• Shipping weight of AC Control Box (38 lbs)
• The patented brake system allows the operator to retract with extreme force. When the force
exceeds 2 tons, the clutch releases upon impact, then automatically resets. Causes for clutch
release include a vehicle strike while the gate is in motion.
• Stainless steel output shaft - 1 1/4"
• Direct gear drive (no internal chains, belts, or pulleys)
• Mechanical and electrical gate release functions
• Continuous duty cycle at extreme temperature range. No overheating
• Intelligent ramp-up and ramp-down for smooth gate operation
ELECTRICAL SPECIFICA TIONS
• 24 Volt DC motor
• Two independently adjustable closing speed controls with 16 positions each
• Switchable 115/230 voltage selection
• Adaptive DSP motor control for advanced motion control
• Real time performance analyzer and event log (OBD PORT and Black Box)
• Magic Box enables low voltage wiring capabilities for remote power up to 1000 ft
• On-board switch for solar mode enables 5 milliamp idle in sleep mode
• Gold contact input connections and automobile grade connectors
• -4F to 165F (-20C to +74C) operational range including battery backup without a heater
= Unique to Max SUPER ARM 1300
380
65
Min = 37"
100
75
C C
min 955 – max 1450
min 995 – max 1490
FEATURE LIST:
37
70
30
40
8ft 10ft 12ft
Gate Capacity
Max Weight/
Length
