Maximum Controls MAX SUPER ARM 1300 Manual page 11

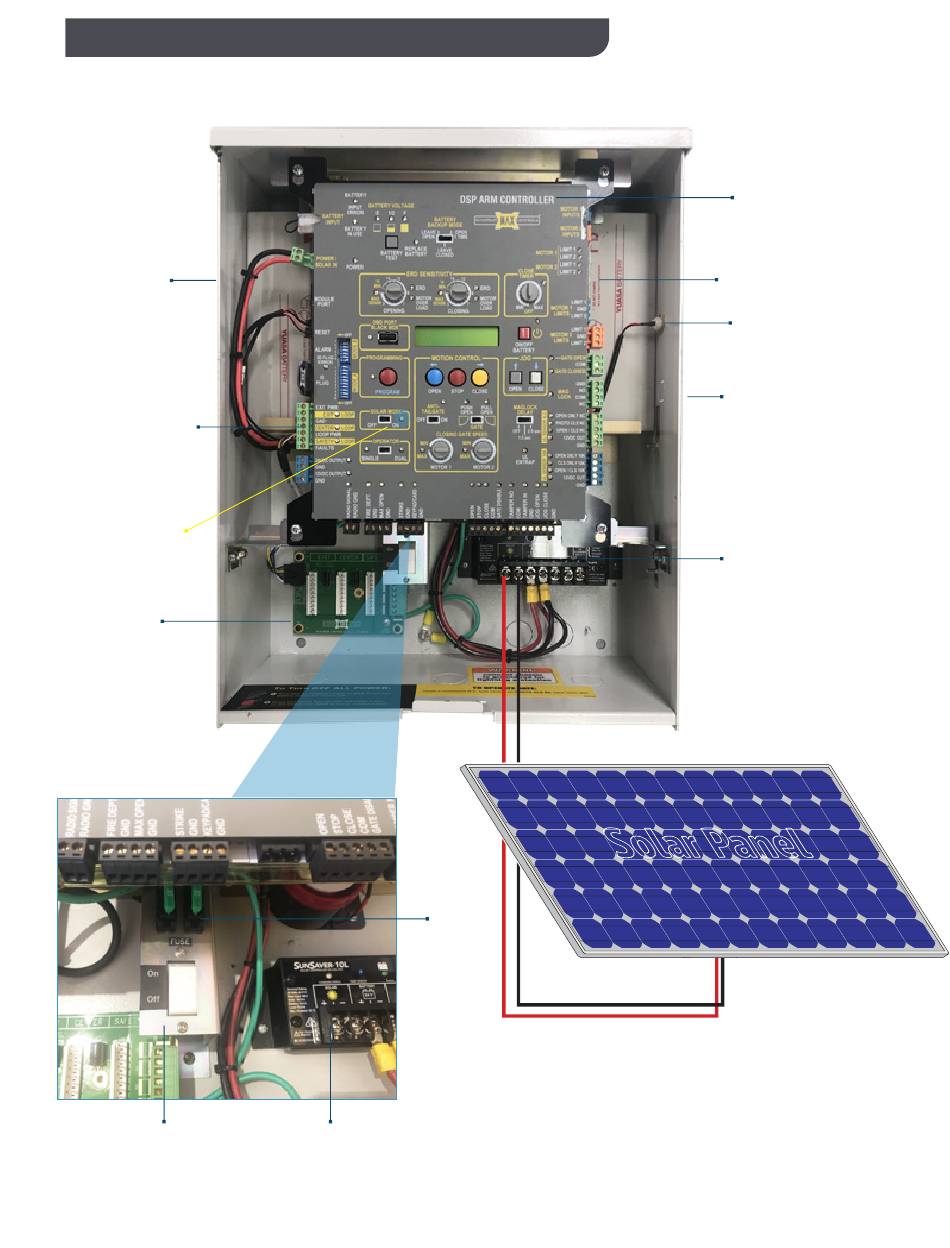

MAX SOLAR CONTROL BOX
Steel housing
2-layer protection
Gold zinc
Electrostatic
powder coating
Gold plated
automobile connectors
through the system
SOLAR MODE
Switch to enable
low power draw
for solar mode
Loop Rack
OPTIONAL
ON and OFF
Power Supply Switch
30A
FUSE
Solar Regulator
24V, 10A
(MORNING STAR)
Solar Panel
Wire solar panel terminals to
solar regulator input
Caution: polarity matters
Control Panel
Two 12V 18 AH
(AGM Rechargeable Batteries)
UL Reset Button
Jog Switch
OPTIONAL
Solar Regulator
24V, 10A
(MORNING STAR)
24V Solar Panel
Output: 36 V (Max) -
Open Circuit
POWE
SOLAR
Neg
