Summary of Contents for Nadoli PN-RD3601

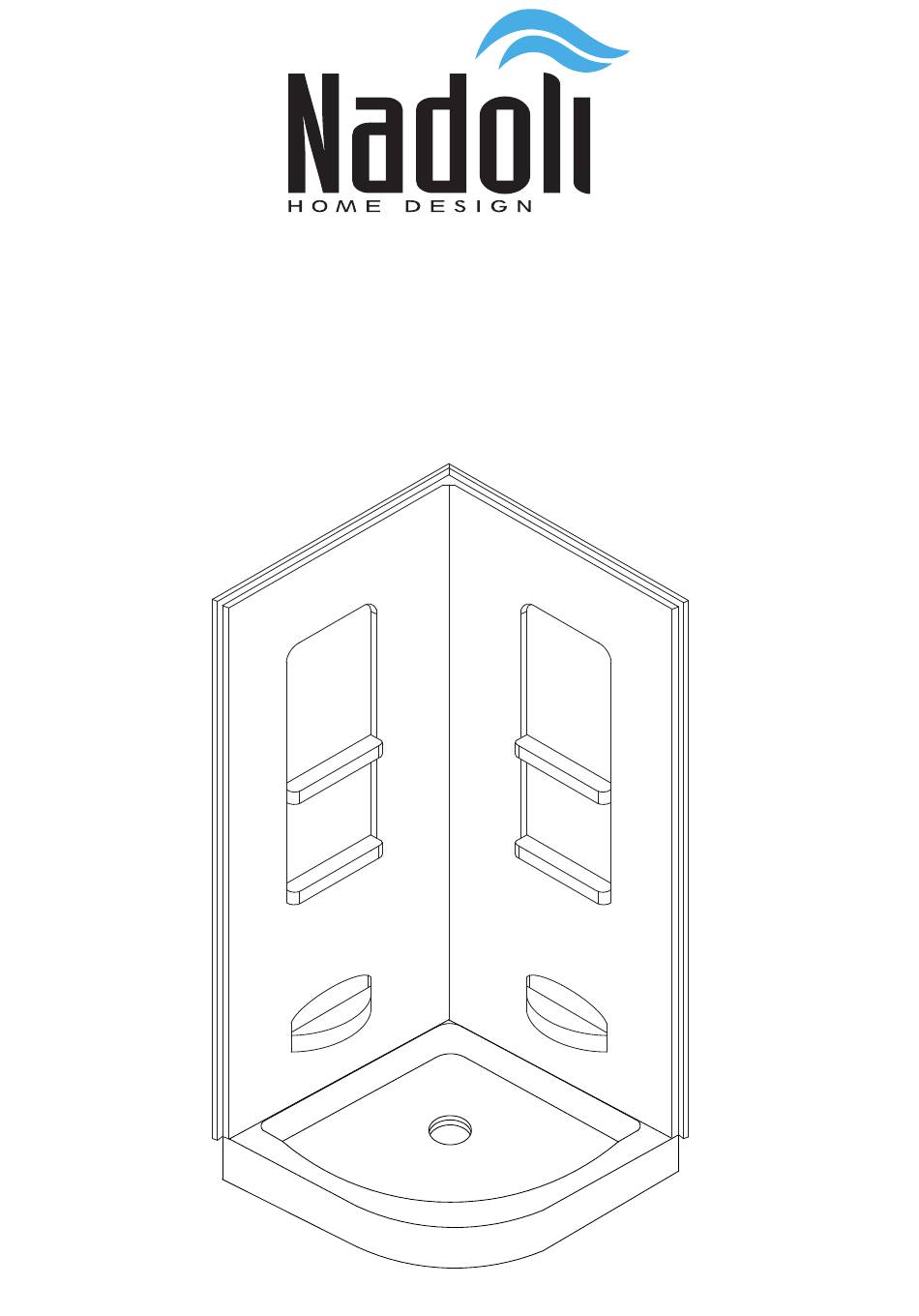

- Page 1 PN-RD3601 Installation Instruction Sheet Manuel d'installation...
- Page 2 Instructions for installing shower cabin Intruction pour l'installation de la cabine de douche...
- Page 3 Step 1 A. Fix the the back board and bottom pot, with the 2"x 4" framework. N.B. The size of the framework is for reference. The measurement should be done for the back board and bottom pot.n from Étape 1 A.
- Page 4 Step 4 Fix the drainer as what the sketch shows. Étape 4 Comme indiqué, installer l’égouttoir. Step 5 Fix the bottom pot with cement or plaster. With the cement or plaster laid on the ground, put the bottom pot on it, with appropriate press to make it leveled.
- Page 5 Step 7 Fix the basin with the screws at the bottom pot sides, with the orientation holes made on site. Étape 7 Fixer le bassin avec vis à coté de bassin. Choisir l’emplacement de trou selon la situation pratique. Step 8 Fix the back board with the orientation holes on it for fixing the faucet.
- Page 6 Step 10 Fill in the slot between the bottom pot and walls. Étape 10 Remplir les écarts entre le bassin et le paroi avec la colle de verre. silicone Step 11 Fix the back board on the walls with screws. Étape 11 Fixer avec vis la plaque de dos sur le paroi.
