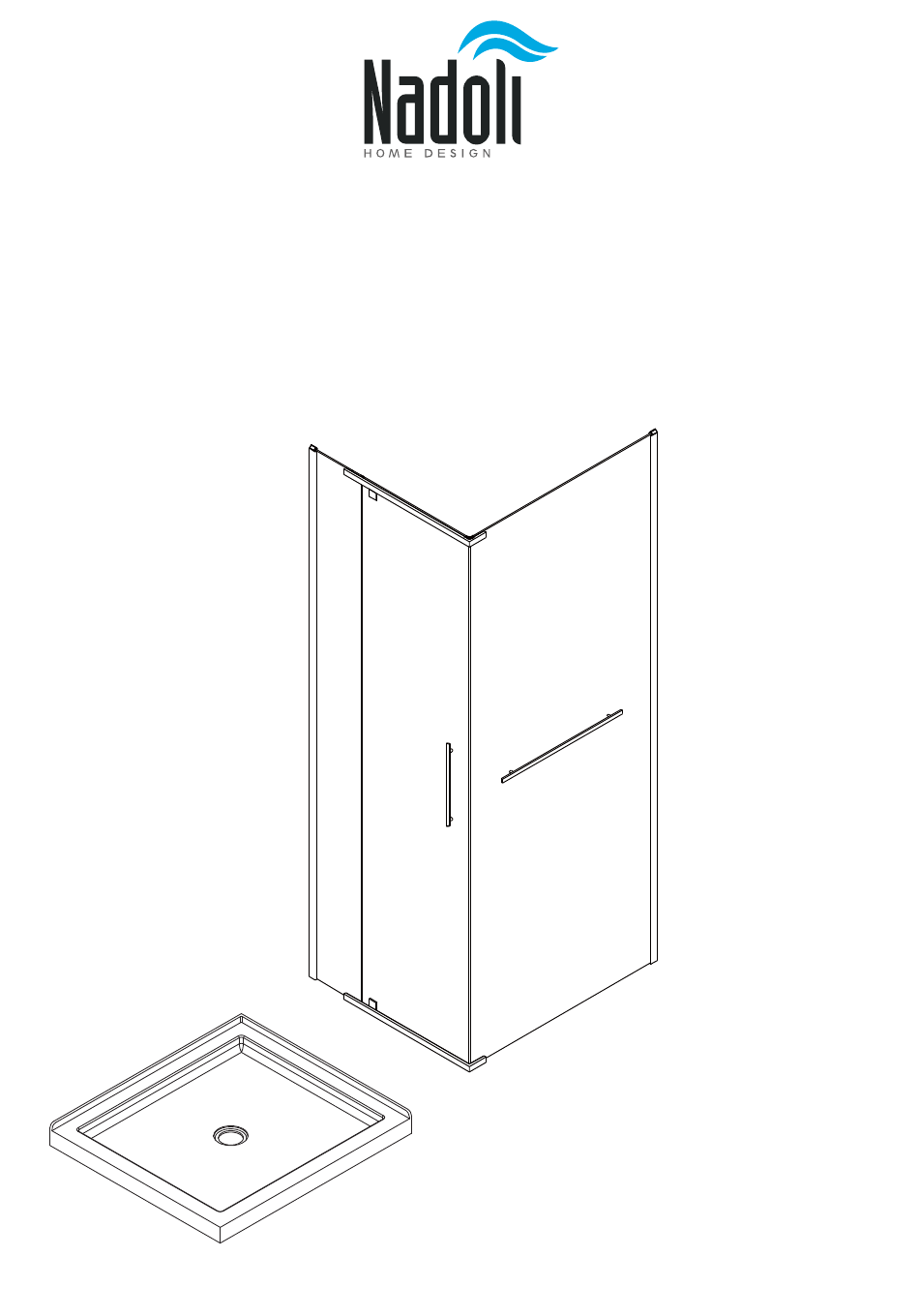

- Page 1 DO504832C-CL Instruction Manual Plan d'installation DO504832C-CL 48" x 32" Shower door with opening on 32" side Porte de douche 48" x 32" avec ouveture côté 32" Shower base (Not included) Base de douche (Non inclus) 01/04/20 Rev.A...
-
Page 2: Aftercare Instructions
General Information Informations générales Please inspect the product immediately upon receipt for transit damage, missing packs / parts or manufacturing defects. Damage reported later cannot be accepted. Please handle the product with care avoiding knocks and shocks on all sides and edges of the glass. *Prière de bien inspecter le produit dès la réception pour s’assurer qu’il n’a aucun défaut, bris ou pièces manquantes. - Page 3 48"(1219mm) 43-3/4"(1112mm) 46-1/4"(1174mm) 1. Dimension description 1. Description des dimensions a. Dimension of shower base a. Dimension de la base de douche 48 " x 32" x 2"(1219mm x 813mm x 52mm) 48" x 32" x 2"(1219mm x 813mm x 52mm) b.
- Page 4 Assembly Drawing / Dessin d'assemblage Required Parts / Dessin d'assemblage Description Description Quantity Quantity Description Description Quantité Quantité Numéro Numéro Wall jambs 2pcs 2pcs Montant du mur 8pcs 2pcs 4pcs 8pcs 2pcs 8pcs 2pcs 8pcs 4pcs 8pcs u panneau fixe 8pcs 8pcs 8pcs...
- Page 5 Installation Steps: | Étapes d'installation: Step 1 | Étape 1 a. Using a level, ensure wall jambs (1) are plumb and mark the outside edge with a pencil. Then mark the screw holes that are on the inside of the jamb.
- Page 6 Step 3 | Étape 3 Connect top and bottom rails (4) to fixed panels (2) and (3). Ensure rail cap bases (9) are placed on the glass before using rail fixing screws (16). Cap off with rail caps (10). Do not over tighten as this may damage rail cap bases (9).
- Page 7 Step 5 | Étape 5 Drill 4 equally spaced 3.2mm holes into the wall jambs (1) on the INSIDE of the door. Make sure that your drill holes are more than 30mm away from the edge of the glass, when using smallest screen size, otherwise you may break the glass.
- Page 8 Step 7 | Étape 7 Slide hinge caps (8) over both hinges (7). *Faites glisser les bouchons de charnière (8) sur les deux charnières (7). Hint: Place a small amount of silicone under each cap before installing to ensure the cap remains in position permanently.
- Page 9 Step 8 | Étape 8 Apply silicone sealer around all external joints of shower door and allow 24 hours for silicone to set. Silicone is not used on the inside of the shower screen because in time water can build up with in the wall jamb and cause leaks outside of the shower area.
- Page 10 Shower Base Installation Manual Base de douche Manuel d'installation BS-RT503248L 3-1/2˝(89mm) 2-5/8˝(66mm) Rev.Aug.23,2019...
- Page 11 ●IMPORTANT / IMPORTANT 1.Read this manual carefully and completely before proceeding. * Lisez attentivement ce manuel au complet avant de continuer. 2.It is recommended that you wear safety glasses at all times during the installation * Il est recommandé de porter des lunettes de sécurité en tout temps lors de l'installation 3.Prior to installation of base, all framing and plumbing work must be completed in accordance with this instruction sheet.For renovation work, existing shower surfaces must be removed to accommodate framing requirements.
- Page 12 INSTALLATION BASE / BASE INSTALLATION Enlever la péllicule de plastique protectrice Remove protective plastic film SUITE / CONTINUED 90° 90°...
- Page 13 SUITE / CONTINUED SUITE / CONTINUED FORET 1/8" 1/8"DRILL BIT...
- Page 14 SUITE / CONTINUED Mortar FLOOR/PLANCHER Base / Base Pellicule / Film Mor?er / Mortar FLOOR/PLANCHER SUITE / CONTINUED Gypse Gypsium Tuiles de céramique Ceramic tiles Vis (R ef. A) IMPORTANT Silicone Screw (R ef. A) Screw Base de douche Show er base Montant mural Wall stud VUE SECTIONNELLE / SIDE SECTION VIEW...
- Page 15 SUITE / CONTINUED 20~30mm 24 H ATTENTION ! Attendre 24h avant d'installer votre porte de douche, afin de permettre au mortier et à la finition de sécher complètement. WARNING ! Wait 24h before proceeding with the installa-tion of the shower door. This will ensure that the finish and mortar Céramiques Tiles...
-
