Nadoli DSR583660C-CL Manual

36" x 60" rectangular sliding shower door
Hide thumbs

Advertisement

Quick Links

Download this manual
DSR583660C-CL

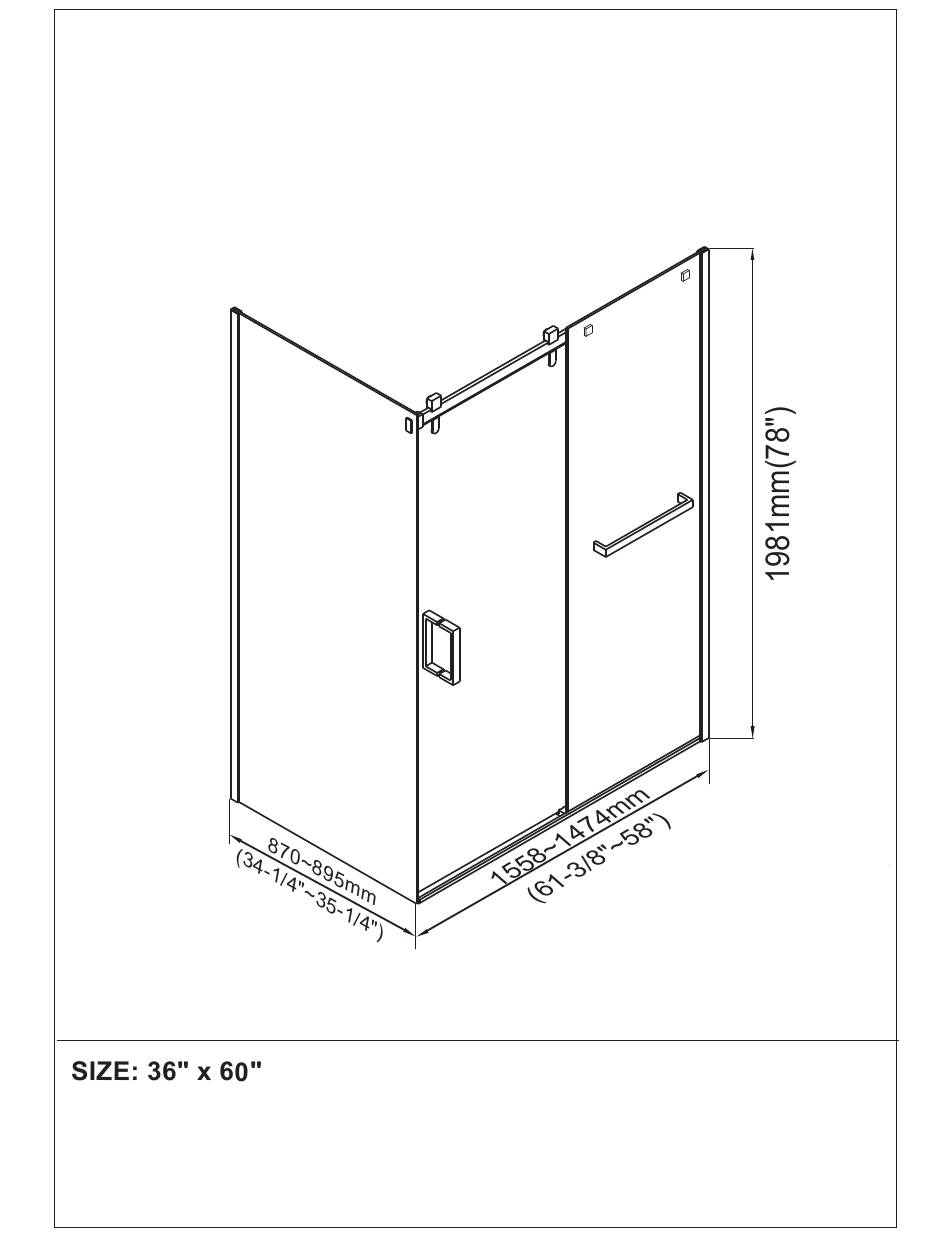

36" x 60" Rectangular Sliding Shower Door
Dimension of shower door:
(870~895) x (1558~1474) x 1981mm(H) / (34-1/4"~35-1/4") x (61-3/8"~58") x 78"(H)
Profile adjustment :+25mm/1"
Rail can adjustment :-80mm/3-1/8"

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSR583660C-CL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nadoli DSR583660C-CL

Summary of Contents for Nadoli DSR583660C-CL

  • Page 1 DSR583660C-CL 36" x 60" Rectangular Sliding Shower Door Dimension of shower door: (870~895) x (1558~1474) x 1981mm(H) / (34-1/4"~35-1/4") x (61-3/8"~58") x 78"(H) Profile adjustment :+25mm/1" Rail can adjustment :-80mm/3-1/8"...
  • Page 2 General Information Informations générales Please inspect the product immediately upon receipt for transit damage, missing packs / parts or manufacturing fault. Damage reported later cannot be accepted. Please handle the produck with care avoiding knocks and shock loading to all sides and edges of the glass. *Prière de bien inspecter le produit dès la réception pour s’assurer qu’il n’a aucun défaut, bris ou pièces manquantes.
  • Page 3 Assembly Drawing / Dessin d'assemblage [27] [26] [11] Required Parts / Dessin d'assemblage Quantity Quantity Description Description Numéro Description Quantit Numéro Description Quantit Wall posts / Montant du mur Square wall joints / Joint de mur carr Fixed panel / Panneau fixe Screws M4 x 35 / Vis M4 x 35 Wall plugs / Cheville Screws M6 x 20 / Vis M6 x 20...
  • Page 4 Installation Steps: *Étapes d'installation: Step 1 / Étape 1 Roller holes Door handle holes Trous des roulettes Trous de poignée de porte Trim if necessary Trous de poignée de porte INTERIOR SHOWER SIDE INTÉRIEUR DE LA DOUCHE INTERIOR SHOWER SIDE TOP VIEW INTÉRIEUR DE LA DOUCHE...
  • Page 5 Step 3 / Étape 3 TOP VIEW VUE DU HAUT The marking line is for reference only, pls mark according to your actural measurement. Make sure your measurements are correct and that they match the base and door before you drill the holes.
  • Page 6 Step 5 / Étape 5 cut the rail according to the actural measurment couper le rail selon la mesure réelle Step 6 / Étape 6 Cover the teeth of the pliers to avoid scratching Adjust using both sizes and the metal. combinations of clear setting Couvrir les dents de la pince blocks if necessary.
  • Page 7 Step 7 / Étape 7 3.0mm NFÉRIEUR Step 8 / Étape 8 Attach bracket onto side panel. Note that screw should be facing inside of shower. *Fixez l'attache dans le panneau de côté. Notez que les vis doivent faire face à l'intérieur de la douche.
  • Page 8 Step 9 / Étape 9 CAUTION: Cut at end which has no hole. / ATTENTION: Couper à la fin qui n'a pas de trou. cut the rail according to cut the rail according to the actual measurement the actual measurement couper le rail selon la couper le rail selon la mesure réelle...
  • Page 9 Step 11 / Étape 11 Slide square wall joint (part14) onto rail. Connect square wall joint to side panel. *Glissez le joint de mur carré (pièce 14) dans le rail. Connectez le joint de mur carré dans le paneau de côté Attach towel bar onto fixed panel.
  • Page 10 Step 13 / Étape 13 INSTALL THE DOOR PANEL INSTALLER LE PANNEAU DE PORTE SIDE VIEW VUE DU CÔTÉ INTERIOR SHOWER SIDE INTÉRIEUR DE LA DOUCHE INTERIOR SHOWER SIDE INTÉRIEUR DE LA DOUCHE Step 14 / Étape 14...
  • Page 11 Step 15 / Étape 15 [8A]Glass fixing pieces caps *Pièces pour fix couvercle Step 16 / Étape 16 Now dill 4 equally spaced 3.2mm holes into the wall jambs (1) on the INSIDE of the screen. Make sure that your drill holes are more than 20mm back from the edge of the glass, when using smallest screen size, otherwise you may break the glass.
  • Page 12 Step 16 / Étape 16 24 hours *24 heures Allow 24 hours for silicone to dry before use. *Attendez 24 heures pour que le silicone soit sec avant utilisation.
  • Page 13 Shower Base Installation Manual Base de douche Manuel d'installation BS-RT3660 2-3/8˝(60mm)
  • Page 14 IMPORTANT / IMPORTANT 1.Read this manual carefully and completely before proceeding. * Lisez attentivement ce manuel au complet avant de continuer. 2.It is recommended that you wear safety glasses at all times during the installation * Il est recommandé de porter des lunettes de sécurité en tout temps lors de l'installation 3.Prior to installation of base, all framing and plumbing work must be completed in accordance with this instruction sheet.For renovation work, existing shower surfaces must be removed to accommodate framing requirements.

  • Page 15: Base Installation

    INSTALLATION BASE / BASE INSTALLATION Pour protéger le finish de votre base de douche. To protect your shower base finish. Ref. 2 Ref. 3 Ref. 2 Ref. 2 Ref. 4 Ref. 3 Ref. 2 Ref. 3 Ref. 4 Ref. 4 Ref.
  • Page 16 INSTALLATION BASE / BASE INSTALLATION FORET 1 8 ref. : B 1 8 DRILL BIT VUE SECTIONNELLE/SIDE SECTION VIEW VUE SECTIONNELLE/SIDE SECTION VIEW SUITE / CONTINUED Silicone INSTALLATION ENCASTREE BUILT-IN INSTALLATION INSTALLATION EN COIN CORNER INSTALLATION...
  • Page 17 INSTALLATION ALCÔVE / BUILT- IN INSTALLATION ATTENTION WARNING SUITE / CONTINUED...
  • Page 18 SUITE / CONTINUED FORET 1/8" 1/8" DRILL BIT...
  • Page 19 SUITE / CONTINUED...
  • Page 20 SUITE / CONTINUED Panneau de fibro ciment Fibro ciment panel...

  • Page 21: Garantie Limitée

    À qui la garantie s’applique-t-elle? NADOLI offre une garantie limitée de 10 ans sur les bases et portes de douche, à partir de la date d’achat, au premier acheteur, tant et aussi longtemps qu’il réside la propriété. La garantie est destinée à un usage résidentiel et/ou domestique.

  • Page 22: Limited Warranty

    To whom does this warranty apply? NADOLI offers a 10-year limited warranty on shower bases and doors from the date of purchase, exclusive to the first buyer as long as he/she resides in the same property. The warranty is intended for residential and/or domestic use.
