Nadoli DO503442C-CL Quick Start Manual

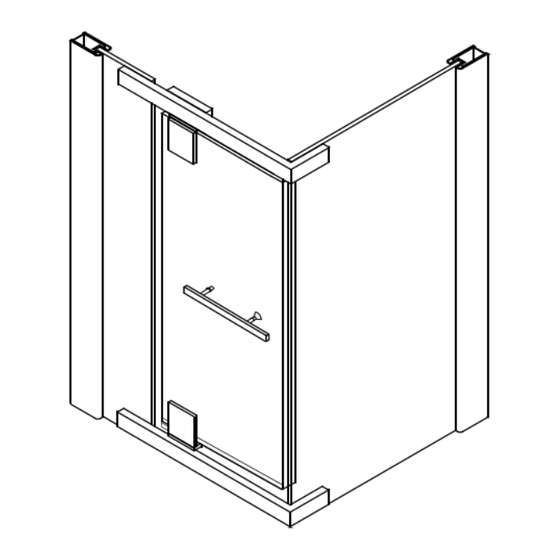

34" x 42" rectangular opening shower door
Hide thumbs

Advertisement

Quick Links

Download this manual

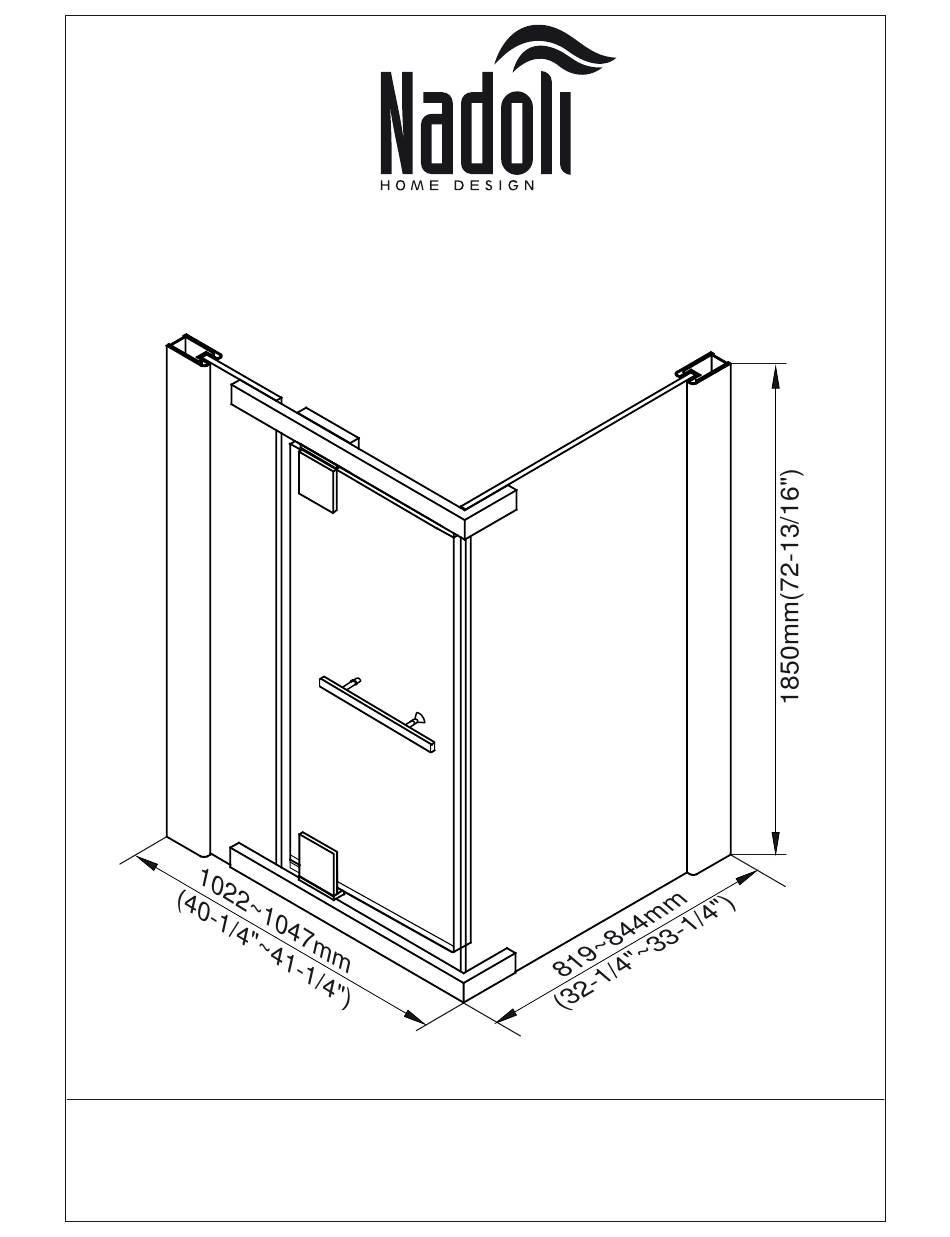

DO503442C-CL
34" x 42" Rectangular Opening Shower Door
Dimension of shower door:
(819-844) x (1022-1047) x 1850mm(H) / (32¼"-33¼") x (40¼"-41¼") x 72-13/16"(H)
Profile adjustment : +25mm/1"
Rev. April 11,2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the DO503442C-CL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nadoli DO503442C-CL

Summary of Contents for Nadoli DO503442C-CL

  • Page 1 DO503442C-CL 34" x 42" Rectangular Opening Shower Door Dimension of shower door: (819-844) x (1022-1047) x 1850mm(H) / (32¼"-33¼") x (40¼"-41¼") x 72-13/16"(H) Profile adjustment : +25mm/1" Rev. April 11,2018...
  • Page 2 General Information Informations générales Please inspect the product immediately upon receipt for transit damage, missing packs / parts or manufacturing fault. Damage reported later cannot be accepted. Please handle the produck with care avoiding knocks and shock loading to all sides and edges of the glass. *Prière de bien inspecter le produit dès la réception pour s’assurer qu’il n’a aucun défaut, bris ou pièces manquantes.
  • Page 3 Assembly Drawing / Dessin d'assemblage 2 22 Required Parts / Dessin d'assemblage Quantity Quantity Description Description Numéro Description Quantité Numéro Description Quantité Wall posts / Montant du mur Magnetic seals / Joint magnétique Fixed panel / Panneau fixe Drip seal / Joint d'étanchéité Fixed side panel / Panneau fixe de coté...
  • Page 4 Installation Steps: / Étapes d'installation: Step 1 / Étape 1 a. Using a level ensure jambs (1) are plumb the mark the outside edge with a pencil. Then mark your screw holes that are on the inside of the jamb. *En utilisant un niveau s'assurer que les montants (1) sont d'aplomb puis marquez le bord extérieur avec un crayon.
  • Page 5 Step 3 / Étape 3 Connect top and bottom rails (4) to fixed panels (2) and (3). Ensure rail cap bases (9) are placed on the glass before using rail fxing screws (16). Cap off with rail caps (10). Do not over tighten as this may damage rail cap bases (9).
  • Page 6 Now dill 4 equally spaced 3.2mm holes into the wall jambs (1) on the Step 5 / Étape 5 INSIDE of the screen. Make sure that your drill holes are more than 30mm back from the edge of the glass, when using smallest screen size, otherwise you may break the glass.
  • Page 7 Step 7 / Étape 7 Slide hinge caps (8) over both hinges (7). *Faites glisser les bouchons charnière (8) sur les deux charnières (7). Hint: Place a small amount of silicone under each cap before installing to ensure cap remain in position permanently.
  • Page 8 Shower Base Installation Manual Base de douche Manuel d'installation BS-RT3442L BS-RT3442L-BK This indentation is designed to ensure the water goes back to the shower base, towards the drain. Cette fente est conçue pour permettre à l'eau de retourner vers l'intérieur de la base de douche, vers le drain.
  • Page 9 ●IMPORTANT / IMPORTANT 1.Read this manual carefully and completely before proceeding. * Lisez attentivement ce manuel au complet avant de continuer. 2.It is recommended that you wear safety glasses at all times during the installation * Il est recommandé de porter des lunettes de sécurité en tout temps lors de l'installation 3.Prior to installation of base, all framing and plumbing work must be completed in accordance with this instruction sheet.For renovation work, existing shower surfaces must be removed to accommodate framing requirements.
  • Page 10 INSTALLATION BASE / BASE INSTALLATION Enlever la péllicule de plastique protectrice Remove protective plastic film SUITE / CONTINUED 90° 90°...
  • Page 11 SUITE / CONTINUED SUITE / CONTINUED FORET 1/8" 1/8"DRILL BIT...
  • Page 12 SUITE / CONTINUED Mortar FLOOR/PLANCHER Base / Base Pellicule / Film Mor?er / Mortar FLOOR/PLANCHER SUITE / CONTINUED Gypse Gypsium Tuiles de céramique Ceramic tiles Vis (R ef. A) IMPORTANT Silicone Screw (R ef. A) Screw Base de douche Show er base Montant mural Wall stud VUE SECTIONNELLE / SIDE SECTION VIEW...
  • Page 13 SUITE / CONTINUED 20~30mm 24 H ATTENTION ! Attendre 24h avant d'installer votre porte de douche, afin de permettre au mortier et à la finition de sécher complètement. WARNING ! Wait 24h before proceeding with the installa-tion of the shower door. This will ensure that the finish and mortar Céramiques Tiles...

  • Page 14: Limited Warranty

    To whom does this warranty apply? NADOLI offers a 10-year limited warranty on shower bases and doors from the date of purchase, exclusive to the first buyer as long as he/she resides in the same property. The warranty is intended for residential and/or domestic use.

  • Page 15: Garantie Limitée

    À qui la garantie s’applique-t-elle? NADOLI offre une garantie limitée de 10 ans sur les bases et portes de douche, à partir de la date d’achat, au premier acheteur, tant et aussi longtemps qu’il réside la propriété. La garantie est destinée à un usage résidentiel et/ou domestique.
