DSR540032 + DSR540048
DSR540032 + DSR540060
32" x 48" Rolling rectangwar sliding shower door
32" x 60" Rolling rectangwar sliding shower door
*Porte de douche rectangulaire roulante et coulissante 32"x48"
Porte de douche rectangulaire roulante et coulissante 32"x60"
Instruction Manual
*Plan D'installation
Shower base (Not included)
Base de douche (Non inclus)
Advertisement
Related Manuals for Nadoli DSR540032
Summary of Contents for Nadoli DSR540032

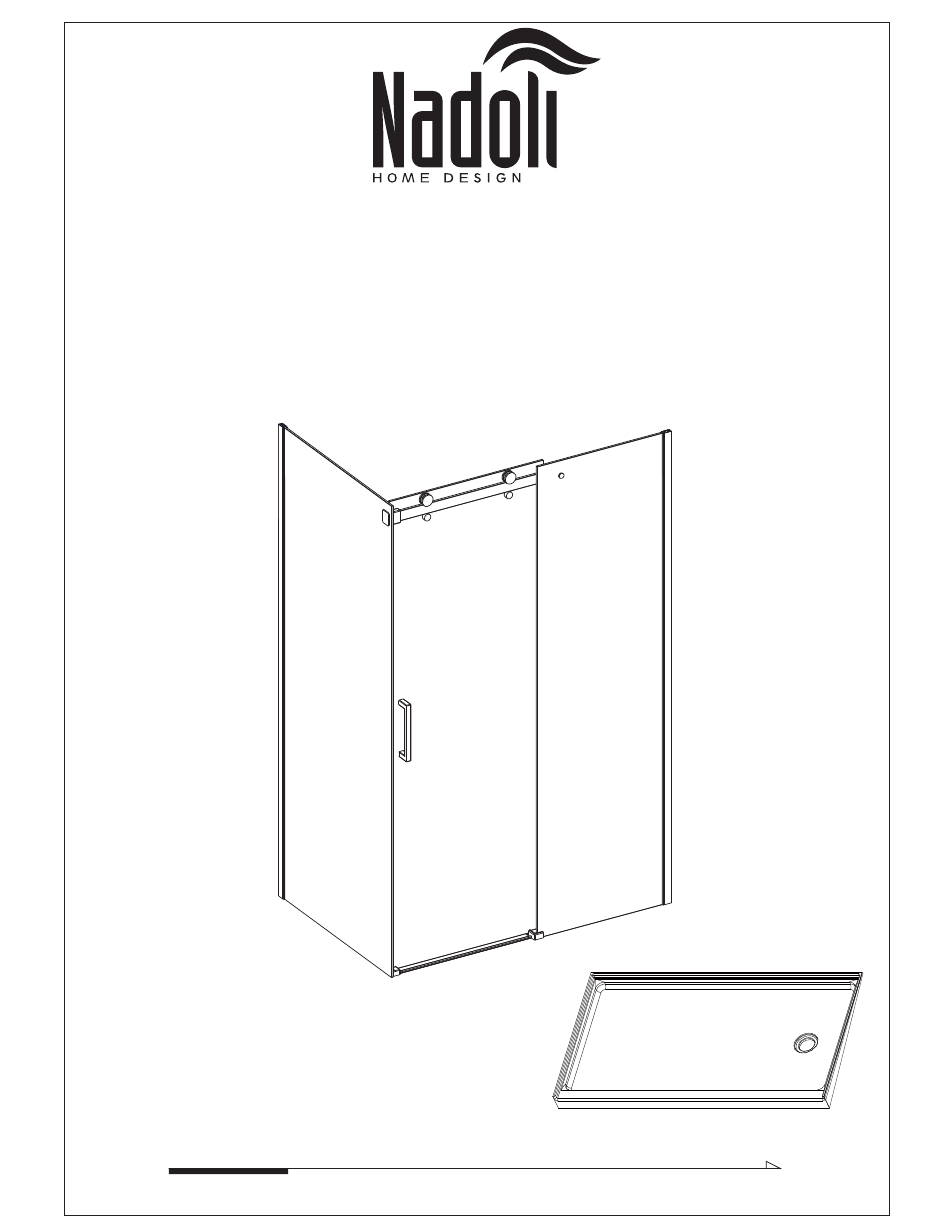

- Page 1 DSR540032 + DSR540048 Instruction Manual *Plan D'installation DSR540032 + DSR540060 32" x 48" Rolling rectangwar sliding shower door 32" x 60" Rolling rectangwar sliding shower door *Porte de douche rectangulaire roulante et coulissante 32"x48" Porte de douche rectangulaire roulante et coulissante 32"x60"...
- Page 2 General Information * Informations générales Please inspect the product immediately upon receipt for transit damage,missing packs/parts or manufacturing fault.Damage reported later cannot be accepted.Please handle the product with care avoiding knocks and shock loading to all sides and edges of the glass * Prière de bien inspecter le produit dès la réception pour s’assurer qu’il n’a aucun défaut, bris ou pièces manquantes.
- Page 3 1444 1144 1452 1152 1464 1164 1524 1219 DSR543248 DSR543260 *1. Description des dimensions 1. Dimension Description a. Dimension de la base de douche 32"x 48" ; 32"x60" a. Dimension of shower Base 32"x 48" ; 32"x60" b. Dimension de la cabine de douche 57⅝" x 30 ⁄...
- Page 4 D S R 5 4 0 0 3 2 + D S R 5 4 0 0 4 8 D S R 5 4 0 0 3 2 + D S R 5 4 0 0 6 0 ssembl Drawing *Dessin D'assemblage tem no.in exploded tem no.in exploded...
- Page 5 Installation Steps: *Étapes d'installation Step 1 / Étape 1 Screw M4x3 φ 6mm *Vis M4x35 20mm Note: this screw should face the inside of the shower. *Remarque: Cette vis doit faire face à l'intérieur de la douche. Step 2 / Étape 2 View from inside *Vue de l'intérieur...
- Page 6 Step 3 Étape 3 φ Screw 4x35 * is m4x35 fixed panel fixed panel * anneau fixe * anneau fixe fixed panel * anneau fixe fixed panel * anneau fixe Step 4 Étape 4 ock n nob Set * érouiller le roller eu de bouton *Roulette...
- Page 7 Step 5 / Étape 5 Sliding block ( 10) *Bloc coulissant ( 9) End block *Bloc d'extrémité Step 6 / Étape 6 Adjust the sliding doors using the screws located on the bottom of top roller assemblies Adjust rollers so that the sliding doors are parallel to the fixed panels and parallel to each other.
- Page 8 Step 7 Étape 7 ote: drill holes from the inside of the shower *Remar ue: percer des trous depuis l'intérieur de la douche. 1 7 m (24 )G a s k e t o in t gasket ie w fro m in s id e * oint * u e d e l'in té...
- Page 9 Shower Base Installation Manual Base de douche Manuel d'installation BS-RT503248L 3-1/2˝(89mm) 2-5/8˝(66mm)
- Page 10 IMPORTANT / IMPORTANT 1.Read this manual carefully and completely before proceeding. * Lisez attentivement ce manuel au complet avant de continuer. 2.It is recommended that you wear safety glasses at all times during the installation * Il est recommandé de porter des lunettes de sécurité en tout temps lors de l'installation 3.Prior to installation of base, all framing and plumbing work must be completed in accordance with this instruction sheet.For renovation work, existing shower surfaces must be removed to accommodate framing requirements.
- Page 11 INSTALLATION BASE / BASE INSTALLATION Enlever la péllicule de plastique protectrice Remove protective plastic film SUITE / CONTINUED 90° 90°...
- Page 12 SUITE / CONTINUED SUITE / CONTINUED FORET 1/8" 1 8 DRILL BIT...
- Page 13 SUITE / CONTINUED Mortar FLOOR/PLANCHER Base / Base Pellicule / Film Mor?er / Mortar FLOOR/PLANCHER SUITE / CONTINUED IMPORTANT VUE SECTIONNELLE / SIDE SECTION VIEW...
- Page 14 SUITE / CONTINUED 20~30mm ATTENTION ! Attendre 24h avant d'installer votre porte de douche, afin de permettre au mortier et à la finition de sécher complètement. WARNING ! Wait 24h before proceeding with the installa-tion of the shower door. This will ensure that the finish and mortar Céramiques Tiles...
-
Page 15: Garantie
GARANTIE Votre base de douche Bain Dépôt est garantie contre tout défauts de fabrication à partir de la date de la livraison. Cette garantie de un (1) an couvre la structure de fibre de verre ( 1 an ) et la finition d’acrylique ( 1 an ). Cette garantie s’adresse seulement au propriétaire original. -
Page 16: Warranty
WARRANTY Your Bath Depot shower base is guaranteed against any manufacturing defect from the date of delivery. This guarantee covers the fiberglass structure for a duration of one (1) year, the acrylic finish for one (1) year. This guarantee applies to the original owner. It covers parts for the first year. This guarantee does not cover travel expenses or installation fees, nor does it cover desinstallation fees of transportation.
